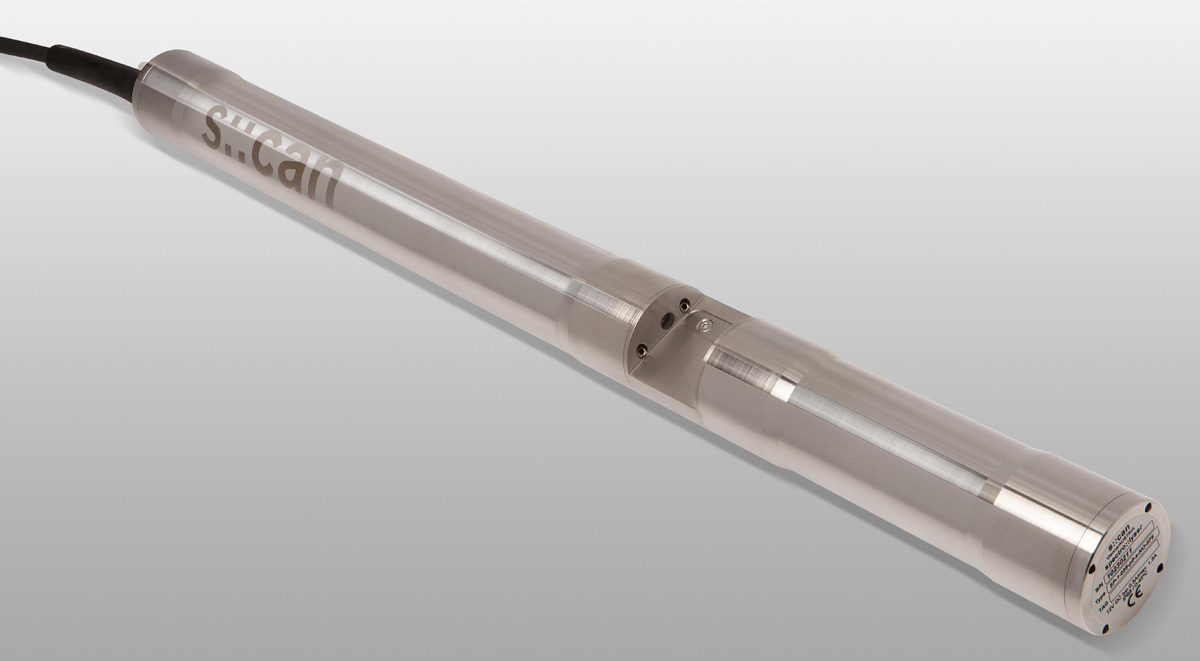

spectrometer UvVis lying on its side

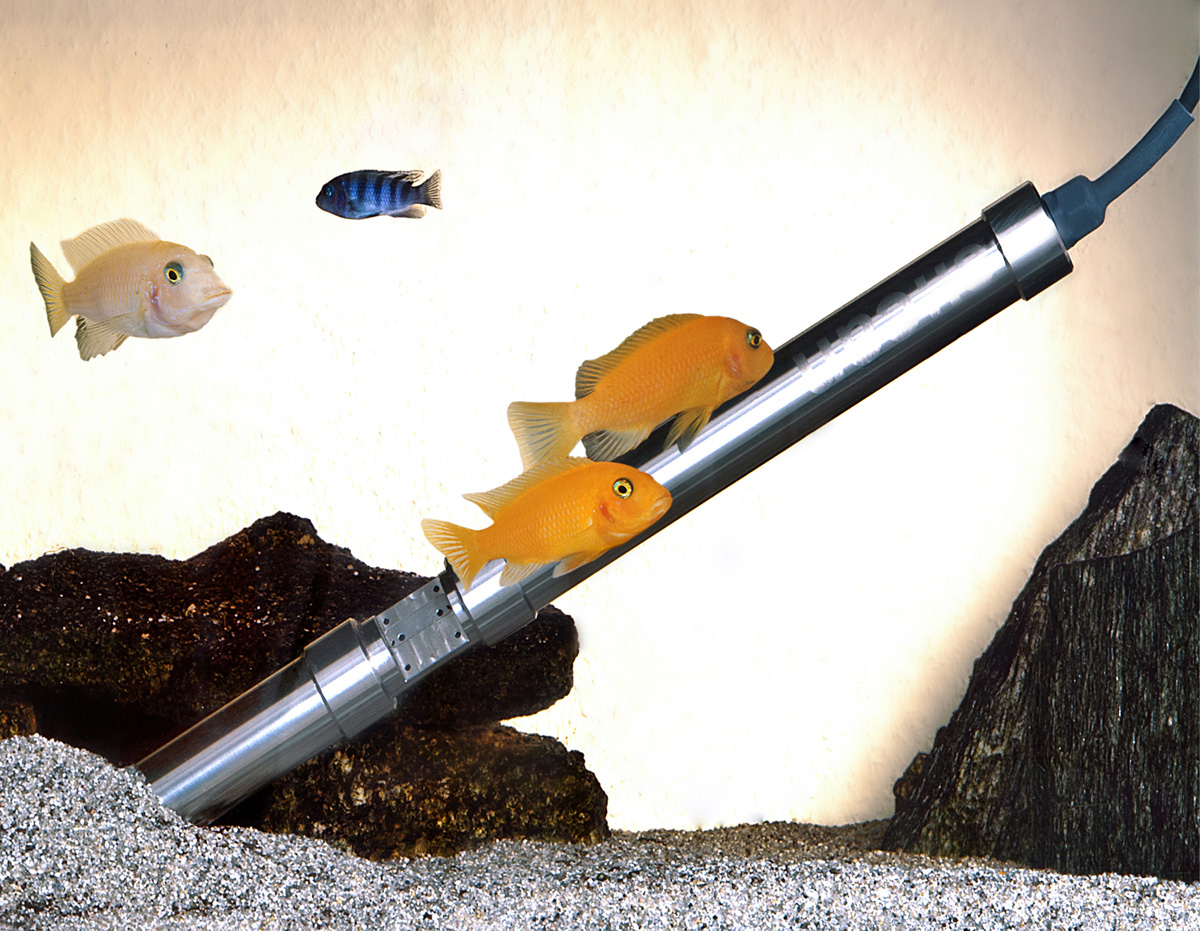

spectrometer in aquarium spectro::lyser
Close up of spectrometer window length spectro::lyser
Spectrometer with rucksack auto cleaning inline.

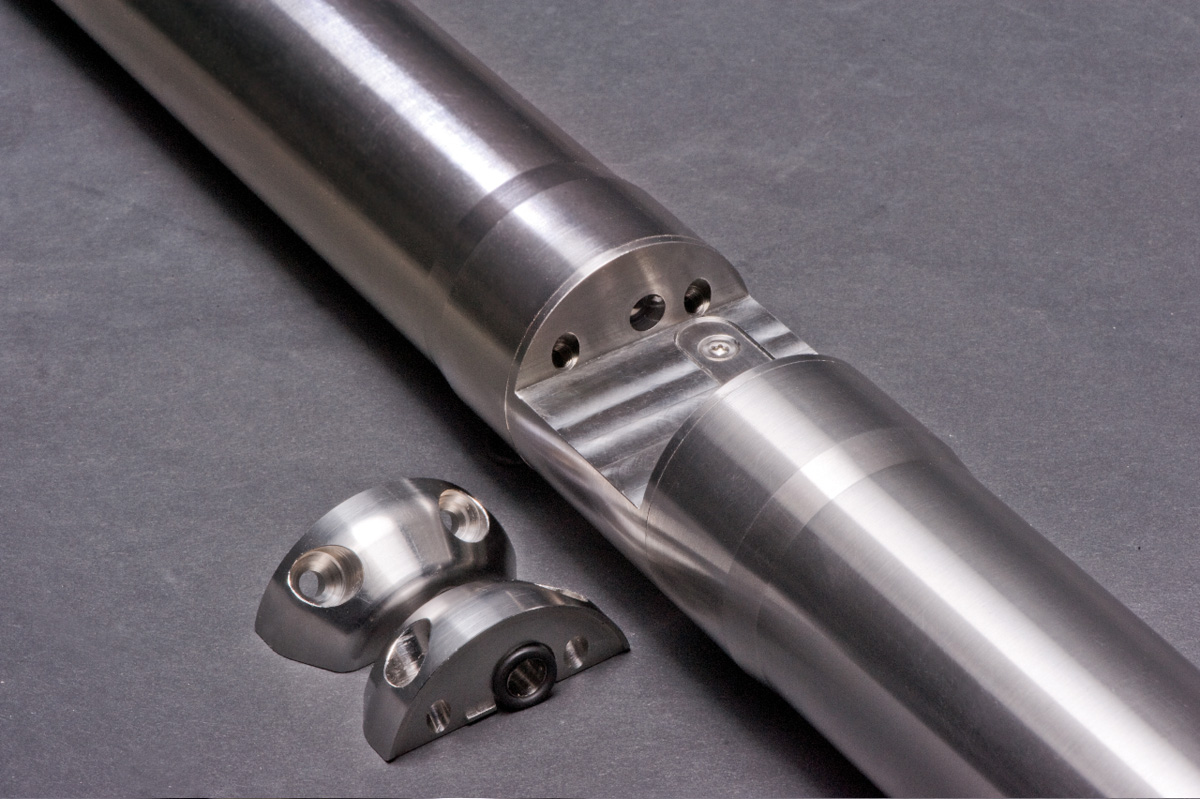

insert for UvVis to shorten path length spectro::lyser
UV-VIS Spectrometer V2 spectro::lyser

UV-VIS Spectrometer V2 | spectro::lyser

UV-Vis Spectrometer – Overview

The spectro::lyser™ measures the entire absorption spectrum and is used by many drinking water providers all over the world as a pivotal component in their raw water monitoring. The spectro::lyser™ can measure and analyse the absorption spectrum in its entirety with 256 different wavelengths, allowing detection of a multitude of organic substances. Depending on the application and individual selection it can measure: NO2-N, TSS (est), turbidity (est) NO3-N, COD, BOD, TOC, UV254, BTX, fingerprints and spectral alarms, temperature and pressure.

UV-VIS Spectrometer – Features

  • s::can plug & measure
  • measuring principle: UV-Vis spectrometry over the total range (200-750 nm or 200-390 nm)
  • optical path lengths available to increase accuracy 100mm, 35mm, 5 mm, 2 mm, 1 mm or 0.5 mm possible
  • multi-parameter probe with adjustable open path length
  • ideal for surface water, groundwater, drinking water and wastewater
  • long-term stability
  • virtually maintenance-free in operation
  • factory pre-calibrated, local multi-point calibration possible
  • automatic cleaning with compressed air or brush/ruck::sack
  • mounting and measurement directly in the media (InSitu) or in a flow cell (monitoring station)
  • operation via s::can terminals & s::can software
  • recommended by and compliant with public authorities and international agencies such as Chinese EPA, US EPA and CPCB
SKU: spectro::lyser Categories: , , , , , , , , , , , Tags: , , , , , , , , ,

Description

UV-VIS Spectrometer V2 | spectro::lyser

Technical Specifications

measuring principle UV-Vis spectrometry 190 – 750 nm
UV spectrometry 190 – 390 nm
measuring principle detail xenon flash lamp, 256 photo diodes
automatic compensation instrument two beam measurement, complete spectrum
automatic compensation cross sensitivities turbidity / solids / organic substances
precalibrated ex-works all parameters
accuracy standard solution (>1 mg/l) NO3-N: +/- 2% +1/OPL[mg/l]* COD-KHP: +/-2% +10/OPL[mg/l]*
(* OPL optical pathlength in mm)
access to raw signals access to spectral information
reference standard distilled water
onboard memory 656 KB
integrated temperature sensor -10 … 50 °C
resolution temperature sensor 0.1 °C
integrated pressure sensor (optional) 0 … 1,2/2/11 bar
resolution pressure sensor 1:1000 of measuring range
integration via con::cube
con::lyte
con::nect
power supply 11 – 15 VDC
power consumption (typical) 4.2 W
power consumption (max.) 20 W
interface to s::can terminals MIL connector (IP68), RS485
interface to third party terminals con::nect incl. gateway modbusRTU
cable length 7.5 m fixed cable (-075) or 1 m fixed cable (-010)
cable type PU jacket
housing material stainless steel 1.4404
window material optical path length 15 … 0.5 mm: sapphire
optional:
optical path length 100 … 5 mm: fused silica (UV-grade)
weight (min.) 3.4 kg (incl. cable)
dimensions (Ø x l) optical path length 100 mm:
44 x 612 mm / 656 mm
optical path length 35 … 0.5 mm: 44 x 547 mm / 591 mm
operating temperature 0 … 45 °C
storage temperature -10 … 50 °C
operating pressure 0 … 3 bar
high pressure specification
(optional)		 10 bar
explosion proof specification
(optional)		 RL 94/9EG, 2014/34/EU, TÜV-A16 ATEX 3001Q
installation / mounting submersed or in a flow cell
flow velocity 3 m/s (max.)
mechanical stability 30 Nm
ingress protection class IP68
automatic cleaning media: compressed air
permissible pressure: 3 … 6 bar
air volume: 7 … 20 l per
cleaning duration: 1 … 5 sec. per cleaning
cleaning interval: every 1st to 10th measuring interval
delay: 10 – 30 sec.
conformity – EMC EN 61326-1, EN 61326-2-3
conformity – safety EN 61010-1
extended warranty (optional) 3 years

WASTEWATER RANGES

municipal WWTP aeration
concentration ranges and sensor/probe type for this application
TSS
[mg/l]		 TSS est
[mg/l]		 NO3-N
[mg/l]		 NO2-N
[mg/l]		 COD f
[mg/l]		 UV254
[Abs/m]		 UV254 f
[Abs/m]		 part number
spectro::lyser UV
(TSS est, NO3-N, CODf, UV254, NO2-N)		 min. 0 0 0 0 0 Sp2-001-p0-sNO-010 / -075
(incl. Global Calibration l2)
max. 6000 100 500 1200 2500
spectro::lyser UV-Vis
(TSS, NO3-N, CODf, UV254, UV254f)		 min. 0 0 0 0 0 Sp1-001-p0-sNO-010 / -075
(incl. Gobal Calibration l1)
max. 15000 100 1200 2500 2000
municipal WWTP effluent
concentration ranges and sensor/probe type for this application
TSS
[mg/l]		 TSS est
[mg/l]		 NO3-N
[mg/l]		 NO2-N
[mg/l]		 COD
[mg/l]		 COD f
[mg/l]		 UV254
[Abs/m]		 UV254 f
[Abs/m]		 part number
spectro::lyser UV
(TSS est, NO3-N, COD, UV254, NO2)		 min. 0 0 0 0 0 Sp2-005-p0-sNO-010 / -075
(incl. Global Calibration e2)
max. 300 45 20 500 500
spectro::lyser UV-Vis
(TSS, NO3-N, COD, CODf, UV254, UV254f)		 min. 0 0 0 0 0 0 Sp1-005-p0-sNO-010 / -075
(incl. Global Calibration e1)
max. 600 45 500 300 500 400
paper mill WWTP effluent
concentration ranges and sensor/probe type for this application
TSS
[mg/l]		 NO3-N
[mg/l]		 COD
[mg/l]		 COD f
[mg/l]		 UV254
[Abs/m]		 UV254 f
[Abs/m]		 part number
spectro::lyser UV-Vis
(TSS, NO3-N, COD, CODf, UV254, UV254f)		 min. 0 0 0 0 0 0 Sp1-002-p0-sNO-010 / -075
(incl. Global Calibration q1)
max. 1000 10 350 350 1250 1000
brewery WWTP influent
concentration ranges and sensor/probe type for this application
TSS
[mg/l]		 COD
[mg/l]		 UV254
[Abs/m]		 UV254 f
[Abs/m]		 part number
spectro::lyser UV-Vis
(TSS, COD, UV254, UV254f)		 min. 0 0 0 0 Sp1-002-p0-sNO-010 / -075
(incl. Global Calibration b1)
max. 5000 45000 1250 1000
municipal WWTP influent & sewer
concentration ranges and sensor/probe type for this application
TSS
[mg/l]		 NO3-N
[mg/l]		 COD
[mg/l]		 COD f
[mg/l]		 BOD
[mg/l]		 UV254
[Abs/m]		 UV254 f
[Abs/m]		 HS
[mg/l]		 part number
spectro::lyser UV-Vis
(TSS, NO3-N, COD, BOD, UV254, UV254f)		 min. 0 0 0 0 0 0 Sp1-002-p0-sEX-010 / -075
(incl. Global Calibration i3)
max. 3000 40 3750 2000 1250 1000
spectro::lyser UV-Vis
(TSS, NO3-N, COD, CODf, UV254, UV254f)		 min. 0 0 0 0 0 0 Sp1-002-p0-sNO-010 / -075
(incl. Global Calibration i1)
max. 3000 40 3750 1250 1250 1000
spectro::lyser UV-Vis
(TSS, NO3-N, COD, HS-, UV254, UV254f)		 min. 0 0 0 0 0 0 Sp1-002-p0-sNO-010 / -075
(incl. Global Calibration i5)
max. 3000 40 3750 1250 1000 25
dairy WWTP influent
concentration ranges and sensor/probe type for this application
TSS
[mg/l]		 NO3-N
[mg/l]		 COD
[mg/l]		 COD f
[mg/l]		 UV254
[Abs/m]		 UV254 f
[Abs/m]		 part number
spectro::lyser UV-Vis
(TSS, NO3-N, COD, CODf, UV254, UV254f)		 min. 0 0 0 0 0 0 Sp1-001-p0-sNO-010 / -075
(incl. Global Calibration m1)
max. 6000 80 12500 6000 2500 2000
paper mill WWTP influent
concentration ranges and sensor/probe type for this application
TSS
[mg/l]		 COD
[mg/l]		 COD f
[mg/l]		 UV254
[Abs/m]		 UV254 f
[Abs/m]		 part number
spectro::lyser UV-Vis
(TSS, COD, CODf, UV254, UV254f)		 min. 0 0 0 0 0 Sp1-002-p0-sNO-010 / -075
(incl. Global Calibration p1)
max. 3000 5000 4250 1250 1000

DRINKING WATER RANGES

ground water
concentration ranges and sensor/probe type for this application
turbidity [NTU/FTU] turbidity est [NTU/FTU] NO3-N[mg/l] NO2-N[mg/l] TOC[mg/l] DOC[mg/l] UV254[Abs/m] UV254 f[Abs/m] color (app) [Hazen] color (tru) [Hazen] H2S[mg/l] part number
spectro::lyser UV-
(turbidity est,
NO3-N, TOC,
UV254, NO2-N)		 min. 0 0 0 0 0 Sp2-035-p0-sNO-010 / -075(incl. Global Calibration g2)
max. 170 20 5 20 70
spectro::lyser UV-Vis(turbidity,
NO3-N, TOC,
DOC, H2S)		 min. 0 0 0 0 0 Sp1-035-p0-sNO-010 / -075(incl. Global Calibration g5)
max. 170 20 20 15 20
spectro::lyser UV-Vis(turbidity,
NO3-N, TOC,
DOC, UV254,
hazen)		 min. 0 0 0 0 0 0 0 Sp1-035-p0-sNO-010 / -075(incl. Global Calibration g7)
max. 170 20 20 15 70 300 200
spectro::lyser UV-Vis(turbidity,
NO3-N, TOC,
DOC, UV254, UV254f)		 min. 0 0 0 0 0 0 Sp1-035-p0-sNO-010 / -075(incl. Global Calibration g1)
max. 170 20 20 15 70 55
surface water
concentration ranges and sensor/probe type for this application
turbidity
[NTU/FTU]		 turbidity est
[NTU/FTU]		 NO3-N
[mg/l]		 NO2-N
[mg/l]		 TOC
[mg/l]		 DOC
[mg/l]		 UV254
[Abs/m]		 UV254 f
[Abs/m]		 colour (app)
[Hazen]		 colour (tru)
[Hazen]		 part number
spectro::lyser? UV
(turbidity est, NO3-N, TOC, UV254, NO2)		 min. 0 0 0 0 0 Sp2-035-p0-sNO-010/-075
(incl. Global Calibration r2)
max. 200 15 5 30 70
spectro::lyser? UV
(turbidity est, NO3-N, TOC, UV254, NO2)		 min. 0 0 0 0 0 Sp2-015-p0-sNO-010/-075
(incl. Global Calibration r2)
max. 465 35 15 60 165
spectro::lyser? UV
(turbidity est, NO3-N, TOC, UV254, NO2-N)		 min. 0 0 0 0 0 Sp2-005-p0-sNO-010/-075
(incl. Global Calibration r2)
max. 1400 100 40 180 500
spectro::lyser? UV-Vis
(turbidity, NO3-N, TOC, DOC, UV254,
UV254f, hazen-f, hazen-t)		 min. 0 0 0 0 0 0 0 0 Sp1-015-p0-sNO-010/-075
(incl. Global Calibration r7)
max. 465 35 60 45 165 135 1165 700
spectro::lyser? UV-Vis
(turbidity, NO3-N, TOC, DOC, UV254,
UV254f, hazen-f, hazen-t)		 min. 0 0 0 0 0 0 0 0 Sp1-005-p0-sNO-010/-075
(incl. Global Calibration r7)
max. 1400 100 180 140 500 400 3500 2100
spectro::lyser? UV-Vis
(turbidity, NO3-N, TOC, DOC, UV254,
UV254f, hazen-f, hazen-t)		 min. 0 0 0 0 0 0 0 0 Sp1-035-p0-sNO-010/-075
(incl. Global Calibration r7)
max. 200 15 30 20 70 55 500 300
Drinking water
concentration ranges and sensor/probe type for this application
turbidity
[NTU/FTU]		 turbidity est [NTU/FTU] NO3-N [mg/l] NO2-N [mg/l] TOC
[mg/l]		 DOC
[mg/l]		 UV254
[Abs/m]		 UV254 f
[Abs/m]		 CLD
[mg/l]		 color (app) [Hazen] color (tru) [Hazen] O3
[mg/l]		 part number
spectro::lyser UV
(turbidity est,
NO2-n, NO3-N,
TOC, DOC, UV254)		 min. 0 0 0 0 0 Sp2-100-p0-sNO-010/-075
(incl. Global Calibration d2)
max. 60 7 2 8 25
spectro::lyser UV-Vis
(turbidity, NO3-N,
TOC, DOC,
UV254, UV254f, CLD)		 min. 0 0 0 0 0 0 0 Sp1-100-p0-sNO-010/-075
(incl. Global Calibration d3)
max. 60 7 8 6 25 20 8
spectro::lyser UV-Vis
(turbidity, NO3-N,
TOC, DOC,
UV254, UV254f, O3)		 min. 0 0 0 0 0 0 0 Sp1-100-p0-sNO-010/-075
(incl. Global Calibration d5)
max. 60 7 8 6 25 20 9
spectro::lyser UV-Vis
(turbidity, NO3-N,
TOC, DOC,
UV254, UV254f,
hazen-f, hazen-t)		 min. 0 0 0 0 0 0 0 0 Sp1-100-p0-sNO-010/-075
(incl. Global Calibration d7)
max. 60 7 8 6 25 20 105 70
