Category: Chlorine Meters (CL)

Chlorine Meters (CL)

Chlorine meters are for measuring, monitoring or process control purposes in water treatment. Chlorination is the process of adding chlorine to drinking water to kill parasites, bacteria, and viruses. Different processes can be used to achieve safe levels of chlorine in drinking water.

  • Ammonium Probe ammo::lyser eco
    QUICK VIEW

    Ammonium Probe | ammo::lyser eco

     Price range: R88,584.00 through R121,166.00

    Ammonium Probe - Overview

    A multi-parameter probe for the online measurement of ammonium. This reliable device outclasses conventional analysers in terms of measurement stability and lifespan. Precision is guaranteed by real-time compensation of the ammonium value with temperature, pH and potassium and a high-performance reference electrode.

    ammo::lyser II eco: monitors NH4-N and temperature
    ammo::lyser III eco+pH:  pH, NH4-N and temperature
    ammo::lyser III eco+NO3-N:  NO3-N, NH4-N and temperature
    ammo::lyser III eco+Cl-: Chloride, NH4-N and temperature
    ammo::lyser IV eco+pH+NO3-N: pH,  NO3-N, NH4-N and temperature
    ammo::lyser IV eco+pH+Cl-: pH, chloride, NH4-N and temperature

    Ammonium Probe - Features

    • s::can plug & measure
    • measuring principle: ISE (ion-selective electrodes)
    • optional potassium compensation
    • multi-parameter probe
    • long-term stability
    • factory calibrated
    • automatic cleaning with compressed air
    • unique, non-porous / non-leaking reference electrode
    • ISE refurbishment
    • easy & quick mounting and measurement
    • mount directly in the media (InSitu) or in flow cell (monitoring station)
    • operation via s::can terminals & s::can software
    • automatic temperature compensation
    • pH compensation possible
    • ideal for surface water, groundwater, drinking water, and wastewater
    • minimal maintenance
    • lifetime of ISE: typically 6 months (for applications <1mg/l NH4-N), resp. 1 to 2 years (for applications >1mg/l NH4-N)

    Drinking Water

    Waste Water

    Select options

  •  1
    Chlorine Analyzer 4630
    QUICK VIEW

    Chlorine Analyzer | 4630

     R126,188.00

    Chlorine Analyzer - Overview

    The Chlorine Analyzer is an integrated all-in-one system designed to measure free chlorine. It has a pH sensor that is used to accurately measure free chlorine in applications that have varying pH values (±0.20 pH units).  Because free chlorine concentration is pH-dependent, the Chemical Guard feature interrupts/disables the relay that is assigned to the oxidant chemical (such as sodium hydrochloride) until the pH of the application is corrected. The 4630 series also comes complete with a flow switch that will disable the mechanical relays to the dosing pumps when the system is off or the flow is interrupted to the flow cell. The unique integrated clear flow cell accommodates the free chlorine and pH electrode, flow regulator, filter, and variable area flow indicator in one compact unit. An integrated flow regulator with a removable filter accepts inlet pressures of 1 to 8 bar (15 to 120 psi) while maintaining constant flow and minimal pressure to the sensors. Water flows vertically into the sensor tip eliminating bubble entrapment. The flow cell is designed to maintain a minimum amount of water to ensure sensors stay submerged, even when the system and flow is turned off. The 4630 Free Chlorine Analyzer System comes complete with everything needed to support chlorine monitoring for 1 full year of operation. Panel design allows quick and easy installation and comes complete with four 4 to 20 mA outputs, a flow switch with relay interrupt, four binary inputs, and two mechanical relays.

    Chlorine Analyzer - Features

    • EPA 334.0 Compliant
    • Reagent-free measuring
    • Chemical Guard prevents overdosing on oxidants chemicals
    • Built-in flow switch
    • Chlorine and pH electrode performance data
    • Automatic timestamp after successful calibration
    • Customer-enabled alarm feature for recalibration
    • Complete panel system allows for quick and easy installation
    • Built-in flow regulator maintains constant flow and pressure to the sensors regardless of inlet pressure
    • Automatic pH compensation

    Datasheet

    Select options

  • Free Chlorine Sensor Chlori::lyser
    QUICK VIEW

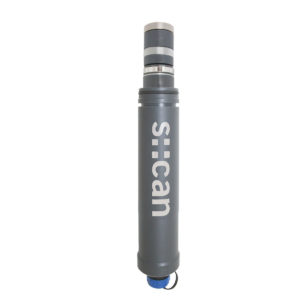

    Free Chlorine Sensor | Chlori::lyser

    Free Chlorine Sensor - Overview

    The chlori::lyser is a revolutionary sensor for monitoring free chlorine or total chlorine. Its internal buffer electrolyte allows pH-independent measurement between pH 4 to 9+, and its 3-electrode system provides extremely stable readings. These sensors were developed for use in drinking water, pool water and different types of water treatment. The usage in wastewater is possible but has to be evaluated for the specific application. These sensors have only a low dependence on fluctuations of flow. However, a constant flow of the measuring medium is recommended. High precision is ensured even at high fluctuations of pH, temperature and flow. chlori::lyser™ monitors free chlorine (Cl2 + HOCl + OCl-) or total chlorine (free chlorine + combined chlorine)

    Free Chlorine Sensor - Features

    • s::can plug & measure
    • measuring principle: amperometric (membrane covered)
    • ideal for drinking water
    • long-term stability
    • low maintenance
    • replacement of membrane only once a year
    • readings stable at high fluctuations of pH, temperature and flow
    • compensates fluctuations of pH in an unmatched way
    • pH range from 4 to 9 FCl
    • pH range from 4 to 12 TCl
    • cross sensitivities to chlorine dioxide, ozone can be compensated by using readings from spectro::lyser™
    • factory zero point pre-calibrated
    • mounting and measurement in flow cell
    • operation via s::can terminals & s::can software

    Read more
