pH Meters measure how acidic or alkaline a liquid is. This is typically used in water treatment as the pH can affect the organisms living in it. A change in pH in a river can be an indicator of increasing pollution. A high pH in water will cause a bitter taste. It will also cause water pipes and water-using appliances to become encrusted with deposits, and it minimises the effectiveness of chlorine. Low-pH water will corrode or dissolve metals and other substances.
This digital sensor is suitable for real-time pH value monitoring in industrial wastewater, water works, food processing, pharmaceutical, and other industries. It integrates electronic circuits and microprocessors inside the sensor.
This intelligent online controller is widely used in water quality detection and monitoring in sewage plants, waterworks, water stations, surface water and other industries. Its modular design offers various modules of more than 20 kinds of sensors, which can be combined at will, as well as reserved expansion functions. It can measure 4 parameters similtaneously and has 2 analogue outputs.
The Georg Fischer 2724-2726 pH and ORP Electrodes feature a patented reference electrode design and use the unique foul-proof DryLoc® connector. The large area PE reference junction and pathway are constructed to increase the total reference effectiveness and ensure long service life.
The DryLoc connector with corrosion-resistant gold-plated contacts readily connects the sensor to the mating 2760 preamplifier or the 2750 sensor electronics. The robust Ryton® threaded sensor body and choice of flat pH, bulb pH, or flat ORP sensing elements provide a broad range of chemical compatibility for a wide variety of applications.
There are two optional sensing versions, HF and LC, available. The quick temperature response is available in either a PT1000 or 3 KΩ temperature sensor and allows compatibility with all Georg Fischer pH/ORP instruments. The 2724-2726 electrodes are general-purpose sensors ideal for a wide range of applications. The sensors incorporate ¾” NPT or ISO 7-1 R¾ thread for installation into standard pipe tees. They can also be mounted directly into Georg Fischer's standard fittings.

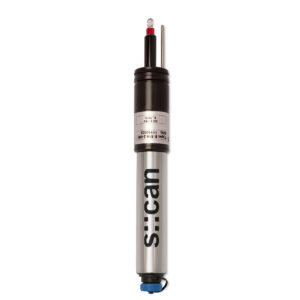

The pH::lyser is a low maintenance pH sensor for the real-time measurement of pH and temperature directly in the medium or in aby pass flow-cell. Even under tough conditions (up to 90°C) or in water with very low conductivity long term stability and precise measurement is ensured. The sensor is pre-calibrated ex works and immediately ready.
pH::lyser eco monitors pH & temperature
pH::lyser pro: high temperature and pH range
This Bench Top Water Quality Meter measures pH/ORP, Temperature, mV, EC, TDS, Salinity and Resistivity. It has 3-point automatic calibration with auto-buffer recognition and smart electrode status display. It has on-screen help messages for quick and easy use. It has memory for 1000 sets of data. The USB port can be used to retrieve memory data as a CSV file. The mains are operated with a supplied AC adapter. Comes with probe holder, display stand, E201-9 plastic body fibre junction pH electrode, temperature probe, 4/7/10 mini buffers, AC adapter and manual.

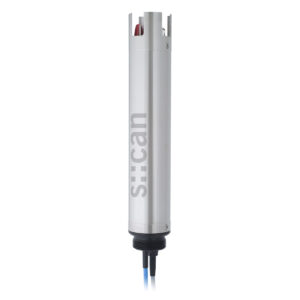

A multi-parameter probe for the online measurement of ammonium. This reliable device outclasses conventional analysers in terms of measurement stability and lifespan. Precision is guaranteed by real-time compensation of the ammonium value with temperature, pH and potassium and a high-performance reference electrode.
ammo::lyser II eco: monitors NH4-N and temperature
ammo::lyser III eco+pH: pH, NH4-N and temperature
ammo::lyser III eco+NO3-N: NO3-N, NH4-N and temperature
ammo::lyser III eco+Cl-: Chloride, NH4-N and temperature
ammo::lyser IV eco+pH+NO3-N: pH, NO3-N, NH4-N and temperature
ammo::lyser IV eco+pH+Cl-: pH, chloride, NH4-N and temperature
The Wet-Tap pH and ORP electrodes are sensors which are ideal for a wide range of applications where the installation and removal of the electrode can be performed without the need for system shutdown. The Signet 3719 pH/ORP Wet-Tap Assembly allows the installation and removal of pH or ORP electrodes under process pressure, without process shutdown during routine maintenance and calibration. Process isolation is achieved during electrode retraction with two sets of double O-ring seals on a unique and compact retraction assembly; no separate valve is required. The DryLoc connector with corrosion-resistant gold-plated contacts readily connects the sensor to the mating 2751 pH/ORP Smart Sensor Electronics or the 2760 Preamplifier. The robust polyarylsulphone (PAS) body and choice of bulb pH or flat ORP sensing elements allow a broad range of chemical compatibility for a wide range of applications. The quick temperature response is available in either a Pt1000 or 3 KΩ temperature sensor and allows compatibility with all Signet pH/ORP instruments.
This smart sensor is a solution for field-free calibration, out-of-range glass impedance, and broken glass detection, alerting the operator to probe failure or maintenance needs. It features two different outputs: a two-wire 4 to 20 mA loop output with optional EasyCal function or a digital (S3L) output that allows for longer cable lengths. The pH/ORP Electronics will allow for calibration of electrodes in a laboratory setting and installation of pre-calibrated probes in the field, reducing system downtime. Memory chip-enabled electrodes will store operational data such as minimum and maximum pH/mV readings, runtime, and minimum and maximum temperature (pH only), for troubleshooting and operational evaluation. The 2751 self-configures for pH or ORP operation via automatic recognition of the electrode type. The optional EasyCal feature allows simple push-button calibration and includes an LED indicator for visual feedback.
pH/ORP Smart Sensor - Features

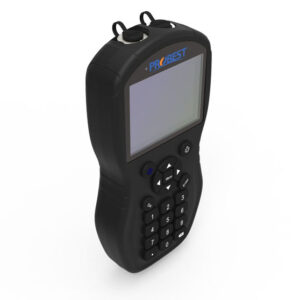

The Portable Water Analyser is paired with the pH / ORP electrode, enabling convenient, accurate, and easy measurement of pH and ORP. It is comfortable to operate because of its ergonomic design and is available with single or dual-channel configurations.
MP301 multi-parameter sensor is suitable for long-term, online monitoring. It can measure up to 7 of the following parameters simultaneously: Temperature, Depth (Pressure), DO, Chlorophyll, Blue-green algae, pH, ORP, Conductivity & Salinity & TDS, Turbidity, Ammonia nitrogen, Nitrate nitrogen, Chloride ions, and Fluoride ions. Optional accessories such as the handheld communicator, Bluetooth module and battery pack are also available for easy, portable measurement.
A multi-parameter probe for the online measurement of ammonium. The pro version has potassium compensation for more accurate results. This reliable device outclasses conventional analysers in terms of measurement stability and lifespan. Precision is guaranteed by real time compensation of the ammonium value with temperature, pH and potassium and a high performance reference electrode.
ammo::lyser™ III pro: monitors NH4-N and temperature
ammo::lyser™ IV pro+pH monitors NH4-N, temperature and pH (with potassium compensation)
ammo::lyser™ IV pro+NO3-N monitors NH4-N, temperature and NO3-N (with potassium compensation)
These high-performance sensors are ideal for a wide range of applications. The unique foul-proof DryLoc® connector with gold-plated contacts is designed specifically for use with the Signet 2751 pH/ORP Smart Sensor Electronics or the 2760 Preamplifier. These dependable and highly responsive electrodes feature a PTFE double reference junction with potassium nitrate (KNO3 ) in the front chamber which blocks various poisoning ions such as Mercury (Hg2+), Copper (CU2+) and Lead (Pb2+). It also has a large reference chamber that extends the service life. The positioning of the temperature element allows the temperature response to be quick and accurate. The electrodes are either flat or bulb-styled. The flat versions allow sediment and particles to sweep past the measurement surface, minimising risks of abrasion, breakage and coating. The bulb versions can be used for low-temperature applications or where fast response is required. Due to the specially designed chambers which keep electrolytes in place, all sensor models can be installed at any angle, even inverted. The quick temperature response is available in either a Pt 1000 or 3KΩ temperature sensor and allows compatibility with all Signet pH/ORP instruments.
MP301 multi-parameter sensor is suitable for long-term, online monitoring. It can measure up to 7 of the following parameters simultaneously: Temperature, Depth, DO, Chlorophyll, Blue-green algae, pH, ORP, Conductivity & Salinity & TDS, Turbidity, Ammonia nitrogen, Nitrate nitrogen, Chloride ions, and Fluoride ions. Optional accessories such as a Bluetooth module and battery pack are also available for easy, portable measurement.
HDC-100A Communicator: To complete the MP301 integrated multi-parameter analyser, the HDC-100A completes data reading, parameter setting and calibration of the analyser without a PC. This enables portable applications. It includes a built-in GPS receiver, Bluetooth functionality, USB interface and data storage function. Ergonomically designed for hand-held operation, it is easy to grasp in a wet environment.
The Portable Water Analyser can be paired with a variety of portable electrodes, enabling a variety of measurement parameters such as pH, ORP, Conductivity (convertible Salinity & TDS), Dissolved Oxygen (DO), Turbidity, Suspended solids, Chlorophyll, and Blue-green algae. The connected electrode type is automatically identified. Single-channel and dual-channel configurations are available. It is comfortable to operate because of its ergonomic design and allows for quick and convenient testing.
