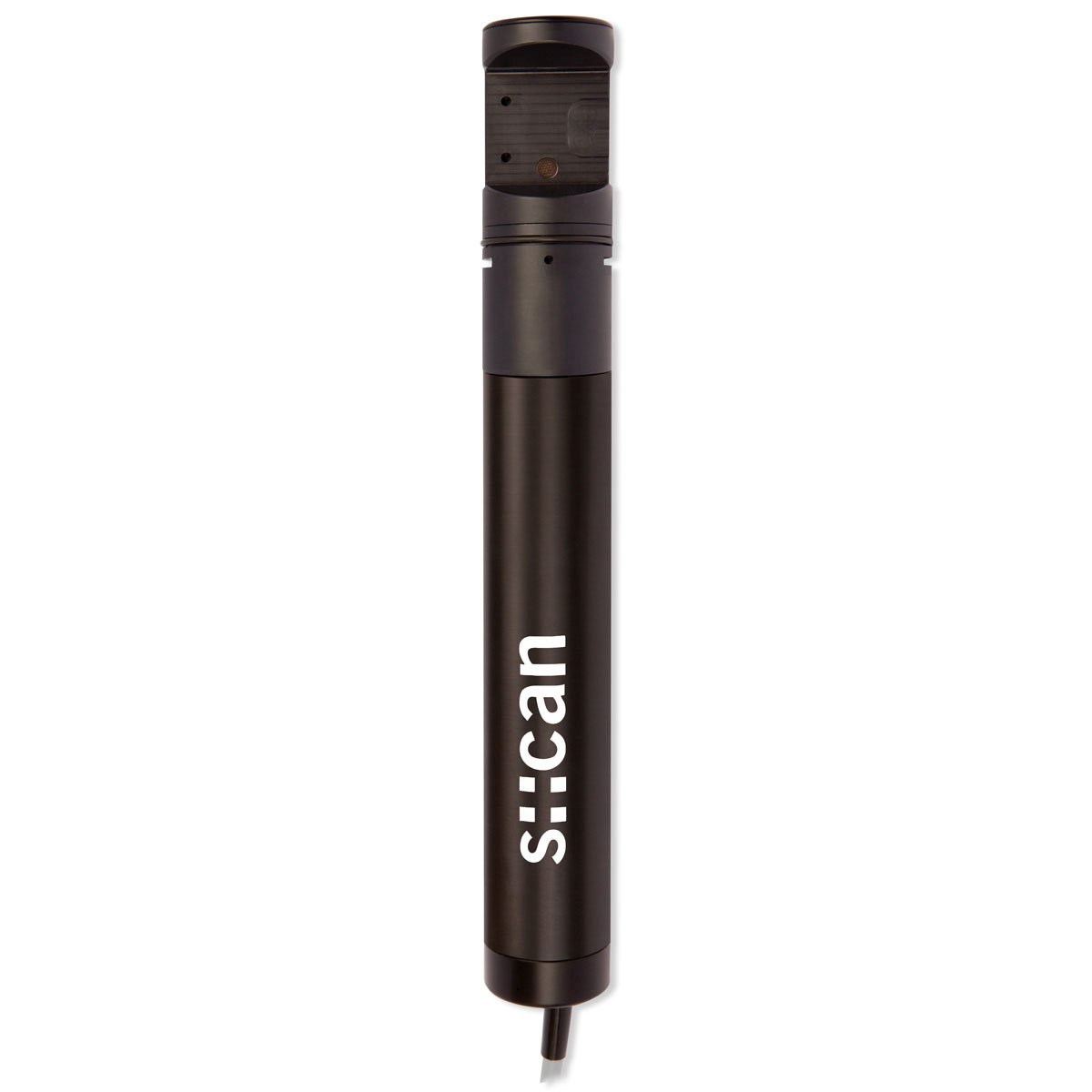

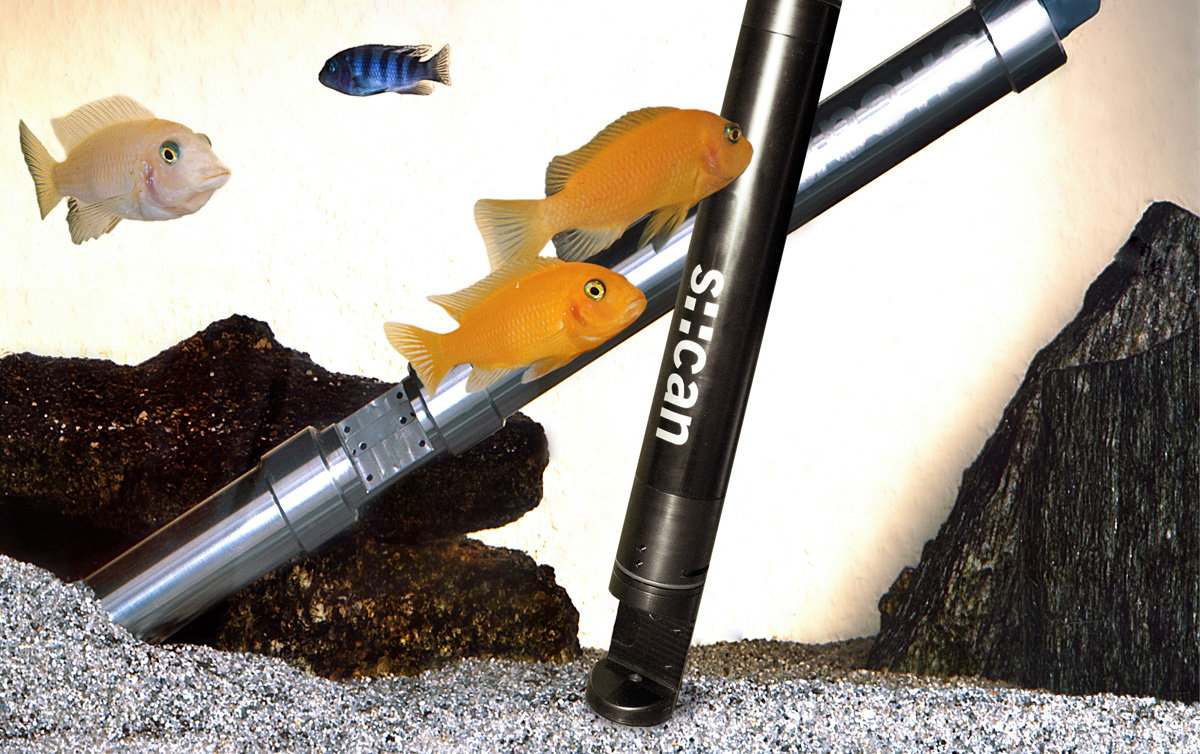

Muli-Parameter Online Photometers Probe Overview

All i::scan probes are compact multi-wavelength photometer probes, capable of high quality online measurements of light absorption with  either directly submersed in liquid media (in-situ) or in by-pass via flow cell setup. The probe can be operated also outside of the medium using a multifunctional slide. i::scan probes with a path-length of 35mm also have an additional 90 degree detector for scattered light measurements including suitable light sources. This allows measurements of turbidity according to ISO 7027 and similar to EPA 180.1

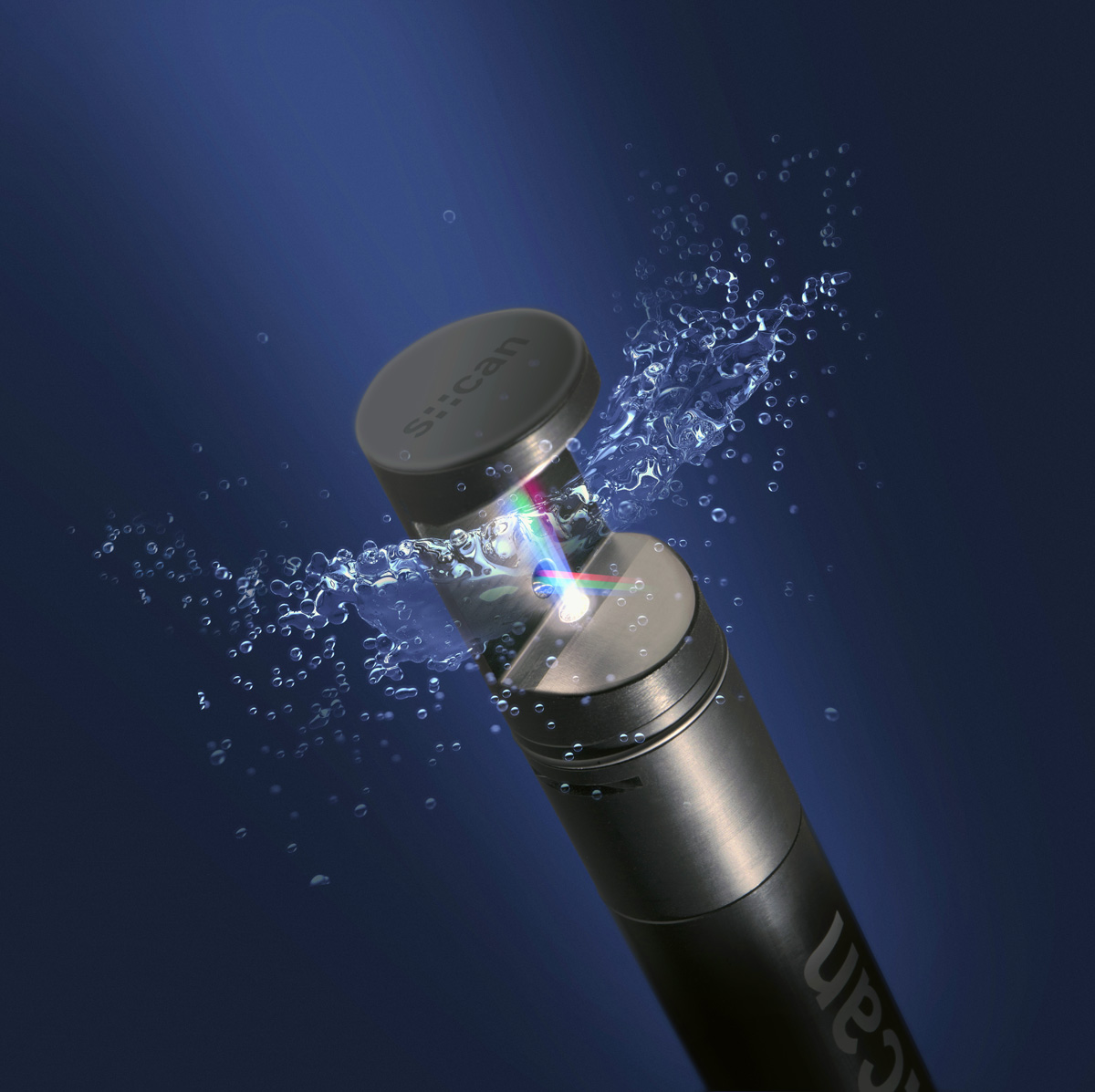

For absorption measurement the sensor works as a multi-wavelength photometer with narrow band light sources. The wavelengths have been carefully selected to best fit the intended applications. For organic parameters multiple wavelengths in the UV-A/UV-B and UV-C range are used. For colour, solids and turbidity measurements light sources in the visible and near infrared range are used.

Muli-Parameter Online Photometers Probe Features

  • s::can plug & measure
  • turbidity: measurement according to EPA 180.1 and ISO 7027, 90° scattering (35 mm path length)
  • dual-beam compensated optics
  • Economical light emitting technology
  • no consumables, no moving parts
  • special, non-fouling optical window material
  • low power consumption (less than 1 W typical)
  • optional automatic cleaning compressed air (InSitu, only for version -075 with fixed cable) or autobrush
  • multiple versions for multiple applications
  • long term stable, 100 % corrosion free
  • plug connection or fixed cable
  • 5000 hours maintenance free operation
  • mounting and measurement directly in the media (in situ) or in flow cell

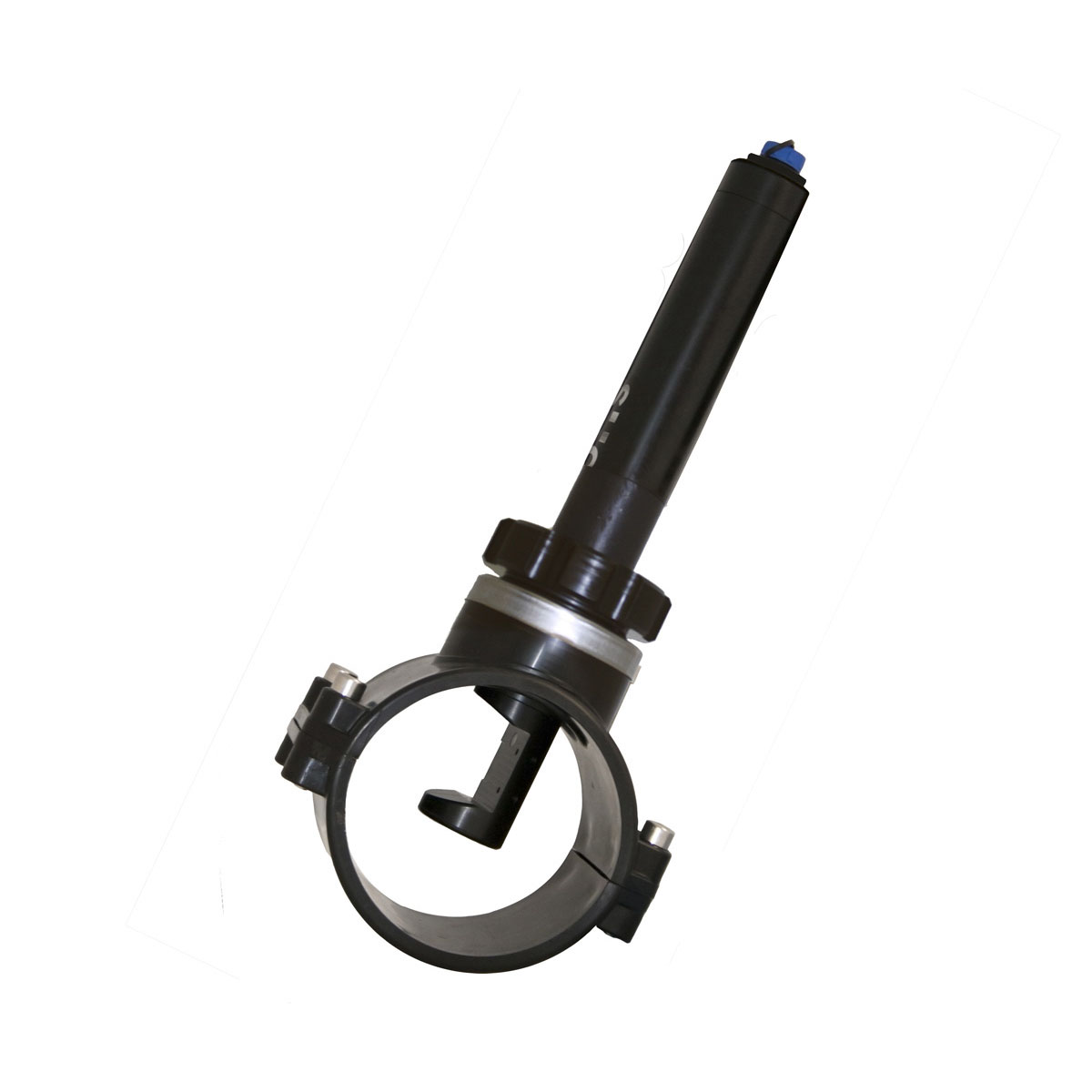

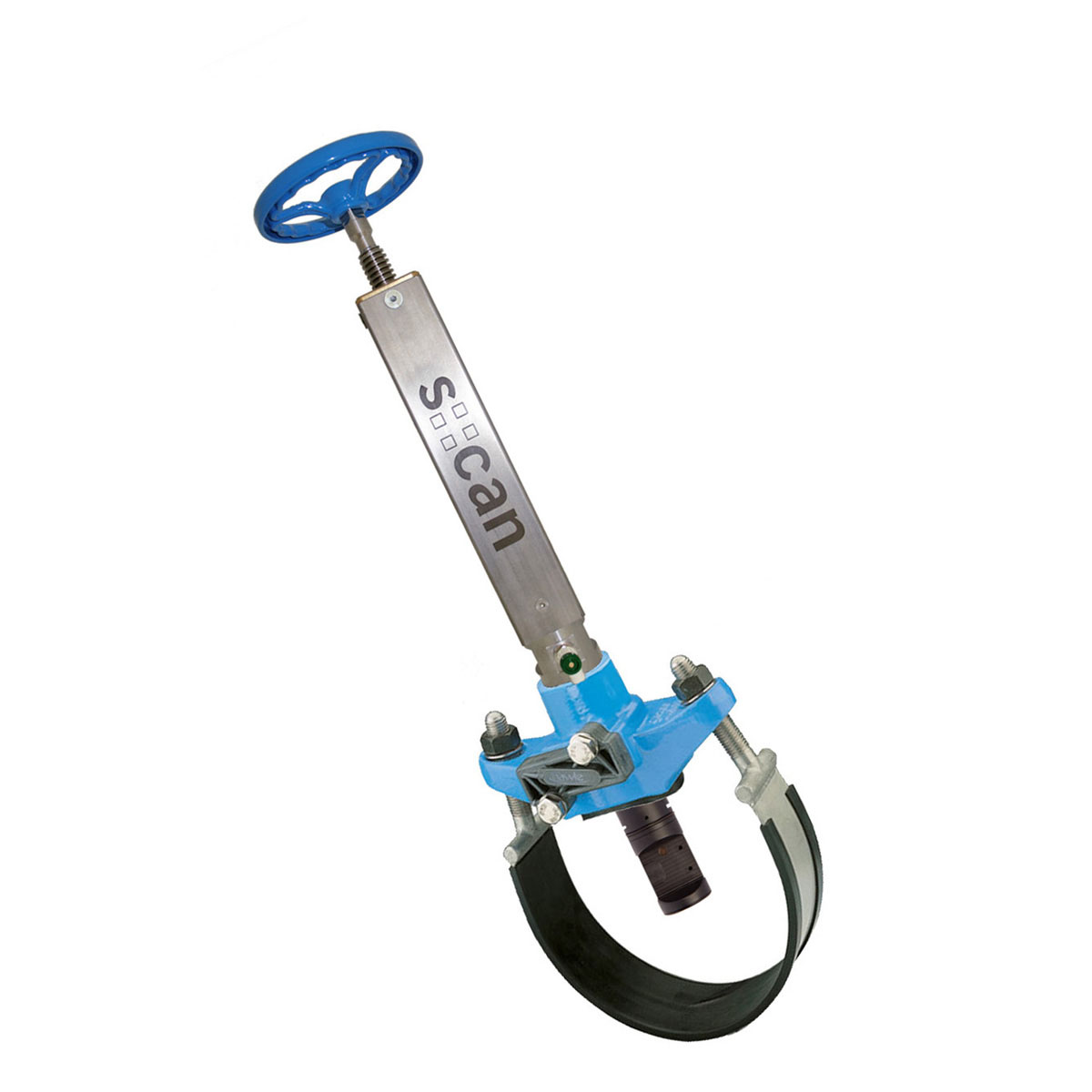

  • can be mounted directly in a mains pipe / pressure pipe
  • operation via s::can terminals & s::can Software

Description

i::scan  Photometer Technical Specification
technical specification
measuring principle 35 mm optical path length: spectrometry
combined 180° absorption and 90°
scattering turbidity: according to EPA 180.1 and ISO 7027 5 mm optical path length: absorption
resolution COD: 0.035 mg/l
color: 0.07 Hazen
UV254: 0.105 Abs/m
turbidity (35 mm): 0.001 NTU/FTU
turbidity (5 mm): 0.01 NTU/FTU
(0.1 above 1000 NTU/FTU)
color: 0.01 Hazen
UV254: 0.015 Abs/m
TOC: 0.01 mg/l
accuracy (standard solution) COD: 5 mg /l or +/- 2.5 %*
color: 7 Hazen or +/- 2.5 %*
UV254: 1 Abs/m or +/- 2.5 %* (*whichever is greater)
turbidity submersed (5 mm): 2 NTU/FTU or +/- 5 %*
turbidity in flow cell (35 mm):  0.02 NTU/FTU or +/- 2.5 %*
color: 1 Hazen or +/- 2.5 %*
TOC: 0.1 mg/l or +/- 2.5 %* UV254: 0.1 Abs/m or +/- 2.5 %* (*whichever is greater)
(*whichever is greater)
automatic compensation instrument dual-beam and 180° path
precalibrated ex-works all parameters
reference standard distilled water
onboard memory 512 MB
integrated temperature sensor -20 … 70 °C
resolution temperature sensor 0.06 °C
integration via con::cube
con::lyte con::nect
power supply 10 … 18 VDC
power consumption (typical) 20 mA @ 12V
power consumption (max.) 200 mA @ 12V
interface to s::can terminals RS485, MODBUS
cable length 7.5 m fixed cable (-075)
housing material PEEK, POM-C
weight (min.) approx. 330 g
dimensions (Ø x l) 35 mm path length: 38.5 x 325 mm 5 mm path length: 38.5 x 295 mm
operating temperature 0 … 45 °C
storage temperature -20 … 60 °C
operating pressure 0 … 6 bar
installation / mounting submersed or in a flow cell
flow velocity 3 m/s (max.)
automatic cleaning with autobrush or compressed air (only possible for version (-075) with fixed cable)
permissible pressure: 3 … 6 bar
cleaning pressure conformity – EMC 6 bar EN 61326-1
EN 61326-2-3
protection class (-075) IP68
protection class (-000)  IP67
Online Measuring of Waste Water Treatment Plant  influent
concentration ranges and sensor/probe type for this application
TSS [mg/l] COD [mg/l] COD f [mg/l] UV254 [Abs/m] UV254 f [Abs/m] color (app) [Hazen] color (tru) [Hazen] part number
i::scan_TSS+COD_eq min. 0 0 0 Y11-3-i-075
max. 1000 800 900
i::scan_TSS+COD_ min. 0 0 0 0 0 Y12-3-i-075
eq+Color max. 1000 1500 900 3500 2200
i::scan_TSS+Color min. 0 0 0 Y08-1-i-075
max. 1000 3500 2200
i::scan_TSS+UV254 min. 0 0 0 Y09-2-i-075
max. 1000 500 400
i::scan_ min. 0 0 0 0 0 Y10-2-i-075
TSS+UV254+Color max. 1000 500 400 3500 2200
Online Measuring  of Waste Water Treatment Plant effluent
concentration ranges and sensor/probe type for this application
TSS
[mg/l]
COD
[mg/l]
COD f
[mg/l]
UV254
[Abs/m]
UV254 f
[Abs/m]
UVT10 [%] color (app)
[Hazen]
color (tru)
[Hazen]
part number
i::scan_TSS+COD_eq min. 0 0 0 Y11-3-e-075
max. 500 500 300
i::scan_TSS+COD_ min. 0 0 0 0 0 Y12-3-e-075
eq+Color max. 500 500 300 3500 2200
i::scan_TSS+Color min. 0 0 0 Y08-1-e-075
max. 500 3500 2200
i::scan_TSS+UV254 min. 0 0 0 0 Y09-2-e-075
max. 500 500 400 100
i::scan_ min. 0 0 0 0 0 0 Y10-2-e-075
TSS+UV254+Color max. 500 500 400 100 3500 2200
surface water Monitoring
concentration ranges and sensor/probe type for this application
turbidity
[NTU/FTU]
TOC
[mg/l]
DOC
[mg/l]
UV254
[Abs/m]
UV254 f
[Abs/m]
UVT10 [%] color (app)
[Hazen]
color (tru)
[Hazen]
part number
i::scan_NTU/FTU min. 0 Y01-1-r-000 / -075
max. 800
i::scan_NTU/FTU+Color min. 0 0 0 Y02-1-r-000 / -075
max. 800 500 500
i::scan_NTU/FTU+UV254 min. 0 0 0 25 Y03-2-r-000 / -075
max. 800 70 70 100
i::scan_NTU/ min. 0 0 0 25 0 0 Y04-2-r-000 / -075
FTU+UV254+Color max. 800 70 70 100 500 500
i::scan_NTU/FTU+TOC_ min. 0 0 0 0 Y05-3-r-000 / -075
eq+UV254 max. 800 25 25 70
i::scan_NTU/FTU+TOC_ min. 0 0 0 0 0 0 Y06-3-r-000 / -075
eq+UV254+Color max. 800 25 25 70 500 500
i::scan_NTU/FTU min. 0 Y13-1-c-075
(5 mm path length) max. 3000
drinking water online monitoring
concentration ranges and sensor/probe type for this application
turbidity [NTU/FTU] TOC [mg/l] DOC [mg/l] UV254 [Abs/m] UV254 f [Abs/m] UVT10 [%] color (app) [Hazen] color (tru) [Hazen] part number
i::scan_NTU/FTU min. 0 Y01-1-d-000 / -075
max. 800
i::scan_NTU/FTU+Color min. 0 0 0 Y02-1-d-000 / -075
max. 800 500 500
i::scan_NTU/FTU+UV254 min. 0 0 0 25 Y03-2-d-000 / -075
max. 800 70 70 100
i::scan_NTU/ min. 0 0 0 0 0 Y04-2-d-000 / -075
FTU+UV254+Color max. 800 70 70 500 500
i::scan_NTU/FTU+TOC_ min. 0 0 0 0 Y05-3-d-000 / -075
eq+UV254 max. 800 25 25 70
i::scan_NTU/FTU+TOC_ min. 0 0 0 0 0 0 Y06-3-d-000 / -075
eq+UV254+Color max. 800 25 25 70 500 500
