Category: Water Quality & Analytical Instruments

Water Quality & Analytical Instruments

  • Con::Cube VS3

    Con::cube | Con::cube VS3

    Call for price

    Con::cube VS3 Overview

    The Con::cube VS3 has the newest processor technology, it's a compact, versatile terminal for data acquisition and station control. It has very flexible options for interfacing to SCADA or any central database systems makes the Con::cube in combination with moni::tool a powerful terminal for compact station control.

    Con::cube VS3 Features

    • s::can high-end IoT (Internet of Things) terminal based on an industrial PC, IP65
    • Widescreen color graphical display (9”) and touch screen
    • Highly intuitive use, informative visualization & easy operation: time series, optical spectra, and all events in clear text
    • Sensor and station management of up to 64 parameters: automatic cleaning, data logging, sample & calibration including history and multipoint calibration, sensor function check, user management, and easy data transfer via USB-stick
    • Low power operation with less than 3 watts (@ 15 min. measuring interval): wide range AC and DC variants available
    • IoT (Internet of Things) and M2M (Machine to Machine) connectivity: 100 Mb/s Ethernet, 300 Mb/s WLAN, and optional worldwide WCDMA 4G interface, remote control (HTTP), and data transfer into “Cloud” via FTP, SSH, and TML
    • Process interface to SCADA via Modbus RTU/TCP, SDI-12, Profibus DP, analog 0/4-20 mA, and relay outputs (state)
    • Integration of third-party sensors via analog 0/4-20 mA and digital (solid-state) inputs, Modbus RTU/TCP
    • Easily extendable & all moni::tool features available:
      • 8 slots to customize I/Os
      • moni::tool software pre-installed
      • Additional software features like online data validation and event detection optional
  • UV-Vis Spectrometer Vs3 s-can

    Online Nitrate Sensor | Nitro::lyser VS3

    Call for price

    Online Nitrate Sensor Nitro::lyser VS3 Overview

    The Online Nitrate Sensor Nitro::lyser VS3 is ideal for the measurement of nitrate concentrations and turbidity/solids concentrations too. The nitrate concentration displayed is not sensitive to cross-influences from other substance groups such as organic carbon or total solids. Applications range from (ultra) pure water in the μg/l range up to industrial wastewater in the g/l range.

    Nitro::lyser VS3 Features

    • Nitro::lyser™ II monitors 2 of the following parameters: Turbidity, TSS, TS, NO3-N and NO3
    • Measuring principle: UV-Vis spectrometry over the total range (190-750 nm)
    • Webserver onboard - IoT enabled, no user software is needed to configure the probe
    • Communicates directly with your mobile device via WLAN
    • Choose exactly the parameters you want to measure – unlimited number of parameters possible
    • 8 GB onboard memory - capacity for logging data for many years
    • Improved optical performance - revolutionary precision
    • Fast measurement interval - every 10 seconds
    • Extremely power-efficient - sleep mode for low energy consumption
    • Multiparameter probe with 1 mm, 5 mm, or 35 mm optical path length, ideal for wastewater, surface water, and drinking water
    • Long term stable and maintenance-free in operation
    • Factory precalibrated, local multi-point calibration possible
    • Automatic cleaning with compressed air or brush/ruck::sack

    Drinkwater & Surface water Datasheet
    Wastewater Datasheet

  • Ozo::lyser V3 scan

    Online Ozone Sensor | Ozo::lyser V3

    Call for price

    Online Ozone Sensor Ozo::lyser V3 Overview

    The measurement of ozone in water is what the online ozone sensor ozo::lyser V3 is optimized for. This member of the spectrometer family is optimized to determine concentrations of ozone dissolved in water online. It offers an attractive alternative to classical electrochemical ozone sensors, thanks to its very low maintenance requirement and extreme stability.

    Online Ozone Sensor Ozo::lyser V3 Features

    • ozo::lyser II monitors 2 of the following parameters: TSS, turbidity & ozone
    • Measuring principle: UV-Vis spectrometry over the total range (190-750 nm)
    • Web server onboard - IoT enabled, no user software is needed to configure the probe
    • Communicates directly with your mobile device via WLAN
    • Choose exactly the parameters you want to measure – unlimited number of parameters possible
    • 8 GB onboard memory - capacity for logging data for many years
    • Improved optical performance - revolutionary precision
    • Fast measurement interval - every 10 seconds
    • Extremely power efficient - sleep mode for low energy consumption
    • Multiparameter probe with 1 mm, 5 mm, or 35 mm optical path length, ideal for wastewater, surface water, and drinking water
    • Long term stable and maintenance-free in operation
    • Factory precalibrated, local multi-point calibration possible
    • Automatic cleaning with compressed air or brush/ruck::sack

    Drinking-Water Datasheet
    Wastewater Datasheet

  • UV-Vis Spectrometer Vs3 s-can

    Online UV-Vis Spectrometer | Spectro::lyser V3

    Call for price

    Online UV-Vis Spectrometer  Spectro::lyser V3 Overview

    The Spectro::lyser V3 is a next-generation high-performance online water quality monitoring. With the aid of extensive research on industry needs and using the latest technology, the Spectro::lyser V3 was innovatively designed. The Spectro::lyser™ UV-Vis monitors depending on the application an individual selection of TSS, TS, turbidity, color, TOC, DOC, BOD, COD, NO3-N, NO3, chloramine, HS-, O3, CLD, Chl-a, BTX, UV254, fingerprints, spectral alarms, and temperature.

    Online UV-Vis Spectrometer Features

    • Measuring principle: UV-V is spectrometry over the total range (190-750 nm)
    • Webserver onboard - IoT enabled
    • No user software is needed to configure the probe
    • Communicates directly with your mobile device via WLAN
    • Unlimited number of parameters possible
    • 8 GB onboard memory - capacity for logging data for many years
    • Improved optical performance - revolutionary precision
    • Fast measurement interval - 10 seconds
    • Extremely power efficient - sleep mode for low energy consumption
    • Multiparameter probe with 1 mm, 5 mm, or 35 mm optical path length, ideal for wastewater, surface water, and drinking water
    • Long term stable and maintenance-free in operation
    • Factory precalibrated, local multi-point calibration possible
    • Automatic cleaning with compressed air or brush/ruck::sack

    Waste-Water Datasheet
    Drinking-Water Datasheet

  • UV-Vis Spectrometer Vs3 s-can

    Organic Carbon Sensor | Carbo::lyser VS3

    Call for price

    Organic Carbon Sensor Carbo::lyser VS3 Overview

    The Organic Carbon Sensor Carbo::lyser VS3 is ideal for the measurement of the organic carbon load, represented by parameters like UV254, TOC, DOC, COD, or BOD, and at the same time, turbidity/solids concentration. Applicability ranges from pure water to industrial wastewater. Pre-calibrations for different types of water and applications significantly facilitate use.

    Carbo::lyser VS3  Features

    • Carbo::lyser™ V3 monitors 3 of the following parameters: TSS, Turbidity, TOC, DOC, BOD, COD, COD f, UV254, and UV254 f
    • Measuring principle: UV-Vis spectrometry over the total range (190-750 nm)
    • Webserver onboard - IoT enabled, no user software is needed to configure the probe
    • Communicates directly with your mobile device via WLAN
    • Choose exactly the parameters you want to measure – unlimited number of parameters possible
    • 8 GB onboard memory - capacity for logging data for many years
    • Improved optical performance - revolutionary precision
    • Fast measurement interval - every 10 seconds
    • Extremely power-efficient - sleep mode for low energy consumption
    • Multiparameter probe with 1 mm, 5 mm, or 35 mm optical path length, ideal for wastewater, surface water, and drinking water
    • Long term stable and maintenance-free in operation
    • Factory precalibrated, local multi-point calibration possible
    • Automatic cleaning with compressed air or brush/ruck::sack

    Drinkwater & Surface water Datasheet
    Wastewater Datasheet

  • Portable suspended solid level analyzer | Model 711

    Portable TSS Meter and Bed Level Meter | Royce Model 711

    Call for price

    Portable Total Suspended Solids Meter Model 711 Overview

    The Portable Total Suspended Solids Meter Model 711 is a rugged, waterproof instrument designed for portable sampling. The meter provides reliable operation in wastewater treatment plants, rivers, lakes, and other aqueous systems, and has two measurement modes that readout in either gram per litre or percentage of relative density.
    Calibration values for total suspended solids and interface level are stored in two separate nonvolatile memory locations allowing the user to switch between operational modes without having to recalibrate daily. Typical use requires monthly calibration.

    The Model 711 meter includes a Model 71 reliable sensor, with waterproof and polymer optical grade lenses. It is explicitly designed to meet the rigorous demands of a portable sensor. Additional instruments and cables are sold separately.

    Portable Total Suspended Solids Meter Model 711 Features :

    • Rugged and waterproof housing
    • Two measurements in one instrument:  TSS & Interface Level
    • Microprocessor-based; stored calibration values
    • Automatic ranging
    • Self-diagnostics
    • 9V battery with an automatic turnoff
    • 8-meter or 25-foot waterproof sensor cable with military connector

    Datasheet

  • Ammonium Probe Profile view

    Ammonium probe | ammo::lyser eco

    Call for price

    Overview of Ammonium (NH4-N) Probe

    A multi-parameter probe for the online measurement of ammonium. It is an absolutely reliable device outclassing conventional analyzers in terms of measurement stability and lifetime. Precision is guaranteed by real time compensation of the ammonium value with temperature, pH and potassium and a high performance reference electrode.

    ammo::lyser II eco: monitors NH4-N and temperature
    ammo::lyser III eco+pH:  pH, NH4-N and temperature
    ammo::lyser III eco+NO3-N:  NO3-N, NH4-N and temperature
    ammo::lyser III eco+Cl-: Chloride, NH4-N and temperature
    ammo::lyser IV eco+pH+NO3-N: pH,  NO3-N, NH4-N and temperature
    ammo::lyser IV eco+pH+Cl-: pH, chloride, NH4-N and temperature

    Features of Ammonium probe

    • s::can plug & measure
    • measuring principle: ISE (ion-selective electrodes) - with optional potassium compensation
    • multi-parameter probe
    • long term stable, factory calibrated
    • automatic cleaning with compressed air
    • unique, non-porous / non-leaking reference electrode for technically unrivalled and consistent performance
    • ISE refurbishment - the easy way to minimize maintenance
    • easy & quick mounting and measurement directly in the media (InSitu) or in flow cell (monitoring station)
    • operation via s::can terminals & s::can software
    • automatica temperature compensation, pH compensation possible
    • ideal for surface water, ground water and drinking water, also for applications in waste water
    • minimal maintenance
    • life time of ISE: typically 6 month (for applications <1mg/l NH4-N), resp. 1 to 2 years (for applications >1mg/l NH4-N)
  • Ammonium Probe Profile view

    Ammonium Sensor | ammo::lyser pro

    Call for price

    Overview of Ammonium (NH4-N) Sensor Ammo::lyser Pro

    A multi-parameter probe for the online measurement of ammonium. In particular the pro version has potassium compensation for more accurate results.  It is an absolutely reliable device outclassing conventional analyzers in terms of measurement stability and lifetime. Precision is guaranteed by real time compensation of the ammonium value with temperature, pH and potassium and a high performance reference electrode.

    ammo::lyser™ III pro: monitors NH4-N and temperature
    ammo::lyser™ IV pro+pH monitors NH4-N, temperature and pH (with potassium compensation)
    ammo::lyser™ IV pro+NO3-N monitors NH4-N, temperature and NO3-N (with potassium compensation)

    Features of Ammonium Sensor

    • s::can plug & measure
    • measuring principle: ISE (ionselective electrodes) - with optional potassium compensation
    • multi parameter probe
    • long term stable, factory pre-calibrated
    • automatic cleaning with compressed air
    • unique, non-porous / non-leaking reference electrode for technically unrivalled and consistent performance
    • ISE refurbishment - the easy way to minimise maintenance
    • easy & quick mounting and measurement directly in the media (InSitu) or in flow cell (monitoring station)
    • operation via s::can terminals & s::can software
    • automatic temperature compensation, pH compensation possible
    • ideal for surface water, ground water and drinking water, also for applications in waste water
    • minimal maintenance
    • life time of ISE: typically 6 month (for applications <1mg/l NH4-N), resp. 1 to 2 years (for applications >1mg/l NH4-N)
  • Combined Conductivity Electrode and electronics.

    Conductivity Sensor System 2850

    Call for price

    Overview of Conductivity Sensor 2850

    The Signet 2850 Conductivity/Resistivity Sensor Electronics are available in various configurations  for maximum installation flexibility. The universal mount version is for pipe, wall, or tank mounting and enables single or dual (digital versions only) inputs using any standard Signet conductivity/resistivity sensor. The threaded j-box version can be used with these same Signet sensors for submersible sensor mounting. It is also available as a combined integral system configuration for in-line mounting and includes a conductivity electrode in a choice of 0.01, 0.1, 1.0,10.0 or 20.0 cm-1 cell constants. The 2850 is ideal for applications with a conductivity range of 0.055 to 400,000 μS or a resistivity range of 18.2 MΩ to 10 kΩ.

    All 2850 units are available with a digital (S3L) output, or  a single 4 to 20 mA. The digital (S3L) output version can be paired with the 9900 or 9950 Transmitter to extend the distance between the measuring points to 120 m (400 ft).

    The 8900 Multi-Parameter Controller allows for up to six 2850 (S3L) output conductivity sensors to be used with the Signet 8900 Multi-Parameter Controller. All 2850 units are built with NEMA 4X/IP65 enclosures which allow output wiring connections with long cable runs of up to 305 m (1,000 ft).

    The two-wire 4 to 20mA output version is available with eight 4 to 20 mA output ranges for each electrode cell constant. Each range can be inverted and is field selectable.

    EasyCal is a standard feature that automatically recognizes conductivity test solution values for simple field calibration. A certification tool is available for validation of the sensor electronics according to USP requirements.

    Conductivity Sensor system Features

    • Test certificate supplied with all sensors
    • Custom cell constant programmed into the electronics
    • Integral mount systems for quick and easy installation
    • Compact design for maximum installation flexibility
    • Extends the distance between the measuring point and the 9900 Transmitter to 120 m (400 ft)
    • Digital (S3L) interface or two-wire 4 to 20mA output
    • EasyCal with automatic test solution recognition
    • For use with ALL Signet conductivity electrodes

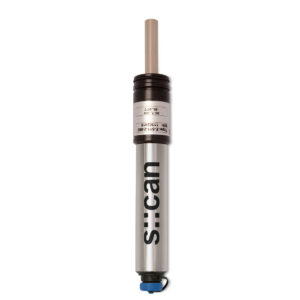

  • s-can Conductivity Sensor E-511-2-000 condulyser Profile image

    Conductivy Sensor – Condu::lyser

    Call for price

    Overview of Conductivity Sensor Condu-lyser

    The condu::lyser is a maintenance-free and long-term stable probe for online measurement of conductivity, automatically compensated with temperature. It can be mounted directly in the media or in a flow cell providing high precision by either conductive or inductive measurement. Thanks to the 4 electrode high measurement range it is ideal for all varieties of water. One sensor for all applications. 2 versions available one sensor with plug connector for use in monitoring or bypass stations, sensor with fixed cable for submersion directly into media.

    Conductivity sensor Features:
    • s::can plug & measure
    • measurement principle condu::lyser: 4 electrode contacting measurement
    • multi parameter sensor(temp and EC)
    • ideal for surface water, ground water, drinking water and waste water
    • steam sterilizable, autoclavable and compatible with Cleaning In Place (CIP)
    • condu::lyser monitors conductivity, temperature and salinity
    • long term stable and maintenance free in operation
    • high temperature, pressure and measuring range
    • factory pre-calibrated
    • mounting and measurement directly in the media (InSitu) or in a flow cell
    • operation via s::can terminals & s::can software
    • optional: automatic cleaning with compressed air
  • DO sensor s::can Dissolved Oxygen Probe E-501-075

    Dissolved Oxygen sensor oxi::lyser DO

    Call for price

    No Consumables Dissolved Oxygen Probe Overview

    The main application of the oxi::lyser is the online control of the most cost-intensive wastewater treatment process, namely the aeration of the biological carbon and nitrogen removal. The activated sludge increases its activity with rising oxygen concentrations, but this increase is not linear: Above approximately 2.5 mg/L a further elevation in oxygen does not increase the nitrification enough to justify the rise in costs of aeration. Furthermore, too high oxygen concentrations interfere with the process of denitrification. Therefore the oxygen concentration should be controlled online in the entire biological nitrogen removal process. Using the nitro::lyser™ and the ammo::lyser™ to monitor the nitrogen continuously in combination with the oxygen the operational procedures, as well as the economics of wastewater treatment, can be optimized.

    In drinking water applications the Dissolved Oxygen is mainly used in early warning systems detecting problems in raw water quality:  Reduced dissolved oxygen concentrations are often an indicator for harmful microbial or chemical contaminations of the water. Applied in natural waters or on fish farms the oxi::lyser™ can detect anaerobic conditions, which are life-threatening aquatic organisms, and thus it helps to prevent ecological as well as economic damage.

    This Dissolved Oxygen probe measures the concentration of dissolved oxygen and the temperature directly in the water. The oxi::lyser™ does not need a minimum flow to produce accurate readings and uses the temperature measurement for On-Line correction. The sensing element, which uses the principle of fluorescence for the oxygen measurement, is neither affected nor damaged by direct exposure to sunlight. Under normal conditions, the fouling of the sensing element will not affect the results. However, to be sure that fouling is kept to a minimum, the oxi::lyser™ can be cleaned automatically with compressed air. The oxi::lyser uses no replaceable parts or consumables. Therefore, when operated properly there will be no costs for spare parts at all. For the oxi::lyser™ we guarantee replacement of spare parts free of charge for the first three years after delivery (upon presenting the warranty card).

    Dissolved Oxygen Probe Features

    • s::can plug & measure
    • measuring principle: optical / fluorescence
    • multiparameter sensor
    •  ideal for surface water, groundwater, drinking water and wastewater
    • long term stable and maintenance-free in operation
    •  factory precalibrated
    • automatic cleaning with compressed air
    • mounting and measurement directly in the media (InSitu) or in a flow cell
    •  no flow necessary
    • operation via s::can terminals & s::can software
    • minimal maintenance (no consumables)
  • Free Chlorine or Total Chlorine Sensor | Chlori::lyser

    Call for price

    Online Chlorine Sensor Overview

    The chlori::lyser is a revolutionary sensor for monitoring free chlorine or total chlorine. Its internal buffer electrolyte allows pH-independent measurement between pH 4 to 9+, and its 3-electrode system provides extremely stable readings. These sensors were developed for use in drinking water, pool water and different types of water treatment. The usage in waste water is possible, but has to be evaluated in the specific application. These sensors have only a low dependence on fluctuations of flow. However a constant flow of the measuring medium is recommended.

    High precision is ensured even at high fluctuations of pH, temperature and flow. chlori::lyser™ monitors free chlorine (Cl2 + HOCl + OCl-) or total chlorine (free chlorine + combined chlorine)

    Chlorine Sensor Features

    • s::can plug & measure
    • measuring principle: amperometric (membrane covered)
    • ideal for drinking water
    • long term stable and low maintenance
    • replacement of membrane only once a year
    • readings stable at high fluctuations of pH, temperature and flow
    • compensates fluctuations of pH in an unmatched way
    • pH range from 4 to 9 FCl
    • pH range from 4 to 12 TCl
    • cross sensitivities to chlorine dioxide, ozone can be compensated by using readings from spectro::lyser™
    • factory zero point pre-calibrated
    • mounting and measurement in flow cell
    • operation via s::can terminals & s::can software
  • hydrogen peroxide sensor H2O2 E-509-1-000 hyperlyser profile image

    Hydrogen peroxide (H2O2) Probe | Hyper::lyser

    Call for price

    Hydrogen peroxide (H2O2) Probe Overview | Hyper::lyser

    The hyper::lyser is an amperometric sensor for monitoring hydrogen peroxide. It is ideal for all kinds of water treatment and produces stable readings even at high fluctuations of pH, temperature and flow. Strong surfactants are tolerated.

    Hydrogen peroxide (H2O2) Probe Features

    • s::can plug & measure
    • long term stable and lowest maintenance in operation
    • measuring principle: amperometric (membrane covered)
    • ideal for all kinds of water treatment
    • only once a year replacement of membrane
    • readings stable even at high fluctuations of pH, temperature and flow
    • additionally also measures temperature
    • strong surfactants are tolerated
    • factory precalibrated
    • mounting and measurement in a flow cell
    • operation via s::can terminals & s::can software
  • Total Suspended Solids Probe

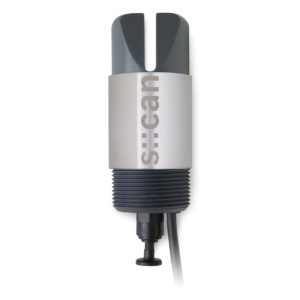

    TSS Sensor Total Suspended Solids | Soil::lyser

    Call for price

    No Consumable MLSS  (TSS) Sensor Overview

    The level of solids in aeration basins MLSS is an essential parameter for the process control of wastewater treatment plants. The concentration of suspended solids measured by the TSS sensor can be used for the optimization of the biological treatment processes (i.e. nitrification, denitrification as well as phosphorus elimination) and for the control of sludge recirculation.

    The soli::lyser is an optical probe that measures the concentration of suspended solids directly in the water. The TSS sensor uses the temperature for compensation. Using infrared absorbance for measuring suspended solids prevents colours from interfering. It integrated an automatic cleaning system that uses compressed air for removal of fouling. Regular manual cleaning of the optical windows is therefore not required, significantly reducing maintenance for the operator. The soli::lyser has no replaceable parts or consumables. When operated correctly there will be no costs for spare parts at all. These MLSS sensor features unrivalled measurement with the lowest cost of ownership - make s::can sensors the most attractive solution available today.

    Total Suspended Solids Sensor Features:

    • factory precalibrated (2 measuring ranges available)
    • Monitors TSS in MLSS Mixed liquor tank
    • s::can plug & measure
    • measuring principle: optical (infrared absorbance)
    • ideal for wastewater
    • long term stable and maintenance-free in operation
    • automatic cleaning with compressed air
    • mounting and measurement directly in the media (InSitu) or in a flow cell
    • operation via s::can terminals & s::can software
    • minimal maintenance (no waste parts)
    • cost-efficient sensor, cost of ownership are unmatched
  • 5mm online photometer cleaning splash

    Online Multi-Parameter Photometer | i::scan

    Call for price

    Muli-Parameter Online Photometers Probe Overview

    All i::scan probes are compact multi-wavelength photometer probes, capable of high quality online measurements of light absorption with  either directly submersed in liquid media (in-situ) or in by-pass via flow cell setup. The probe can be operated also outside of the medium using a multifunctional slide. i::scan probes with a path-length of 35mm also have an additional 90 degree detector for scattered light measurements including suitable light sources. This allows measurements of turbidity according to ISO 7027 and similar to EPA 180.1

    For absorption measurement the sensor works as a multi-wavelength photometer with narrow band light sources. The wavelengths have been carefully selected to best fit the intended applications. For organic parameters multiple wavelengths in the UV-A/UV-B and UV-C range are used. For colour, solids and turbidity measurements light sources in the visible and near infrared range are used.

    Muli-Parameter Online Photometers Probe Features

    • s::can plug & measure
    • turbidity: measurement according to EPA 180.1 and ISO 7027, 90° scattering (35 mm path length)
    • dual-beam compensated optics
    • Economical light emitting technology
    • no consumables, no moving parts
    • special, non-fouling optical window material
    • low power consumption (less than 1 W typical)
    • optional automatic cleaning compressed air (InSitu, only for version -075 with fixed cable) or autobrush
    • multiple versions for multiple applications
    • long term stable, 100 % corrosion free
    • plug connection or fixed cable
    • 5000 hours maintenance free operation
    • mounting and measurement directly in the media (in situ) or in flow cell
    • can be mounted directly in a mains pipe / pressure pipe
    • operation via s::can terminals & s::can Software
