Filtration Systems

  • Ammonium Probe Profile view

    Ammonium probe | ammo::lyser eco

    Call for price

    Overview of Ammonium (NH4-N) Probe

    A multi-parameter probe for the online measurement of ammonium. It is an absolutely reliable device outclassing conventional analyzers in terms of measurement stability and lifetime. Precision is guaranteed by real time compensation of the ammonium value with temperature, pH and potassium and a high performance reference electrode.

    ammo::lyser II eco: monitors NH4-N and temperature
    ammo::lyser III eco+pH:  pH, NH4-N and temperature
    ammo::lyser III eco+NO3-N:  NO3-N, NH4-N and temperature
    ammo::lyser III eco+Cl-: Chloride, NH4-N and temperature
    ammo::lyser IV eco+pH+NO3-N: pH,  NO3-N, NH4-N and temperature
    ammo::lyser IV eco+pH+Cl-: pH, chloride, NH4-N and temperature

    Features of Ammonium probe

    • s::can plug & measure
    • measuring principle: ISE (ion-selective electrodes) - with optional potassium compensation
    • multi-parameter probe
    • long term stable, factory calibrated
    • automatic cleaning with compressed air
    • unique, non-porous / non-leaking reference electrode for technically unrivalled and consistent performance
    • ISE refurbishment - the easy way to minimize maintenance
    • easy & quick mounting and measurement directly in the media (InSitu) or in flow cell (monitoring station)
    • operation via s::can terminals & s::can software
    • automatica temperature compensation, pH compensation possible
    • ideal for surface water, ground water and drinking water, also for applications in waste water
    • minimal maintenance
    • life time of ISE: typically 6 month (for applications <1mg/l NH4-N), resp. 1 to 2 years (for applications >1mg/l NH4-N)
  • Ammonium Probe Profile view

    Ammonium Sensor | ammo::lyser pro

    Call for price

    Overview of Ammonium (NH4-N) Sensor Ammo::lyser Pro

    A multi-parameter probe for the online measurement of ammonium. In particular the pro version has potassium compensation for more accurate results.  It is an absolutely reliable device outclassing conventional analyzers in terms of measurement stability and lifetime. Precision is guaranteed by real time compensation of the ammonium value with temperature, pH and potassium and a high performance reference electrode.

    ammo::lyser™ III pro: monitors NH4-N and temperature
    ammo::lyser™ IV pro+pH monitors NH4-N, temperature and pH (with potassium compensation)
    ammo::lyser™ IV pro+NO3-N monitors NH4-N, temperature and NO3-N (with potassium compensation)

    Features of Ammonium Sensor

    • s::can plug & measure
    • measuring principle: ISE (ionselective electrodes) - with optional potassium compensation
    • multi parameter probe
    • long term stable, factory pre-calibrated
    • automatic cleaning with compressed air
    • unique, non-porous / non-leaking reference electrode for technically unrivalled and consistent performance
    • ISE refurbishment - the easy way to minimise maintenance
    • easy & quick mounting and measurement directly in the media (InSitu) or in flow cell (monitoring station)
    • operation via s::can terminals & s::can software
    • automatic temperature compensation, pH compensation possible
    • ideal for surface water, ground water and drinking water, also for applications in waste water
    • minimal maintenance
    • life time of ISE: typically 6 month (for applications <1mg/l NH4-N), resp. 1 to 2 years (for applications >1mg/l NH4-N)
  • s-can Conductivity Sensor E-511-2-000 condulyser Profile image

    Conductivy Sensor – Condu::lyser

    Call for price

    Overview of Conductivity Sensor Condu-lyser

    The condu::lyser is a maintenance-free and long-term stable probe for online measurement of conductivity, automatically compensated with temperature. It can be mounted directly in the media or in a flow cell providing high precision by either conductive or inductive measurement. Thanks to the 4 electrode high measurement range it is ideal for all varieties of water. One sensor for all applications. 2 versions available one sensor with plug connector for use in monitoring or bypass stations, sensor with fixed cable for submersion directly into media.

    Conductivity sensor Features:
    • s::can plug & measure
    • measurement principle condu::lyser: 4 electrode contacting measurement
    • multi parameter sensor(temp and EC)
    • ideal for surface water, ground water, drinking water and waste water
    • steam sterilizable, autoclavable and compatible with Cleaning In Place (CIP)
    • condu::lyser monitors conductivity, temperature and salinity
    • long term stable and maintenance free in operation
    • high temperature, pressure and measuring range
    • factory pre-calibrated
    • mounting and measurement directly in the media (InSitu) or in a flow cell
    • operation via s::can terminals & s::can software
    • optional: automatic cleaning with compressed air
  • Online water monitoring

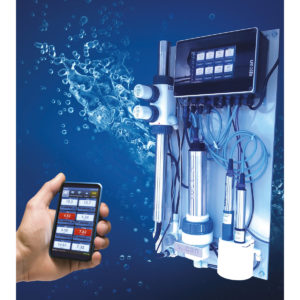

    Drinking Water Monitoring Station | Micro Station

    Call for price

    Overview of Drinking Water Quality Monitoring | Micro-Station.

    Modular online monitoring station combines s::can instruments in a compact and versatile system for easy plug and play installation. The user only has to connect water supply and -discharge (“plug & measure”) in order to receive a previously unheard of parameters immediately. The s::can micro::station is designed for Online monitoring of water quality parameters, in particular a focus on Turbidity and Total Organic Carbons, Dissolved Organic Carbons in clean media, such as drinking water. The components depending on the station model could include a - spectro::lyser, s::can probes and controller  all factory assembled with required flow cells, mounting fittings and pipework on a compact panel. The micro::station is a s::can solution for water analysis- compact and easy like never before.

    Can be used for process control with many applications utilizing a forward feed process control "predictive dosing"

    Micro-station Water Quality Monitoring Features:

    • Plug and play setup.
    • No Reagents  or titration system
    • Minimal maintenance.
    • Event Detection
      • Event detection module
      • Online Validation
      • Spectral Alarm
    • Online Measurement of multiple Parameters
      • NTU/FTU - Turbidity
      • Color
      • UV254
      • TOC - Total Organic Carbons
      • DOC - Dissolved Organic Carbons
      • NO3
      • NO2
      • Temperature
      • NH4
      • pH
      • K
      • Conductivity
      • Free or Total Chlorine
      • H2O2
      • CLO2
      • PAA
  • Flow System Transmitter 9900

    Paddle Wheel Flow Meter with Integral Transmitter 9900

    Call for price

    Signet has combined the 9900 SmartPro® Transmitter with the 515/8510 and 2536/8512 Paddlewheel Flow sensors to create integral systems that are easy to order and simple to install. Integral systems are also available in conductivity, level, temperature, and pressure configurations.

    Each integral system features a 9900 Transmitter which provides a local and easy to read LCD display. The push button keypad makes it easy to navigate through the transmitter’s menu. The DC-powered 9900 features a scalable 4 to 20 mA output and open collector for process control.

    Flow Integral Systems with 9900 Transmitters are combined with Signet’s field-proven Models 515/8510 and 2536/8512. These sensors reliably perform in flow ranges from 0.3 to 6 m/s (1 to 20 ft/s) and 0.1 to 6 m/s (0.3 to 20 ft/s) respectively for pipe sizes from ½ to 8 inches. They are available in a variety of materials including polypropylene and PVDF and are easily mounted in the pipe using Signet’s comprehensive line of standard fittings.

    Paddle wheel Flow meter Features

    • Warning LED indicator
    • Selectable error mode for current outputs, 3.6 mA or 22 mA
    • Large auto-sensing backlit display with “at a glance” visibility
    • Local display for sensor mounted instruments
    • Provides 4 to 20 mA output
    • "Dial-type" digital bar graph
    • NEMA 4X/IP65
  • paddle wheel flow sensor Profile image

    Standard Mount Paddlewheel Flow sensor -515

    Call for price

    Overview of Paddle Wheel flow sensor 515

    The Model 515 sensors are offered in a variety of materials for a wide range of pipe sizes and insertion configurations. The many material choices include PP and PVDF make this model highly versatile and chemically compatible to many liquid process solutions. Sensors can be installed in up to DN900 (36 in.) pipes using Signet's comprehensive line of custom fittings which include tees, saddles, and weldolets, set the sensor to the proper insertion depth into the process flow. The sensors are also offered in configurations for wet-tap and intrinsically safe installation requirements.

    Simple to install with time honored reliable performance, Model 515 Rotor-X paddle wheel flow sensors are highly repeatable, rugged sensors that offer exceptional value with little or no maintenance. The output signal of the Model 515 is a sinusoidal frequency capable of driving a self-powered flowmeter (Model 5090). The wide dynamic flow range of 0.3 to 6 m/s (1 to 20 ft/s) allows the sensor to measure liquid flow rates in full pipes and can be used in low pressure systems.

    Paddle wheel flow sensor features

    • Operating range: 0.3 to 6 m/s, 1 to 20 ft/s
    • Simple, economical design
    • Installs into pipe sizes: DN15 to DN900, 0.5 to 36 in
    • Max Pressure rating: PP 12.5 bar @ 20 °C, 180 psi @ 68 °F PVDF 14 bar @ 20 °C, 200 psi @ 68 °F
    • Power source: Self powered
    • Highly repeatable output
    • Chemically resistant materials
    • Compatibility: 8150, 8900, 9900, 9900-1BC, 9950
    • *Only Signet installation fittings
  • Spectrometer vertical profile 100 path length spectro::lyser

    UV-VIS Spectrometer V2, spectro::lyser | s::can

    Call for price

    UV-Vis Spectrometer Overview

    The spectro::lyser™ measures the entire absorption spectrum and is used by many drinking water providers all over the world as a pivotal component in their raw water monitoring. The spectro::lyser™ with its capability to measure and analyze the absorption spectrum in its entirety with 256 different wave lengths allows detection of a multitude of organic substances.

    spectro::lyser™ UV monitors depending on the application an individual selection of: NO3-N, COD, BOD, TOC, DOC, UV254, NO2-N, BTX, AOC, fingerprints and spectral alarms, temperature and pressure.

    spectro::lyser™ UV-Vis monitors depending on the application an individual selection of TSS, turbidity, NO3-N, COD, BOD, TOC, DOC, UV254, color, BTX, O3, H2S, AOC, fingerprints and spectral-alarms, temperature and pressure.

    UVVIS Spectrometer Features

    • s::can plug & measure
    • measuring principle: UV-Vis spectrometry over the total range (200-750 nm or 200-390 nm)
    • optical path lengths available to increase accuracy 100mm, 35mm, 5 mm, 2 mm, 1 mm or 0.5 mm possible
    • multi parameter probe with adjustable open path length
    • ideal for surface water, ground water, drinking water and waste water
    • long term stable and maintenance free in operation
    • factory pre-calibrated, local multi-point calibration possible
    • automatic cleaning with compressed air or brush/ruck::sack
    • mounting and measurement directly in the media (InSitu) or in flow cell (monitoring station)
    • operation via s::can terminals & s::can software
    • recommended by and compliant with public authorities and international agencies such as Chinese EPA, US EPA and CPCB
