Category: Dissolved Organic Carbon (DOC)

Dissolved Organic Carbon (DOC)

  • Industrial Spectrometer Explosive Atmospheres | Spectro::lyser ATEX

    Call for price

    Industrial Spectrometer Explosive Atmospheres - Overview

    The Spectro::lyser Industrial ATEX (depending on the individual selection) monitors: TSS, turbidity, NO3-N, O3, HS-, BTX, DOC, UV254, NO2-N, color, COD, BOD, TOC, AOC, fingerprints, and spectral alarms, temperature, and pressure.

    In wastewater treatment, reducing the pollutant load and keeping costs to a minimum is key. This reliable monitoring station provides continuous data in real-time. This is an essential in wastewater treatment for the continuous monitoring of discharged water and for dynamic process control. It is easy to use and install and requires almost no maintenance.

    This Spectro::lyser's explosion-proof specifications make it ideally suited for waste water management and sewers.

    Industrial Spectrometer Explosive Atmospheres - Features

    • for industrial wastewater and sewer applications
    • UV-Vis spectrometry over the total range (190-720 nm)
    • explosion-proof specification according to RL 2014/34/EU, TÜV-A 12ATEX0001 X; II 2 G Ex db IIC T6 Gb; QAN: TÜV-A 22ATEX3001Q
    • factory pre-calibrated, with advanced calibration service included
    • long term stability
    • virtually maintenance-free
    • automatic cleaning with compressed air or brush
    • s::can plug & measure
    • easy mounting without clogging
    • mounting and measurement directly in the media (InSitu) or in a flow cell (monitoring station)
    • adaption of optical path lengths to 35 mm, 15 mm, 5 mm, 2 mm, 1 mm, or 0.5 mm possible
  • Multilyser V3 | Multi::lyser

    Call for price

    Multilyser V3 - Overview

    The Multilyser is a combination of the s::can Nitrolyser and Carbolyser probes. The Multilyser measures organic carbon & nitrates for a multitude of pre-defined applications. The Multilyser is suitable to be used for surface water, groundwater, drinking water as well as wastewater applications. This accurate, easy to use probe optimises performance and cost-effectiveness.

    The Multilyser monitors 4 of the following parameters: Turbidity, TSS, TS, BOD, COD, TOC, DOC, COD f, NO3-N, NO-3, UV254, and UV254 f.

    Multilyser V3 - Features

    • UV-Vis spectrometry over the total range (190-750 nm)
    • web server onboard – IoT enabled, no user software is needed to configure
    • communicates directly with your mobile device via WLAN
    • unlimited number of parameters possible
    • 8 GB onboard memory
    • improved optical performance
    • revolutionary precision
    • fast measurement interval – every 10 seconds
    • extremely power efficient
    • sleep mode for low energy consumption
    • multiparameter probe with 1 mm, 5 mm, or 35 mm optical path length
    • ideal for wastewater, surface water, and drinking water
    • long term stability
    • virtually maintenance-free
    • factory pre-calibrated, local multi-point calibration possible
    • automatic cleaning with compressed air or brush/ruck::sack
  • Online UV-Vis Spectrometer | Spectro::lyser V3

    Call for price

    Online UV-Vis Spectrometer  Spectro::lyser V3 Overview

    The Spectro::lyser V3 is a next-generation high-performance online water quality monitoring. With the aid of extensive research on industry needs and using the latest technology, the Spectro::lyser V3 was innovatively designed. The Spectro::lyser™ UV-Vis monitors depending on the application an individual selection of TSS, TS, turbidity, color, TOC, DOC, BOD, COD, NO3-N, NO3, chloramine, HS-, O3, CLD, Chl-a, BTX, UV254, fingerprints, spectral alarms, and temperature.

    Online UV-Vis Spectrometer Features

    • Measuring principle: UV-V is spectrometry over the total range (190-750 nm)
    • Webserver onboard - IoT enabled
    • No user software is needed to configure the probe
    • Communicates directly with your mobile device via WLAN
    • Unlimited number of parameters possible
    • 8 GB onboard memory - capacity for logging data for many years
    • Improved optical performance - revolutionary precision
    • Fast measurement interval - 10 seconds
    • Extremely power efficient - sleep mode for low energy consumption
    • Multiparameter probe with 1 mm, 5 mm, or 35 mm optical path length, ideal for wastewater, surface water, and drinking water
    • Long term stable and maintenance-free in operation
    • Factory precalibrated, local multi-point calibration possible
    • Automatic cleaning with compressed air or brush/ruck::sack

    Waste-Water Datasheet
    Drinking-Water Datasheet

  • Organic Carbon Sensor | Carbo::lyser VS3

    Call for price

    Organic Carbon Sensor Carbo::lyser VS3 Overview

    The Organic Carbon Sensor Carbo::lyser VS3 is ideal for the measurement of the organic carbon load, represented by parameters like UV254, TOC, DOC, COD, or BOD, and at the same time, turbidity/solids concentration. Applicability ranges from pure water to industrial wastewater. Pre-calibrations for different types of water and applications significantly facilitate use.

    Carbo::lyser VS3  Features

    • Carbo::lyser™ V3 monitors 3 of the following parameters: TSS, Turbidity, TOC, DOC, BOD, COD, COD f, UV254, and UV254 f
    • Measuring principle: UV-Vis spectrometry over the total range (190-750 nm)
    • Webserver onboard - IoT enabled, no user software is needed to configure the probe
    • Communicates directly with your mobile device via WLAN
    • Choose exactly the parameters you want to measure – unlimited number of parameters possible
    • 8 GB onboard memory - capacity for logging data for many years
    • Improved optical performance - revolutionary precision
    • Fast measurement interval - every 10 seconds
    • Extremely power-efficient - sleep mode for low energy consumption
    • Multiparameter probe with 1 mm, 5 mm, or 35 mm optical path length, ideal for wastewater, surface water, and drinking water
    • Long term stable and maintenance-free in operation
    • Factory precalibrated, local multi-point calibration possible
    • Automatic cleaning with compressed air or brush/ruck::sack

    Drinkwater & Surface water Datasheet
    Wastewater Datasheet

  • Titanium Spectrometer | Spectro::lyser Titanium Pro

    Call for price

    Titanium Spectrometer - Overview

    This titanium spectrometer probe is a multi-parameter instrument that can measure multiple water quality parameters continuously. Its rugged design is suitable for use in high-pressure and high-temperature environments. As the probe comes into direct contact with the water, there is no need for complex sample pre-treatment. It is installed and operated by the easy "plug and measure" principle. The titanium spectrometer probes can be installed quickly and effortlessly, either submersed (InSitu) or in a flow-through setup (Bypass, monitoring station). It also comes with an automatic cleaning system that uses compressed air to clean the sensors. This system has proven highly efficient and reliable, even in untreated wastewater. The s::can spectrometer probes are intelligent instruments that use software-controlled procedures to identify any fouling on the measuring.

    The titanium spectrometer monitors the following parameters depending on the applications selected: TSS, turbidity, NO3-N, COD,  DOC, UV254, NO2-N, BOD, TOC, color, O3, HS-, BTX, AOC, fingerprints, and spectral alarms, temperature, and pressure.

    Titanium Spectrometer - Features

    • UV-Vis spectrometry over the total range (190-720 nm)
    • Ideal for industrial wastewater, desalination, and seawater
    • Rugged design with titanium grade 2 housing
    • Factory pre-calibrated, with advanced calibration service included
    • Long term stability
    • Very low maintenance
    • Automatic cleaning with compressed air or brush
    • s::can plug & measure
    • Mounting and measurement directly in media (InSitu) or in a flow cell (monitoring station)
    • Easy mounting without clogging
    • Adaption of optical path lengths to 35 mm, 5 mm, 2 mm, or 0.5 mm possible

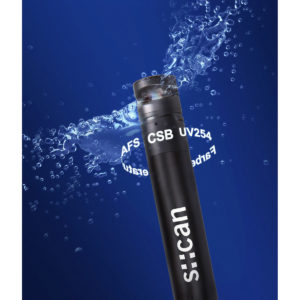

  • Online Multi-Parameter Photometer | i::scan

    Call for price

    Muli-Parameter Online Photometers Probe Overview

    All i::scan probes are compact multi-wavelength photometer probes, capable of high quality online measurements of light absorption with  either directly submersed in liquid media (in-situ) or in by-pass via flow cell setup. The probe can be operated also outside of the medium using a multifunctional slide. i::scan probes with a path-length of 35mm also have an additional 90 degree detector for scattered light measurements including suitable light sources. This allows measurements of turbidity according to ISO 7027 and similar to EPA 180.1

    For absorption measurement the sensor works as a multi-wavelength photometer with narrow band light sources. The wavelengths have been carefully selected to best fit the intended applications. For organic parameters multiple wavelengths in the UV-A/UV-B and UV-C range are used. For colour, solids and turbidity measurements light sources in the visible and near infrared range are used.

    Muli-Parameter Online Photometers Probe Features

    • s::can plug & measure
    • turbidity: measurement according to EPA 180.1 and ISO 7027, 90° scattering (35 mm path length)
    • dual-beam compensated optics
    • Economical light emitting technology
    • no consumables, no moving parts
    • special, non-fouling optical window material
    • low power consumption (less than 1 W typical)
    • optional automatic cleaning compressed air (InSitu, only for version -075 with fixed cable) or autobrush
    • multiple versions for multiple applications
    • long term stable, 100 % corrosion free
    • plug connection or fixed cable
    • 5000 hours maintenance free operation
    • mounting and measurement directly in the media (in situ) or in flow cell
    • can be mounted directly in a mains pipe / pressure pipe
    • operation via s::can terminals & s::can Software

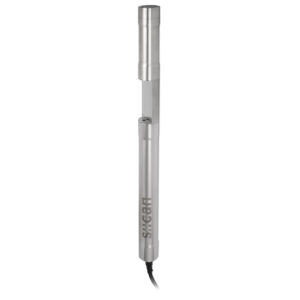

  • UV-VIS Spectrometer V2, spectro::lyser | s::can

    Call for price

    UV-Vis Spectrometer Overview

    The spectro::lyser™ measures the entire absorption spectrum and is used by many drinking water providers all over the world as a pivotal component in their raw water monitoring. The spectro::lyser™ with its capability to measure and analyze the absorption spectrum in its entirety with 256 different wave lengths allows detection of a multitude of organic substances.

    spectro::lyser™ UV monitors depending on the application an individual selection of: NO3-N, COD, BOD, TOC, DOC, UV254, NO2-N, BTX, AOC, fingerprints and spectral alarms, temperature and pressure.

    spectro::lyser™ UV-Vis monitors depending on the application an individual selection of TSS, turbidity, NO3-N, COD, BOD, TOC, DOC, UV254, color, BTX, O3, H2S, AOC, fingerprints and spectral-alarms, temperature and pressure.

    UVVIS Spectrometer Features

    • s::can plug & measure
    • measuring principle: UV-Vis spectrometry over the total range (200-750 nm or 200-390 nm)
    • optical path lengths available to increase accuracy 100mm, 35mm, 5 mm, 2 mm, 1 mm or 0.5 mm possible
    • multi parameter probe with adjustable open path length
    • ideal for surface water, ground water, drinking water and waste water
    • long term stable and maintenance free in operation
    • factory pre-calibrated, local multi-point calibration possible
    • automatic cleaning with compressed air or brush/ruck::sack
    • mounting and measurement directly in the media (InSitu) or in flow cell (monitoring station)
    • operation via s::can terminals & s::can software
    • recommended by and compliant with public authorities and international agencies such as Chinese EPA, US EPA and CPCB
