Flow

QUICK VIEW
In-Line Pitot Tube | Platon DS1161

In-Line Pitot Tube - Overview

The In-Line Pitot Tube "Flo-bar" is a Stainless Steel pipe section with welded-in pitot probes. It is available for ½" to 2" pipes. They are supplied fitted with ¼" ball valves to provide process isolation. Suitable for liquids and gases.

In-Line Pitot Tube - Features
- Flow sensors for liquids or gases
- ±1% of the actual flow rate
- Flow averaging
- Internal isolation ball valve
- No power supply required
- Full electron beam welded construction
Read more
3
QUICK VIEW
Open Channel Flow Meter | RWPLCM

Open Channel Flow Meter - Overview

The Open Channel Flow Meter is an economical solution for open channel measuring. It measures level, flow rate and total volume of water flowing through weirs and flumes. The meter includes a non-contact ultrasonic level sensor to detect the water level which then calculates the flow rate and volume using the Manning equation and channel characteristics. Economical and reliable. The accuracy of change in level is 1mm. Suitable for a variety of weirs and flumes, Parshall flumes (ISO), V-Notch weirs, Rectangular weirs (With or Without End Contractions) and custom Formula-type weirs. The meter displays flow rate in L/S, M3/h or M3/min. It has a clear display with a backlit graphical LCD. The cable length between the probe and host is up to 1000m. The probe has a leak-proof structure and IP68 protection grade. It is chemically resistant for maximum application flexibility. Communications include a 4-20mA output and RS485 serial communication (MODBUS-RTU) output. It has 6 programmable relays for alarms. There are three buttons for programming or it can be remotely controlled for easy configuration and operation. The Open Channel Flow Meter is well suited for applications ranging from flow for water treatment plants, storm and sanitary sewer systems, effluent from water resource recovery, to industrial discharge and irrigation channels.

Open Channel Flow Meter - Features
- Power Supply: DC24V (±5%) 0.2A; AC220V (±20%) 0.1A ;Optional DC12V
- Display: Backlit LCD
- Flow Rate Range: 0.0000~99999L/S or m3/h
- The maximum of Accumulative Flow: 9999999.9 m3/h
- Accuracy of Change in Level: 1mm or 0.2% of full span (whichever is greater)
Read more
QUICK VIEW

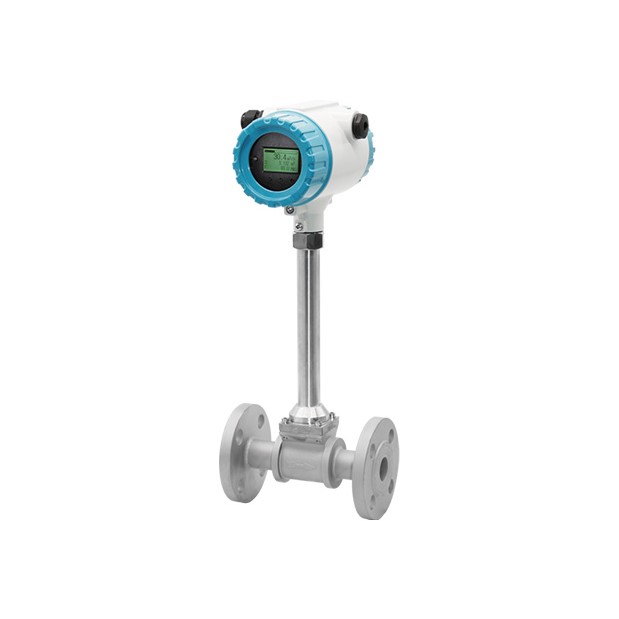

Standard Vortex Flow Meter | QT LUGB

Standard Vortex Flow Meter - Overview

The Standard Vortex Flow Meter is robust and measures the flow volume of non-conductive liquids, gases, and saturated and superheated steam. The vortex flow meter can add temperature and pressure compensation. It has an embedded sensor, with 4 piezo-electric crystals encapsulated inside the sensor, which is patented. There are no moving parts, and no abrasion, and the non-wearing parts inside the vortex flow meter sensor are in a fully welded SS304 body (SS316 selectable). It eliminates drift & vibration influence well compared to other meters. It can also work as a BTU meter to measure steam or hot water energy. It has a wide range of applications.

Standard Vortex Flow Meter - Features
- Suitable Mediums: Liquid, Gas, Steam
- Medium Temp: -40℃~+200℃; -40℃~+250℃; 40℃~+350℃
- Accuracy: 1.0% (Flange), 1.5% (Insertion)
- Material: SS304 (Standard), SS316 (Optional)
- Nominal Pressure: 1.6MPa;2.5MPa;4.0MPa (Other pressure can be customised)
Read more
QUICK VIEW
Variable Area Vertical Pointer Flowmeter | RWLZ

Variable Area Vertical Pointer Flowmeter - Overview

The LZ series is a no-contact and zero-hysteresis variable area flowmeter. It is a high-precision, high-reliability signal transmitter. It detects changes in the angle of the magnetic field of the magnetic sensor. This high-performance flowmeter is available with an indicator or with LCD display and includes power failure protection. The LCD can display the instantaneous flow, total flow, loop current, environment temperature, damping time, and small signal removal. Optional Two-wire 4~20mA signal (with HART communication) output available. It is not affected by the medium’s physical and chemical states such as conductivity, dielectric constants, etc. The Variable Area Vertical Pointer Flowmeter is ideal for small and medium flow measurements of single-phase liquids or gas with small and medium pipe diameters. Suitable for use with mediums that are corrosive, toxic and explosive. Applications include chemical, pharmaceutical, petrochemical, food, and metallurgical industries.

Variable Area Vertical Pointer Flowmeter - Features
- Medium temperature: Normalised type -80℃~+220℃
- Ambient temperature: -40℃~+120℃ (Remote display without LCD≤85℃)
- Range ratio: 10:1 (Special type 20:1)
- Accuracy class: 2.5 (Special type 1.5% or 1.0%)
- Working pressure: DN15~DN50 PN16 (Special type 2.5MPa)
- Durable - fully welded stainless steel body
- Suitable for most mediums
- Easy-to-read displays
Read more
QUICK VIEW
Multi-Channel Ultrasonic Flow Meter | RWTT Multi-channel

Multi-Channel Ultrasonic Flow Meter - Overview

This flow meter is suitable for continuously measuring the flow and temperature of clean liquids that do not have a large concentration of suspended particles or gases in an industrial environment. It supports single-channel and multi-channel simultaneously. In the event that one channel loses signal, it can automatically switch to single-channel mode. This sensor solves the problem of any installation errors during the installation process. It has high measurement accuracy, good stability, and is easy to maintain. When combined with a temperature sensor it becomes a calorimeter which is widely used in process control and production measurement. Applications include water treatment, pharmaceutical, petrochemical, chemical monitoring, and metallurgical industries.

Multi-Channel Ultrasonic Flow Meter - Features
- High accuracy
- Supports single-channel and multi-channel simultaneously
- Good stability
- Easy maintenance
Read more
QUICK VIEW
Oval Gear Flow Meter | QTLC

Oval Gear Flow Meter - Overview

The Oval Gear Flow Meter is a positive displacement flow meter composed of a meter shell, oval gear rotor and converter. It is an instrument used for continuous or discontinuous metering and control of liquids in the pipeline. It has the advantages of the large metering range such as excellent accuracy, small pressure loss and high viscosity adaptability. It has good performance high-temperature and high-viscosity liquids. Applications include calibration and metering of crude oil, chemicals, food and bev, pharmaceutical, scientific research and military.

Oval Gear Flow Meter - Features
- Accuracy: ±0.2%; ±0.5%
- Nominal Diameter: DN8~DN200 mm
- Nominal Pressure: PN1.6~6.3MPa
- Medium Viscosity: 2~3000mPa•s
- Power Supply: 12V DC; 24V DC
- Excellent Repeatability
- Minimal Maintenance
- Suitable for water, oil and high viscosity fluids
- Easy Installation
- No Flow conditioning needed
- Good Turn Down Ratios
- Accuracy unaffected by changes in Viscosity
- No power required with pulse or mechanical register
- Robust Design
- Output options including: Pulse, 4-20mA, RS485
- Intrinsically Safe & Explosion Proof
Read more
QUICK VIEW
Paddle Liquid Flow Switch | DS1434

Paddle Liquid Flow Switch - Overview

The body of the flow switch is a standard pipe tee which is BSP threaded and contains a paddle-type vane. The flow pushes the vane against magnetic forces. When the flow exceeds a critical value the magnet actuates a reed switch position, and the output is changed between N/O and the N/C contacts.

Paddle Liquid Flow Switch - Features
Good repeatability

Low pressure loss

Dirt-resistant

Hermentic separation of electrical and hydraulic components

Stress free fixing of switch unit by plastic cap
Read more
QUICK VIEW
Automatic Flow Controller | Platon DS1531

Automatic Flow Controller - Overview

This automatic flow control valve and governor limits the maximum rate of liquid flow in a pipe, irrespective of pressure changes, whilst presenting the minimum resistance to normal flow. For 50mm-100mm pipes.
Type B units are factory set for a user-defined flow rate
Type LB units control at a flow rate adjustable over a 6:1 flow range using the external hand wheel

Automatic Flow Controller - Features
- For 50mm-100mm pipes
- Automatic, no power required
- High accuracy, balanced control valve
- Fast response, short feedback path
- Simple
- Reliable
Read more
1
QUICK VIEW
Paddle Wheel Flow Transmitter | FSE

Paddle Wheel Flow Transmitter - Overview

Paddlewheel flow transmitters use the flow of the liquid to rotate a paddlewheel (just like a riverboat) in the flow stream. As the fluid moves faster, so does the paddlewheel. Measuring the rotations of the paddlewheel then gives an accurate indication of the speed of the flow.

Paddle Wheel Flow Transmitter - Features
- IP68 enclosure, SUS, and chemical-resistant body
- Low power consumption
- Stable & high-resolution rotor
- Bi-directional
- Easy maintenance
- Easy to use
- Connect to PLC / IPC directly
Read more
QUICK VIEW
Wafer Electromagnetic Flow Meter | RWEM/W

Wafer Electromagnetic Flow Meter - Overview

This wafer electromagnetic flow meter uses a new generation of special high-quality linings and mirror-polished PFA linings, making it suitable for the measurement of viscous pulp and gypsum slurry. Its detachable electrode makes maintenance more convenient. The product is based on Faraday's law of electromagnetic induction, used to measure the conductance greater than 20 μS/cm volume of conductive liquid flow. Not only can it measure the general volume of conductive liquid flow, but can also measure strong acids, alkalis, corrosive liquids and mud, pulp, etc.

Wafer Electromagnetic Flow Meter - Features
- Size: DN25mm-DN200mm
- Nominal Pressure: 1.6Mpa
- Accuracy: ±0.5%(Standard), ±0.3%(optional) ±0.2%(optional)
- Liner: PTFE, FEP, PFA
- Measuring Range: 0.5m/s-15m/s
- Suitable for confined spaces
- Fits all flanges like ANSI, DIN, and JIS
- Stainless steel
- Very economical
- Lightweight for easy installation
- Multiple output signals RS485/HART/Profibus
Read more
QUICK VIEW
Averaging Pitot Tube Flow Sensor | Platon FPP

Averaging Pitot Tube Flow Sensor - Overview

This high accuracy, wide rangeability sensor is an Averaging Pitot Tube flow sensor for use on pipes, ducts or chimneys. Differential pressure created across the Flo-Bar has the standard square root relationship to flow rate, making a simple, removable sensor for installation or retrofit on flowlines of any size. The standard integral manifold allows simple process isolation and easy installation of a DP measurement cell. Suitable for use in liquids, gases or steam.

Averaging Pitot Tube Flow Sensor - Features
Stainless steel (alternative material requirements readily accommodated)

Available for most line sizes, even above 3 metres in diameter

Flanged or screwed fittings

±1% Accuracy with standard square root flow output

Full electron beam welded construction

Unique profile sensor with flow averaging

Integral 3-valve manifold

Simple direct mounting of DP transmitter if required

Plain head and remote manifolds available
Read more
QUICK VIEW
Thread Electromagnetic Flow Meter | RWEM/L

Thread Electromagnetic Flow Meter - Overview

The RWEM/L Thread Electromagnetic Flow Meter is designed for sanitary applications. The size range is DN15-DN200. The sensor is SS304 or SS316 and is lined with PFA. As it is a tri-clamp design, the magnetic flow meter can be installed and removed easily. Suitable for use in the food-processing and pharmaceutical industries. as well as filling and metering.

Thread Electromagnetic Flow Meter - Features
Long service life

Food-grade stainless steel

Easy to clean

Current output and pulse output. Also RS485/HART/Profibus

Can be used to measure most drinks.
Read more
QUICK VIEW
Partially Filled Pipe Electromagnetic Flow Meter | RWEM/F

Partially Filled Pipe Electromagnetic Flow Meter - Overview

This flow meter is a kind of volume flow meter. It was specially designed for partially filled pipes. It can measure liquid volume from a 10% level of the pipe to 100% level of the pipe. Its accuracy can reach 2.5%. This is very accurate for irrigation and wastewater liquid measurement. It uses remote LCD display so users can read the flow measurement easily. It can withstand -20-60⁰C media temperature, and is very durable and safe. This uses an accurate mini ultrasonic level meter for its liquid level measurement. The flow meter then records and uses the liquid level parameter to calculate liquid flow. Suitable for most non-corrosive liquids. A solar power supply solution is optional. Manufactured using safe and durable material enabling a longer service life of between 5-10 years. This flow meter has a food-grade certificate for its liner, so it can be used for drinking water, groundwater, etc. This ultrasonic level meter’s blind area is very small and its accuracy can reach ±1mm. Applications include irrigation, water, wastewater, paper pulp, etc.

Partially Filled Pipe Electromagnetic Flow Meter - Features
- Size: DN200-DN3000
- Connection: Flange
- Liner Material: Neoprene/Polyurethane
- Electrode Material: SS316, Ti, Ta, HB, HC
- Structure Type: Remote Type
Read more
QUICK VIEW
Insertion Type Electromagnetic Flow Meter | RWEM/C

Insertion Type Electromagnetic Flow Meter -Overview

The insertion type electromagnetic flow meter provides an economical option for large pipeline flow measurement while retaining the advantages of the common magnetic flow meter. It can be used for pipe sizes between DN100mm and DN3000mm. It can be easily installed due to its hot-tap structure. The main advantage of using an electromagnetic flow meter is that it has no moving parts. It requires very little maintenance. This insertion type electromagnetic flow meter consists of an ABS or Polypropylene electromagnetic sensing probe mounted on the end of a support rod.

Insertion Type Electromagnetic Flow Meter - Features
- Pipe sizes between DN100mm and DN3000mm
- Hot-tap structure
- Easy installation
- No moving parts
- Virtually no maintenance
- Economical
- Submersible option
- Various outputs available
Read more
QUICK VIEW
Platon Fire Sprinkler Flowmeters | DS1163

Platon Fire Sprinkler Flowmeters - Overview

This is a robust, compact direct reading flowmeter, approved for use on lines from 80-150mm. Suitable for use in automatic sprinkler installations, water spray or deluge systems. Approved for regular monitoring and testing of such systems by the Loss Prevention Certification Board (LPCB), under their “Rules for Automatic Sprinkler Installations”, in the UK and equivalent organisations in other countries. The flow meter is a combination of two simple measuring elements. In the main flow line, an orifice plate is inserted between two pipe flanges, producing a pressure drop related to the flow rate. Across the orifice plate, a shunt or bypass loop uses this pressure drop to create a small flow through a similar orifice restrictor and a Variable Area flowmeter. The flow in the bypass VA meter is proportional to the main line flow, and special scaling on the glass tube allows the main line flow to be measured directly.

Platon Fire Sprinkler Flowmeters - Features
- Approved and listed by LPCB
- Easy installation between pipe flanges
- Instantaneous reading
- Simple water flow measurement
- No electrical power needed
- Isolation valves for tube replacement and cleaning
Read more
