Paddle Liquid Flow Switch | DS1434

Paddle Liquid Flow Switch DS1434

Paddle Liquid Flow Switch | DS1434

Paddle Liquid Flow Switch – Overview

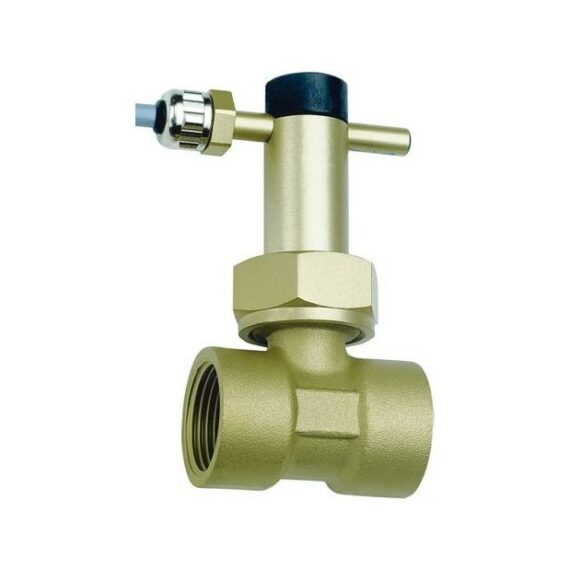

The body of the flow switch is a standard pipe tee which is BSP threaded and contains a paddle-type vane. The flow pushes the vane against magnetic forces. When the flow exceeds a critical value the magnet actuates a reed switch position, and the output is changed between N/O and the N/C contacts.

Paddle Liquid Flow Switch – Features

  • Good repeatability
  • Low pressure loss
  • Dirt-resistant
  • Hermentic separation of electrical and hydraulic components
  • Stress free fixing of switch unit by plastic cap
SKU: DS1434 Category: Tag:
TT Electronics logo

Description

Paddle Liquid Flow Switch | DS1434

Pipe sizes 1/4″ – 2″
Hysteresis
0.7L/min – depending on switch value
Connection BSP Female
Limits
25 bar max, 110⁰C max
Material
Brass or 316 Stainless Steel
Cable Length 1.5m
Output
Reed Contact, 1Amp @ 250V max. Selectable NO/NC SPST
Protection IP65

Paddle Liquid Flow Switch | DS1434

Brand

TT Electronics
