| Size |
DN15-DN200 (1/2″-8″) |
| Accuracy |
±0.5% of reading at flow rate ≥ 0.5m/s, ±0.2% optional at flow velocity ≥ 0.5m/s |
| Velocity |
0.1~15 m/s |
| Repeatability |
≤0.17% |
| Structure |

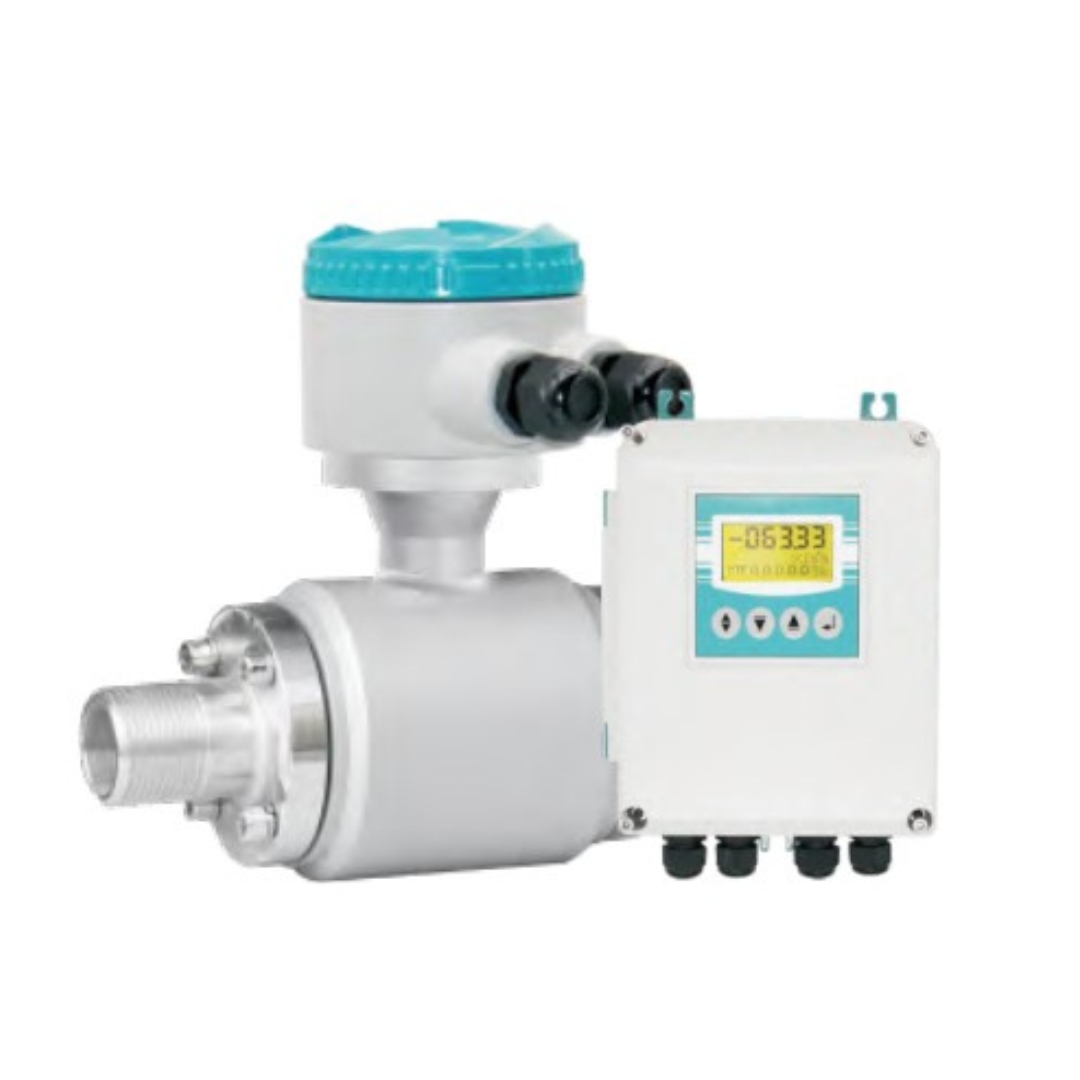

Compact/remote, cable length 10m standard, 100m max |
| Conductivity |
> 5 μS/cm, demineralised water > 20 µS/cm |
| Protection Grade |
Transmitter: IP65 standard , IP67 optional |
|
Sensor: IP65 std, IP68 (submersible, only available for remote type) |
| Electrode |
SS316L |
| Power Supply |
85~250 VAC (50/60 HZ), 20~36 VDC |
| Power Consumption |
<20W |
| Signal Output |
Analog 4~20mA ( load resistor 0~750Ω) |
|
Frequency Forward & reverse flow output with a frequency range of 1~5000Hz |
|
Alarm Two isolated open collector transistor (OCT) outputs for alarm signals |
| Communication |
RS485 MODBUS standard, HART, GPRS, PROFIBUS optional |
| Display |
LCD Display,128X128mm, three lines, 4 buttons |
| Ambient Temperature |
-20℃~60℃ |
| Fluid Temperature |
Compact: -20℃ ~80℃, Remote: -20℃ ~120℃ |
| Liner material |
PFA |
| Sensor Material |
Measuring tube: SS304 |
|
Tri-clamp & housing: SS304 standard, SS316 optional |
| Transmitter Material |
Aluminium alloy with epoxy painting |
| Nominal Pressure |
1.6 Mpa |
| Display |
Instantaneous flow, total flow, flow velocity |
| Function |
High and low alarm, empty pipe alarm, exciting alarm, self-diagnosis |
| Totalizer |
Three built-in totalizers: forward flow, reverse flow and net flow |
| Display Unit |
L/s, L/m, L/h, m /s, m /m, m /h, UKG, USG, gal/s, gal/m, gal/h, kg/s, kg/m, kg/h, t/s, t/m, t/h |
| Language |
English, Chinese, Italian, Portuguese, French, Spanish, Korean |
| Process Connection |
Male thread, female standard, G thread standard, NPT, BSP and other thread standard can be customised
|
