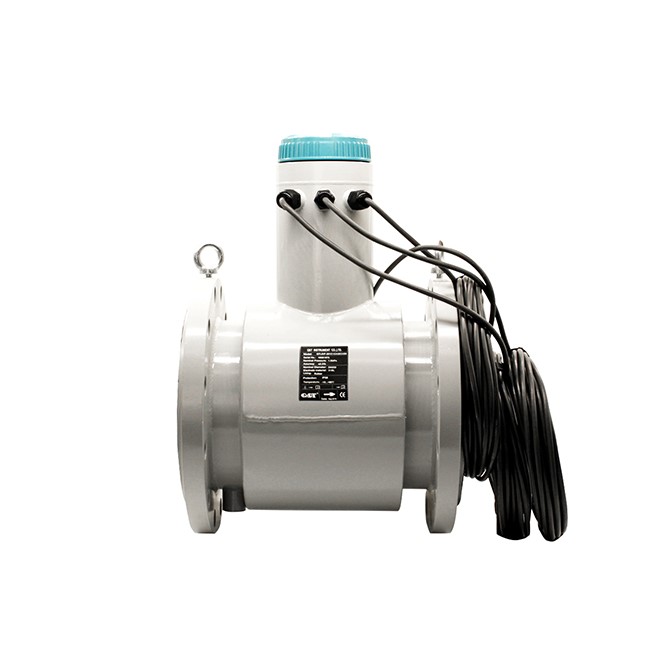

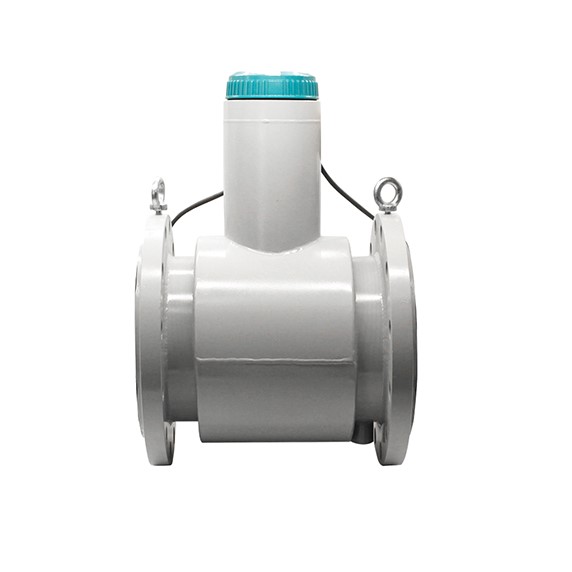

Partially Filled Pipe Electromagnetic Flow Meter – Overview

This flow meter is a kind of volume flow meter. It was specially designed for partially filled pipes. It can measure liquid volume from a 10% level of the pipe to 100% level of the pipe. Its accuracy can reach 2.5%. This is very accurate for irrigation and wastewater liquid measurement. It uses remote LCD display so users can read the flow measurement easily. It can withstand -20-60⁰C media temperature, and is very durable and safe. This uses an accurate mini ultrasonic level meter for its liquid level measurement. The flow meter then records and uses the liquid level parameter to calculate liquid flow. Suitable for most non-corrosive liquids. A solar power supply solution is optional. Manufactured using safe and durable material enabling a longer service life of between 5-10 years. This flow meter has a food-grade certificate for its liner, so it can be used for drinking water, groundwater, etc. This ultrasonic level meter’s blind area is very small and its accuracy can reach ±1mm. Applications include irrigation, water, wastewater, paper pulp, etc.

Partially Filled Pipe Electromagnetic Flow Meter – Features

• Size: DN200-DN3000
• Connection: Flange
• Liner Material: Neoprene/Polyurethane
• Electrode Material: SS316, Ti, Ta, HB, HC
• Structure Type: Remote Type
