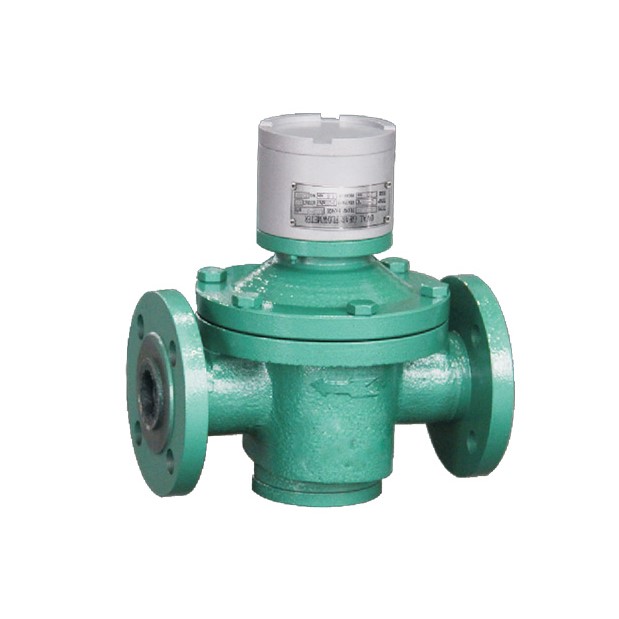

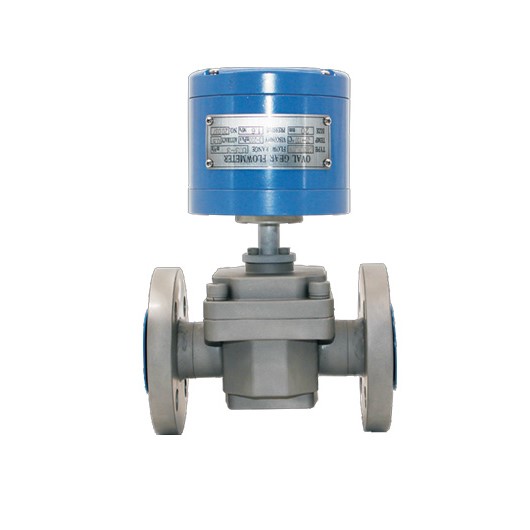

Oval Gear Flow Meter – Overview

The Oval Gear Flow Meter is a positive displacement flow meter composed of a meter shell, oval gear rotor and converter. It is an instrument used for continuous or discontinuous metering and control of liquids in the pipeline. It has the advantages of the large metering range such as excellent accuracy, small pressure loss and high viscosity adaptability. It has good performance high-temperature and high-viscosity liquids. Applications include calibration and metering of crude oil, chemicals, food and bev, pharmaceutical, scientific research and military.

Oval Gear Flow Meter – Features

• Accuracy: ±0.2%; ±0.5%
• Nominal Diameter: DN8~DN200 mm
• Nominal Pressure: PN1.6~6.3MPa
• Medium Viscosity: 2~3000mPa•s
• Power Supply: 12V DC; 24V DC
• Excellent Repeatability
• Minimal Maintenance
• Suitable for water, oil and high viscosity fluids
• Easy Installation
• No Flow conditioning needed
• Good Turn Down Ratios
• Accuracy unaffected by changes in Viscosity
• No power required with pulse or mechanical register
• Robust Design
• Output options including: Pulse, 4-20mA, RS485
• Intrinsically Safe & Explosion Proof
