Integral Display Flange Ultrasonic Flow Meter | RWTT IDF

Integral Display Flange Ultrasonic Flow Meter - Overview

This flow meter is an economical liquid flow meter. It measures various pure liquids such as clean water, seawater, drinking water, river water, alcohol etc. It is suitable for continuous flow measurement of clean and uniform liquids without a large concentration of suspended particles or gases in an industrial environment. The flow meter is able to connect to a temperature sensor to become a calorimeter which is widely used in the Food industry, Oil and gas industry, Chemical industry, Water treatment industry, and Power industry.

Integral Display Flange Ultrasonic Flow Meter - Features
- Accuracy better than ±1.0%
- High reliability
- High performance
- Low price
- Bi-directional flow measurement
- No moving parts, no wear, no pressure loss, virtually maintenance-free
- Measures conductive & non-conductive liquid
- Display instantaneous flow, Total flow, Temp, Positive flow, Negative flow
- High-precision machined pipe sections
Read more
QUICK VIEW
Magmeter Flow Sensor | 2551
Price range: R32,897.00 through R89,766.00

Magmeter Flow Sensor - Overview

This insertion magnetic flow sensor features no moving parts. It is available in corrosion-resistant materials to provide long-term reliability with minimal maintenance costs. Material options include PP with stainless steel, PVDF with stainless steel, PVDF with Hastelloy-C, or PVDF with Titanium. These versatile, simple-to-install sensors deliver accurate flow measurements for a wide range of pipe sizes ranging from DN15 to DN900 (½ to 36 inches), making them suitable for various applications. These Magmeters offer frequency/digital (S3L) or 4 to 20 mA output options. Both are available on the blind and display versions. The frequency or digital (S3L) sensor output can be used with Georg Fischer's extensive line of flow instruments while the 4 to 20 mA output can be used for direct input to PLCs, chart recorders, etc. Both the 4 to 20 mA output and the digital (S3L) sensor interface are available for long-distance signal transmission. An additional benefit is the empty pipe detection which features a zero flow output when the sensors are not completely wetted. Also, the frequency output is bi-directional and can be set using the 4 to 20 mA output, using the display, or the 3-0250 USB to Digital (S3L) set-up tool. The display version is available with relays and features permanent and re-settable total values which can be seen on the display. The display contains multi-language options such as English, Spanish, German, French, Italian and Portuguese.

Magmeter Flow Sensor - Features
- Installs into pipe sizes: DN15 to DN900, 0.5 to 36 in
- Operating range: 0.05 to 10 m/s, 0.15 to 33 ft/s
- Max Pressure rating: PP 10.3 bar @ 25 °C, 150 psi @ 77 °F
- Power source: 4 to 20mA: 21.6 to 26.4 VDC, 22.1mA max
- Empty pipe detection
- Frequency output bi-directional
- Material options: PP with stainless steel, PVDF with stainless steel, PVDF with Hastelloy-C, or PVDF with Titanium
Select options
QUICK VIEW
Clamp-on Flow Sensors | MFATGx

Clamp-on Flow Sensors - Overview

This externally mounted sensor is for closed pipes and is non-invasive. This means low maintenance and cost-effective flow measurements using ultrasound. It can be used for temporary or permanent measurement. It can measure flow in both directions. The sensor can be attached by magnet, adhesive or stainless steel strap, and is easy to place. Also available with watertight or protective housing (optional).

Clamp-on Flow Sensors - Features
- Magnetic mount for temporary measurement
- Adhesive for permanent installations
- Adhesive and weather cover create a seal
- No gel erosion
- Easy installation
- Multi Pipe section – 1 RISONIC Clamp-On Controller can control up to 4 pipes
- Non-intrusive Ultrasonic flow measurement - No drilling in the pipe and no interruption of operation
- Cost-efficient
- Accurate measurement with 1 or 2 measuring paths
- Bi-Directional flow measurement
- Accuracy up to 1% of the measured value
- No configuration software is needed
- Easy configuration and remote diagnosis
- IEC 60870-5-104 and Modbus RTU/TCP communication
https://www.youtube.com/watch?v=soFZJWyA6A8&t=1s

Read more
QUICK VIEW
Insertion Vortex Flow Meter | LUGB-Insertion

Insertion Vortex Flow Meter - Overview

This insertion vortex flow meter measures the volume flow of non-conductive liquids, gases, and saturated and superheated steam. It has no moving parts, eliminating abrasion and wear. It is in a fully welded SS304 body (SS316 selectable). It has a patented sensor and flow sensor body and eliminates drift and vibration influence. It is highly accurate, especially for gas flow. It has a variety of signal outputs and selections such as 4-20mA, pulse with HART or pulse with RS485. When the temperature and pressure change significantly in gas flow measurement the vortex flow meter could add temperature and pressure compensation. The vortex flow meter could also work as a BTU meter and measure steam or hot water energy. Applications include the chemicals and petrochemical industries. Suitable for use with light oil or any purified water, such as thermal oils, desalinated water, demineralised water, RO water, boiler feed water, condensate water etc.

Insertion Vortex Flow Meter - Features
- Measured Medium: Liquid, Gas, Steam
- Accuracy: 1.0% (Flange), 1.5% (Insertion)
- Power Supply: 12-24V/DC or 3.6V battery powered
- Medium Temp: -40℃~+200℃; -40℃~+280℃; 40℃~+350℃
- Nominal Pressure: 1.6MPa;2.5MPa;4.0MPa;6.4MPa (Other pressure can be customised)
Read more
QUICK VIEW
Modular Ultrasonic Flow Meter | RWTT Modular

Modular Ultrasonic Flow Meter - Overview

The Modular Ultrasonic Flow Meter is compact and economical. It works using the transmit-time working theory. One ultrasonic sensor sends an ultra-sound wave and another sensor receives this wave. The transmit time from send to receive has a direct relationship with the flow speed. The converter then calculates the flow speed based on the transmit time. Can be installed onto an instrument box easily via DIN rail. It has no pressure loss and measurement is not affected by temperature or pressure changes. Accuracy can reach ±1%. It has an LCD display and communicates via 4-20mA, pulse or RS485 outputs. It also has reliable empty full tube detection technology. Excellent low flow rate measurement performance. Turndown ratio 100:1.

Modular Ultrasonic Flow Meter - Features
- Accuracy: ±1% of reading at rates >0.2 mps
- Repeatability: 0.2%
- Principle: Transmit time
- Velocity: ±32m/s
- Pipe Size: DN15mm-DN6000mm
Read more
QUICK VIEW
Open Channel Radar Flowmeter | RWRadarFlow

Open Channel Radar Flowmeter - Overview

This radar flow meter is suitable for measuring water levels and flow velocity of open channels, rivers, reservoir gates, pipe networks of subterranean river courses and irrigation channels. This product can effectively monitor the change status of the water level, velocity and flow, to provide accurate flow information for the monitoring unit. It comes with a variety of communication interfaces. The radar flow measurement system is suitable for all-weather, automatic collection and real-time monitoring of open channel, natural river flow and water data.

Open Channel Radar Flowmeter - Features
- Velocity Measurement Range: 0.05 ～ 15m/s (Related to water flow)
- Velocity Measurement Accuracy: ±1% FS, ±2.5% of reading
- Transmitting Frequency: 24.000 ～ 24.250GHz
- Distance Accuracy: ±1cm
- Protection Degree： IP66
Read more
QUICK VIEW
Paddle Wheel Flow Indicator | DS1911

Paddle Wheel Flow Indicator - Overview

This flow indicator can be mounted in any orientation and operates over a wide flow range. It is ideal for visually checking the flow, presence, colour and condition of a liquid. Suitable for use with both clear and cloudy liquids.

Paddle Wheel Flow Indicator - Features
- Suitable for cloudy or clear liquids
- High visibility spinner
- Ideal for flow indication in full pipes
- Mountable in any pipe position
- High-quality, robust design
- High-pressure option up to 60 bar
Read more
QUICK VIEW
Pre-Set Flow Controller | DS1541

Pre-Set Flow Controller - Overview

The Pre-Set flow control valves provide a constant flow rate independent of line pressure changes. It is suitable for pure liquid applications. Operation is by means of a rubber orifice that reduces in size as the pressure increases, thus balancing the flow. Installation is possible on any plane to fit existing pipework. Available either screwed or as a wafer to fit between flanges. All materials are WRC-approved for use in drinking water systems.

Pre-Set Flow Controller - Features
- Easy installation and operation
- Maintains controlled water supply irrespective of pressure fluctuation
- Reduces pressure surge and water wastage
- Eliminates costly water bills
Read more
QUICK VIEW
Turbine Liquid Flow Meter | LWGY

Turbine Liquid Flow Meter- Overview

The Turbine Liquid Flow Meter is an economical flow meter which offers two accuracy classes, 0.5%R and 0.2%R. Its simple structure allows a small pressure loss and it has virtually no maintenance requirements. The Flange Type has two converter options: Compact Type (Direct Mount) and Remote Type. It is suitable for use with viscous fluids, non-conductive fluids, solvents, liquified gases and high-pressure applications. Applications include petrochemical and water industries. It operates reliably in both high and low flow rates and produces excellent repeatability as low as 0.05%.

Turbine Liquid Flow Meter - Features
- Digital Communication: MODBUS RS485; HART
- Power Supply: 24V DC/3.6V Lithium Battery
- Accuracy: ±0.5% (±0.2% Optional)
- Sensor Material: SS304 (SS316L Optional)
- Signal Output: Pulse, 4-20mA, (Alarm Optional)
Read more
QUICK VIEW
Ultrasonic Flow Sensor Heat Meter | GF U3000

Ultrasonic Flow Sensor Heat Meter - Overview

The U3000 provides various options for high-accuracy measurement for permanent ultrasonic Clamp-On flow metering. Options are available for high-accuracy measurement, power, communication, pipe dimension, data storage & export. It can be customised to almost any application need. The type U3000 V2 Heatmeter (HM) is an ultrasonic permanent clamp-on heatmeter / energy meter / BTU meter. Additionally, it is equipped with Pt100 temperature sensors to calculate the energy of a heat-exchanging system. The 'Clamp-On' concept allows for easy installation without process disruption. Compact, robust and reliable. Designed for long-term use in industrial applications. It can be used on PVDF, ABS, PVC, CPVC, PP, PE, PB-Instaflex, iron and steel pipes. Processes can be monitored directly by a higher-level system via 4 to 20 mA, Modbus, pulse or frequency output.

Ultrasonic Flow Sensor Heat Meter - Features
- Large, easy-to-read graphic display with backlighting
- Easy to install
- 'Clamp-On' design
- Datalogger option (up to 100 million data points)
- USB port for easy data export
- Analog, digital Modbus, pulse & alarm outputs
- Reynolds number correction
- Compatible with almost all pipe types
- Automatic energy calculation with two Pt100 temperature sensors (HM version)
Read more
QUICK VIEW
Adjustable Plastic Paddle Flow Switch | Platon DS1401

Adjustable Plastic Paddle Flow Switch - Overview

This paddle flow switch is ideal for protecting unattended equipment from damage or loss of production. Operation is simple and dependable. In most applications, the switch is usually off when there is sufficient flow of liquid or air. When the flow stops, the vane spring moves the vane, actuating a single pole double throw switch rated at 5A 120/250Vac to start or stop a motor, pump, or engine, or to operate a damper or valve; shut down a burner or actuate an alarm or signal. It has a leakproof body and vane constructed of tough durable Polyphenylene Sulfide and has excellent chemical resistance. The full-size trimmable vane is provided with moulded-in graduations allowing for installation in pipes ranging from 1 inch to 6 inches in diameter. The control is recognised as an industrial motor controller per UL standard 508 and is suitable for mounting in a protected environment. Applications include chemical processing, air conditioning, refrigeration, heating systems, cooling systems, machinery, liquid transfer systems, water treatment, food processing and machine tools. An IP 65 connection head option is available for weatherproof applications.

Adjustable Plastic Paddle Flow Switch - Features
Ideal for protection of unattended equipment

Simple and dependable

Leak proof body

Excellent chemical resistance

Suitable for mounting in a protected environment

Adjustable
Read more
QUICK VIEW

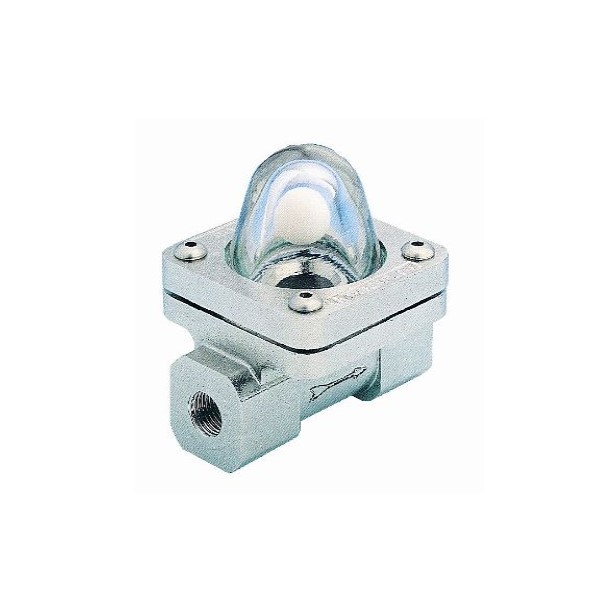

Ball Flow Indicator | DS1921

Ball Flow Indicator - Overview

This mechanical flow indicator is suitable for gases and liquids. The ball is lifted by the flow into the glass dome, providing an immediate moving indication of flow. When no flow is apparent, the ball sits in the valve seat below the glass dome. This product is suitable for horizontal pipelines only.

Ball Flow Indicator - Features
- Clear indication that flow is present
- High temperature/pressure capability
- Excellent chemical compatibility
- Suitable for use on condensate, liquids and gases
- Unrivalled flow and pressure drop performance
Read more
QUICK VIEW
Coriolis Flow Meter | RWCMF

Coriolis Flow Meter - Overview

The Coriolis mass flow meter is designed according to the micro motion and Coriolis principle. It is a leading precision flow and density measurement solution offering the most accurate and repeatable mass flow measurement for virtually any process fluid. It has exceptionally low pressure drop. Coriolis flow meters are considered to be true mass flow meters because they tend to measure mass flow directly, while other flow meter techniques measure volume flow. Used with a batch controller, it can directly control the valve in two stages. Applications include: Petroleum, such as crude oil, coal slurry, lubricant and other fuels; high viscosity materials, such as asphalt, heavy oil and grease; suspended and solid particulate matter materials, such as cement slurry and lime slurry; easy-to-solidified materials, such as asphalt; accurate measurement of medium- and high-pressure gases, such as CNG oil and gas, and micro-flow measurements, such as fine chemical and pharmaceutical industries.

Coriolis Flow Meter - Features
- Flow accuracy: ±0.2% Optional ±0.1%
- Diameter: DN3~DN200mm
- Flow repeatability: ±0.1~0.2%
- Density measuring: 0.3~3.000g/cm3
- Density accuracy: ±0.002g/cm3
Read more
QUICK VIEW
Flow Totalizer | DPM04

Flow Totalizer - Overview

The FlowTotalizer is a multifunctional flow monitoring instrument. This product can be used in connection with air or liquid flow transmitters. It can display instantaneous flow measured and calculate cumulative flow over time. The DPM04 can accept common output signals and features RS-485 communication, relay control, and signal retransmission functions. Applications include: monitoring instantaneous flow rates to ensure production process stability; displaying cumulative flow over specific periods for energy management, billing, and cost analysis; and process control or instant alerts to prevent disruptions or equipment damage.

Flow Totalizer - Features
- 2" LCD screen for clear data display
- Instantaneous and cumulative flow monitoring
- Multiple signal options for flexibility
- RS-485 communication for digital integration
- Relay output for process control
https://www.youtube.com/watch?v=2ECrUqmc0uI&t=1s

Read more
QUICK VIEW
Glass Tube Variable Area Flowmeters | DS3601-100mm

Glass Tube Variable Area Flowmeters - Overview

This Glass Tube Flowmeter uses a 100mm scale length borosilicate glass tube and a float. As it is based on the variable area (VA) principle, these flowmeters provide clear, simple and reliable operation. They are individually scaled and calibrated according to the customer's requirements. The fluid or gas flows vertically upwards through the tapered glass tube, causing the float to rise to an equilibrium position. The flow rate is measured by reading the top edge of the float against the scaled tube. Suitable for use with gasses or water (eg. cracked ammonia, helium, hydrogen, methane, nitrogen, oxygen, propane).

Glass Tube Variable Area Flowmeters - Features
- Instantaneous response
- Simple and reliable operation
- Low line pressure loss
- High resolution
- Custom scales available on request
