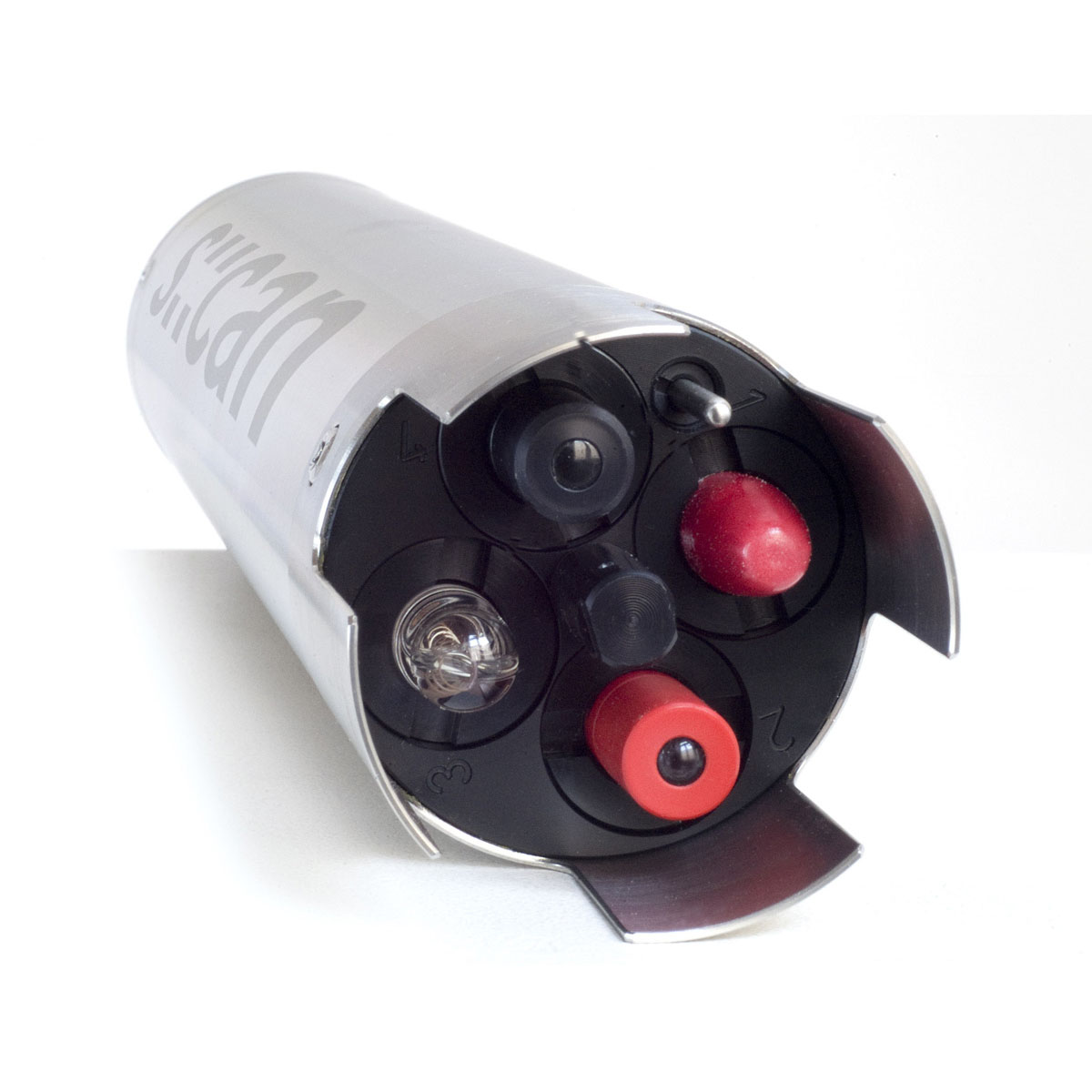

Ammonium Meters

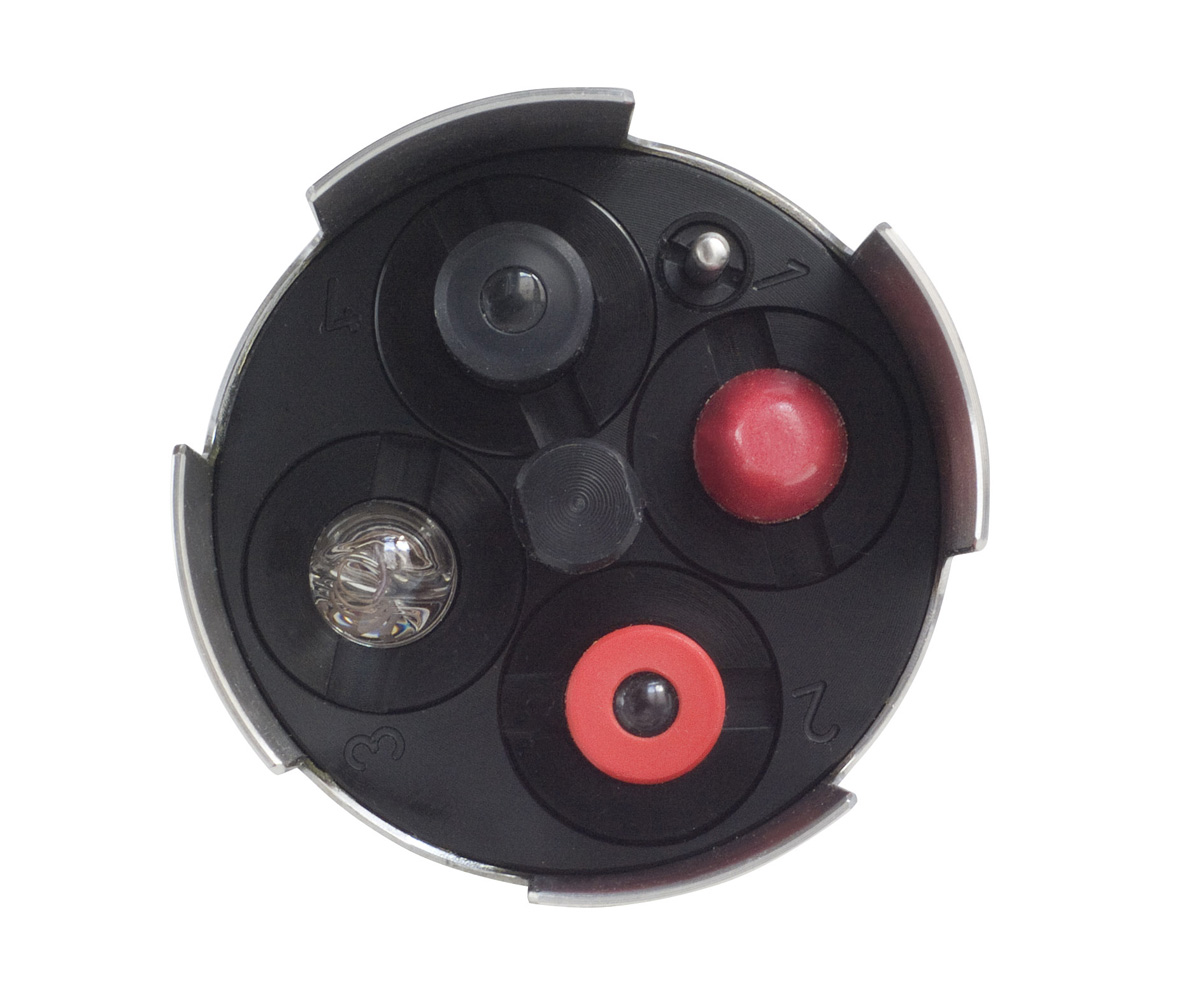

Anlge View of electrodes of ammonium probe NH4

Ammonium Sensor | ammo::lyser pro

Ammonium Sensor  – Overview

A multi-parameter probe for the online measurement of ammonium. The pro version has potassium compensation for more accurate results.  This reliable device outclasses conventional analysers in terms of measurement stability and lifespan. Precision is guaranteed by real time compensation of the ammonium value with temperature, pH and potassium and a high performance reference electrode.

ammo::lyser™ III pro: monitors NH4-N and temperature
ammo::lyser™ IV pro+pH monitors NH4-N, temperature and pH (with potassium compensation)
ammo::lyser™ IV pro+NO3-N monitors NH4-N, temperature and NO3-N (with potassium compensation)

Ammonium Sensor – Features

  • s::can plug & measure
  • measuring principle: ISE (ion selective electrodes)
  • optional potassium compensation
  • multi parameter probe
  • long term stability
  • factory pre-calibrated
  • automatic cleaning with compressed air
  • unique, non-porous / non-leaking reference electrode
  • ISE refurbishment
  • easy & quick mounting and measurement
  • mount directly in the media (InSitu) or in flow cell (monitoring station)
  • operation via s::can terminals & s::can software
  • automatic temperature compensation, pH compensation possible
  • ideal for surface water, ground water, drinking water, and waste water
  • minimal maintenance
  • life time of ISE: typically 6 month (for applications <1mg/l NH4-N), resp. 1 to 2 years (for applications >1mg/l NH4-N)

Drinking Water

Waste Water

SKU: ammo::lyser pro Categories: , , , Tags: , , , , , ,

Description

Ammonium Sensor | ammo::lyser pro

measuring principle ISE
measuring principle detail NH4-N: ionophore membrane
K: ionophore membrane
pH: non-porous reference electrode
NO3-N: ionophore membrane
measuring range application 0.1 … 1000 mg/l NH4-N (factory precalibrated: 0.1 to 20 mg/l NH4-N)
resolution NH4-N: 0.02 19.99 mg/l
NH4-N: 20.0 99.9 mg/l
NH4-N: 100 1000 mg/l
T: 0.1 °C
accuracy (standard solution) NH4-N: +/-3% of measuring range or +/-0.1mg/l* (*whichever is greater)
automatic compensation cross sensitivities E-532-pro-xxx: temp, K
E-532-pro-pH-xxx: temp, pH, K
E-532-pro-NO3-N-xxx: temp, K
precalibrated ex-works all parameters
response time 60 … 0 sec.
integration via con::cube
con::nect
con::lyte
power supply 10 … 30 VDC
power consumption (typical) 0.72 W
interface to s::can terminals sys plug (IP67), RS485
cable length 7.5 m fixed cable (-075) or plug connection (-000)
cable type PU jacket
housing material stainless steel 1.4571, POM-C
weight (min.) 2.7 kg
dimensions (Ø x l) 60 x 326 mm
operating temperature 0 … 60 °C
operating pressure 0 … 400 mbar
installation / mounting submersed or in a flow cell
process connection bayonet
flow velocity 0.01 m/s (min.) 3 m/s (max.)
automatic cleaning media: compressed air permissible
pressure: 2 … 4 bar
air volume: 3 … 9 l per cleaning
cleaning duration: 2 … 10 sec. per cleaning
cleaning interval: 30 to 120 min., depending on application
delay: 10 to 30 sec.
conformity – EMC EN 50081-1 EN 50082-1 EN 60555-2 EN 60555-3
conformity – safety EN 61010-1
storage temperature (electrode) -5 … 30 °C
storage temperature (sensor) 0 … 60 °C
protection class (-000) IP67
protection class (-075) IP68

Waste Water Ammonium Factory Calibrations

municipal WWTP influent
concentration ranges and sensor/probe type for this application
NH4-N [mg/l] NO3-N [mg/l] K [mg/l] pH [pH] temperature [°C] part number
ammo::lyser III pro (NH4-N, K, temp) min. 10 0 0 E-532-pro-000 / -075
max. 1000 1000 60
ammo::lyser IV pro+NO3-N (NH4-N, NO3-N, K, temp) min. 10 0 0 0 E-532-pro+NO3-N-000 / -075
max. 1000 500 1000 60
ammo::lyser IV pro+pH (NH4-N, pH, K, temp) min. 10 0 2 0 E-532-pro+pH-000 / -075
max. 1000 1000 12 60



municipal WWTP aeration
concentration ranges and sensor/probe type for this application
NH4-N [mg/l] NO3-N [mg/l] K [mg/l] pH [pH] temperature [°C] part number
ammo::lyser III pro (NH4-N, K, temp) min. 0.3 0 0 E-532-pro-000 / -075
max. 30 500 60
ammo::lyser IV pro+NO3-N (NH4-N, NO3-N, K, temp) min. 0.3 0 0 0 E-532-pro+NO3-N-000 / -075
max. 30 200 500 60
ammo::lyser IV pro+pH (NH4-N, pH, K, temp) min. 0.3 0 2 0 E-532-pro+pH-000 / -075
max. 30 500 12 60



municipal WWTP effluent
concentration ranges and sensor/probe type for this application
NH4-N [mg/l] NO3-N [mg/l] K [mg/l] pH [pH] temperature [°C] part number
ammo::lyser III pro (NH4-N, K, temp) min. 0.1 0 0 E-532-pro-000 / -075
max. 10 100 60
ammo::lyser IV pro+NO3-N (NH4-N, NO3-N, K, temp) min. 0.1 0 0 0 E-532-pro+NO3-N-000 / -075
max. 10 100 100 60
ammo::lyser IV pro+pH (NH4-N, pH, K, temp) min. 0.1 0 4 0 E-532-pro+pH-000 / -075
max. 10 100 10 60

Clean Water Ammonium Factory Calibrations

surface water
concentration ranges and sensor/probe type for this application
NH4-N [mg/l] NO3-N [mg/l] K [mg/l] pH [pH] temperature [°C] part number
ammo::lyser III pro (NH4-N, K, temp) min. 0.1 0 0 E-532-pro-000 / -075
max. 2 10 30
ammo::lyser IV pro+NO3-N (NH4-N, NO3-N, K, temp) min. 0.1 0 0 0 E-532-pro+NO3-N-000 / -075
max. 2 200 10 30
ammo::lyser IV pro+pH (NH4-N, pH, K, temp) min. 0.1 0 4 0 E-532-pro+pH-000 / -075
max. 2 10 10 30
