Drinking Water Monitoring Pipe Scan

Drinking Water Monitoring Pipe Scan

Call for price

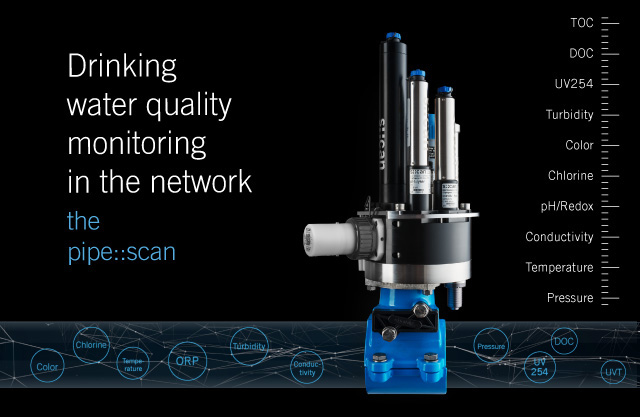

Overview of pipe::scan Drinking water quality monitoring in the network

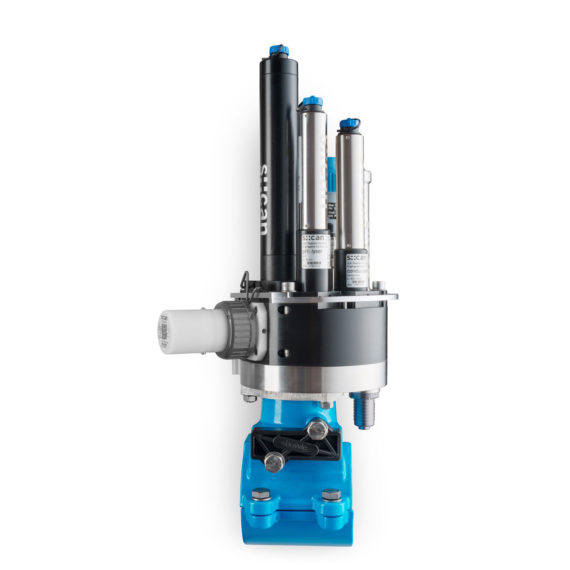

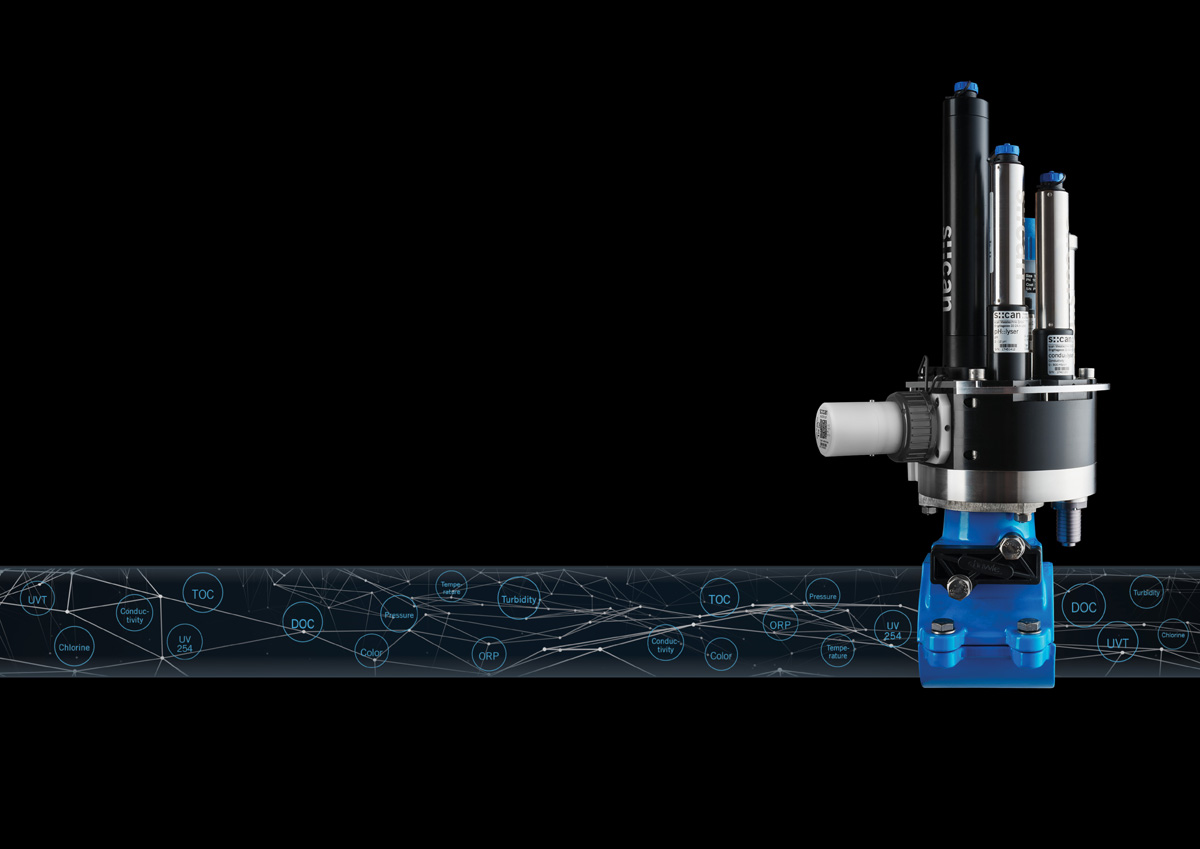

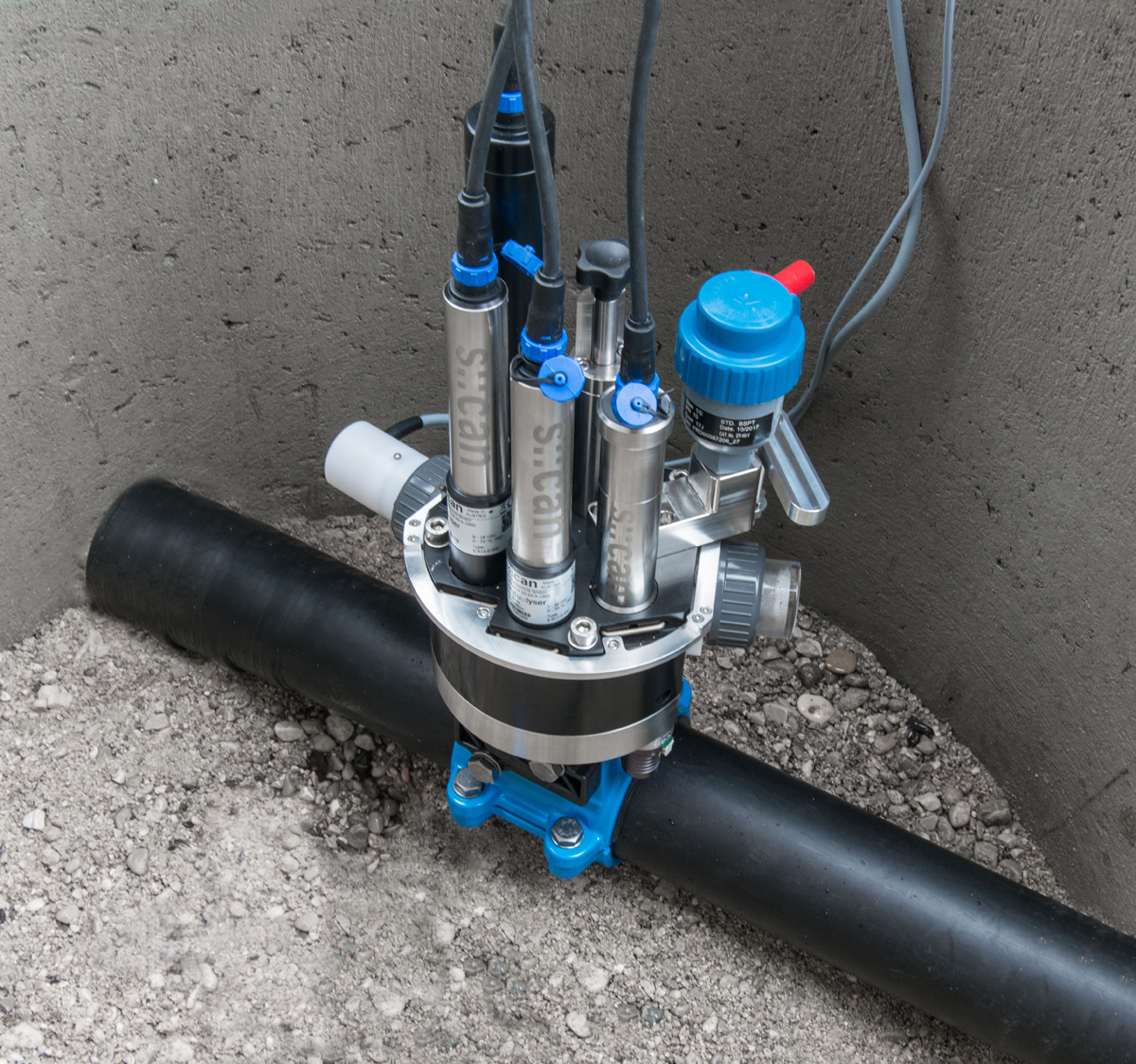

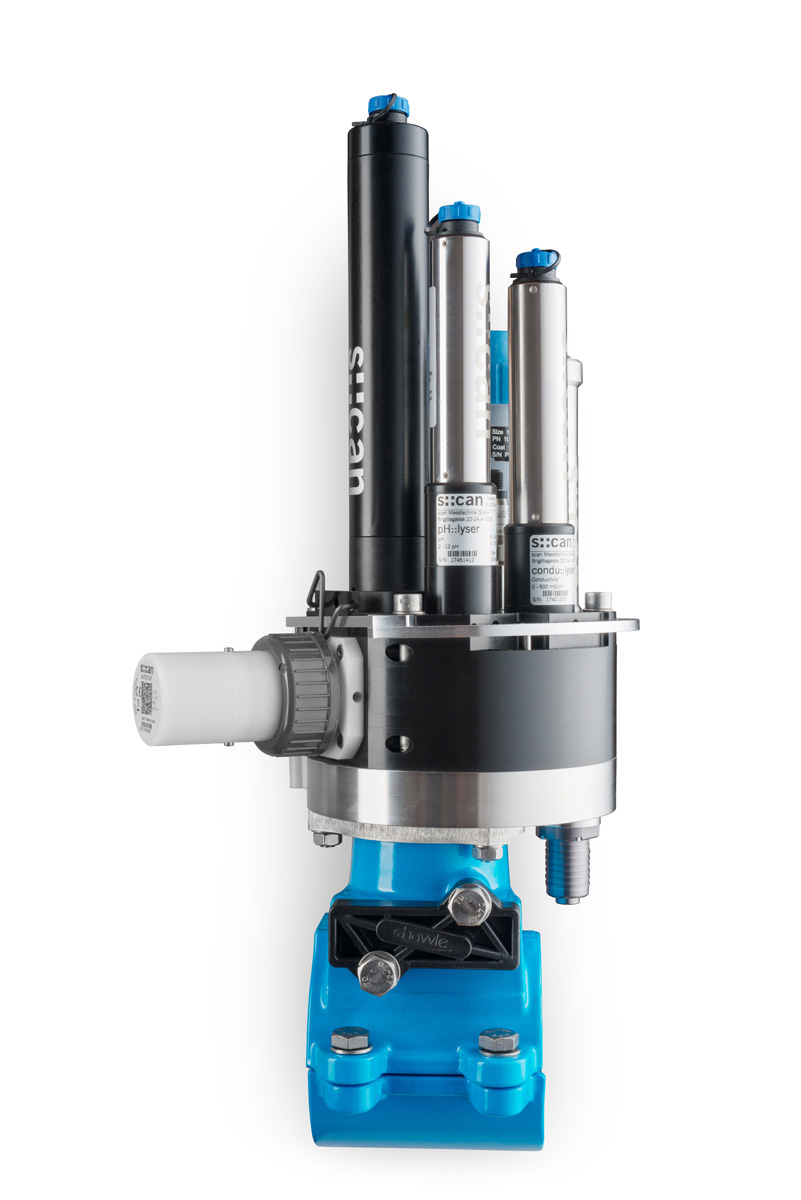

The pipe::scan is a sensor system for monitoring drinking water quality in pipes under pressure. It measures up to 10 parameters in one device: TOC, DOC, UV254, Turbidity, Color, Chlorine, pH/Redox, Conductivity, Temperature and Pressure. The water quality data can be sent to any central database via almost any protocol. Multiple pipe::scans are the ideal solution to monitor drinking water at any point in the network.

The con::cube is a compact, powerful and versatile terminal for data acquisition and station control. Integrating the newest processor technology, con::cube’s very flexible options for interfacing to sensors, SCADA or any central database system make it perfect for remote monitoring. Due to its low power consumption, this terminal fits the requirements for operation in decentralized installation sites.

Features of the pipe::scan:

  • Accurate measurement in perfect comparable to standardized lab reference… not just ”trending”
  • Organics and Turbidity monitoring
  • Totally flow-independent, even works under stagnating conditions
  • Hot-maintenance: without interrupting the flow/pressure, and for each sensor individually
  • Full-scale event detection with real-time alarms within the drinking water distribution network
  • 6 months service time: Efficient, reliable stand-alone operation without maintenance

Description

Part Number pipe::scan Systems
P-103-PIPESCAN pipe::scan system:  FCl, Pressure, Temp
P-104-PIPESCAN pipe::scan system: FTU, FCl, pH, Pressure, Temp
P-105-PIPESCAN pipe::scan system: FCl, pH, EC, Pressure, Temp
P-106-PIPESCAN pipe::scan system: FTU, FCl, pH, EC, Pressure, Temp, autobrush
P-107-PIPESCAN pipe::scan system: UV254, FTU, FCl, pH, EC, Pressure, Temp, autobrush
P-108-PIPESCAN pipe::scan system: TOC, UV254, FTU, FCl, pH, EC, Pressure, Temp, autobrush
P-109-PIPESCAN pipe::scan system: Colour, TOC, UV254, FTU, FCl, pH, EC, Pressure, Temp, autobrush



Name Specification Remark
Part-no. F-450-PS-BASE
Dimensions 220 / 450 / 340 mm8.66 / 17.7 / 13.39 inch W / H / D
Required space 250 / 750 / 350 mm W / H / D
Weight approx. 8.0 kg
Material in contact with water POM, stainless steel, PMMA, fine brass EN12165 and EN12164,PTFE, PA, PP, EPDM o-rings
Material other depends on used sensors see sensor manual
Environment rating (IP) IP 67
Storage humidity 0 to 95 % not condensing
Operation temperature 0 (non-freezing) to + 40°C (32 to 104°F) no direct sunlight
Storage temperature base unit -20 to 60°C (-4 to 140°F) Device has to be acclimatized to operation temperature before initial operation
Storage temperature sensors 0 to + 45°C (32 to 113°F)
Operation pressure 1 to 10 bar 14.5 to 145 psi pipeline must be vented
Operation pH range 4 – 12 pH
Installation on top of pipe max. +/- 2°
Mounting on 2? Hawle pipe saddle to be ordered separately
Process connection ball valve for manual sampling IG 1/4″ EN10206-1
Power supply via con::cube
Power consumption 14 W (typical)35 W (max) depending on configuration depending on configuration
Drinking water safety certificate ACS (France)
Conformity – EMC EN 61326-1
Maintenance interval pump, valves, brush, filter and sensors have to be maintained / replaced depending on application Enclosure has to be replaced regularly (depending on the environmental conditions)

Brand

s::can

s-can Logo

Additional information

Options

P-103-PIPESCAN, P-104-PIPESCAN, P-105-PIPESCAN, P-106-PIPESCAN, P-107-PIPESCAN, P-108-PIPESCAN, P-109-PIPESCAN
