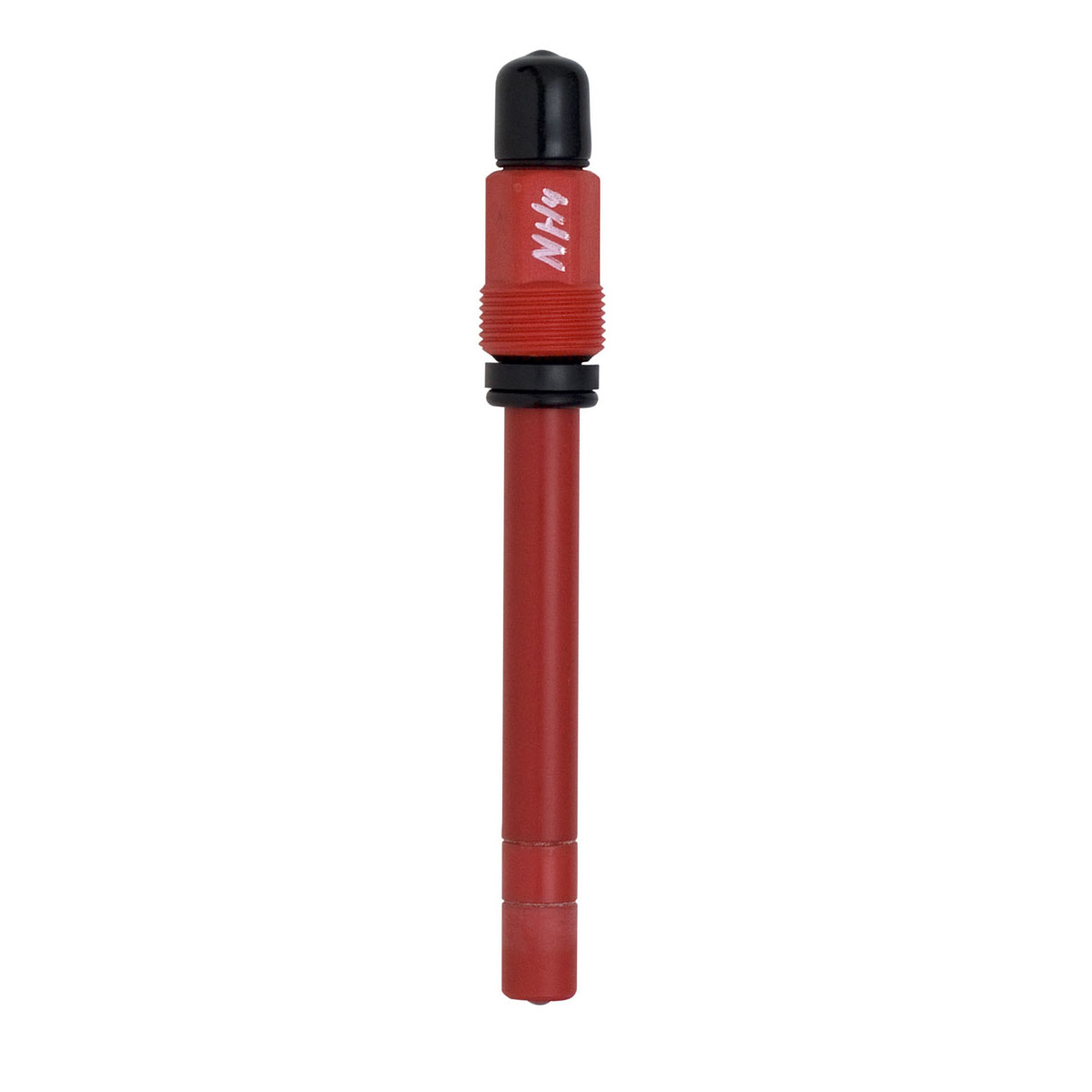

View of electrodes of ammonium probe NH4
Anlge View of electrodes of ammonium probe NH4

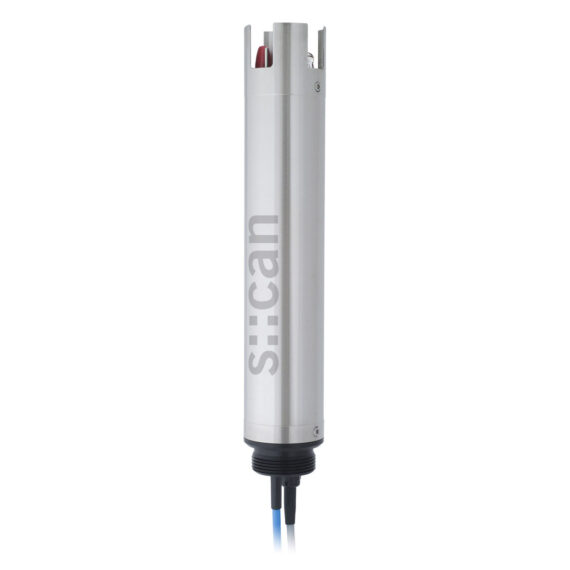

Ammonium Probe Profile view

Ammonium probe | ammo::lyser eco

Call for price

Overview of Ammonium (NH4-N) Probe

A multi-parameter probe for the online measurement of ammonium. It is an absolutely reliable device outclassing conventional analyzers in terms of measurement stability and lifetime. Precision is guaranteed by real time compensation of the ammonium value with temperature, pH and potassium and a high performance reference electrode.

ammo::lyser II eco: monitors NH4-N and temperature
ammo::lyser III eco+pH:  pH, NH4-N and temperature
ammo::lyser III eco+NO3-N:  NO3-N, NH4-N and temperature
ammo::lyser III eco+Cl-: Chloride, NH4-N and temperature
ammo::lyser IV eco+pH+NO3-N: pH,  NO3-N, NH4-N and temperature
ammo::lyser IV eco+pH+Cl-: pH, chloride, NH4-N and temperature

Features of Ammonium probe

  • s::can plug & measure
  • measuring principle: ISE (ion-selective electrodes) – with optional potassium compensation
  • multi-parameter probe
  • long term stable, factory calibrated
  • automatic cleaning with compressed air
  • unique, non-porous / non-leaking reference electrode for technically unrivalled and consistent performance
  • ISE refurbishment – the easy way to minimize maintenance
  • easy & quick mounting and measurement directly in the media (InSitu) or in flow cell (monitoring station)
  • operation via s::can terminals & s::can software
  • automatica temperature compensation, pH compensation possible
  • ideal for surface water, ground water and drinking water, also for applications in waste water
  • minimal maintenance
  • life time of ISE: typically 6 month (for applications <1mg/l NH4-N), resp. 1 to 2 years (for applications >1mg/l NH4-N)
Clear
SKU: E-525-eco Categories: , , , Tags: , , , , ,
s-can logo s::can

Description

Ammonium Probe Specifications
Technical Specification
measuring principle ISE
measuring principle detail NH4-N: ionophore membrane
pH: non-porous reference electrode
NO3-N: ionophore membrane
Cl-: ionophore membrane
measuring range application 1 … 1000 mg/l NH4-N and Cl- (factory precalibrated: 1 to 100 mg/l NH4-N)
resolution NH4-N: 0.02 19.99 mg/l NH4-N: 20.0 99.9 mg/l NH4-N: 100 1000 mg/l T: 0.1 °C
accuracy (standard solution) NH4-N: +/-3% of measuring range or +/-0.5mg/l* (*whichever is greater)
automatic compensation cross sensitivities E-532-eco-xxx: temp E-532-eco-pH-xxx: temp, pH
E-532-eco-NO3-N-xxx: temp E-532-eco-NO3-N-pH-xxx: temp, pH
E-532-eco-CL-xxx: temp E-532-eco-CL-pH-xxx: temp, pH
precalibrated ex-works all parameters
response time 0 … 60 sec.
integration via con::cube con::lyte con::nect
power supply 10 … 30 VDC
power consumption (typical) 0.72 W
interface to s::can terminals sys plug (IP67), RS485
cable length 7.5 m fixed cable (-075) or plug connection (-000)
cable type PU jacket
housing material stainless steel 1.4571, POM-C
weight (min.) 2.7 kg
dimensions (Ø x l) 60 x 326 mm
operating temperature 0 … 60 °C
operating pressure 0 … 400 mbar
installation / mounting submersed or in a flow cell
process connection bayonet
flow velocity 0.01 m/s (min.), 3 m/s (max.)
automatic cleaning media: compressed air permissible pressure: 2 … 4 bar air
volume: 3 … 9 l per cleaning
duration: 2 … 10 sec. per cleaning cleaning
interval: 30 to 120 min., depending on application delay: 10 to 30 sec.
conformity – EMC EN 50081-1, EN 50082-1, EN 60555-2, EN 60555-3
conformity – safety EN 61010-1
storage temperature (electrode) -5 … 30 °C
storage temperature (sensor) 0 … 60 °C
protection class (-000) IP67
protection class (-075) IP68
Surface Water Ammonium Factory Calibrations
municipal WWTP effluent
concentration ranges and sensor/probe type for this application
NH 4 -N[mg/l] NO 3 -N[mg/l] pH[pH] Cl-[mg/l] temperature[°C] part number
ammo::lyserTM II eco min. 0.1 0 E-532-eco-000 / -075
(NH 4 -N, temp) max. 10 60
ammo::lyserTM III eco+Cl- min. 0.1 0 0 E-532-eco-CL-000 / -075
(NH 4 -N, temp, Cl-) max. 10 100 60
ammo::lyserTM III eco+NO 3 -N min. 0.1 0 0 E-532-eco-NO 3 -N-000 / -075
(NH 4 -N, temp, NO 3 -N) max. 10 100 60
ammo::lyserTM III eco+pH min. 0.1 4 0 E-532-eco-pH-000 / -075
(NH 4 -N, temp, pH) max. 10 10 60
ammo::lyserTM IV eco+Cl- min. 0.1 4 0 0 E-532-eco-CL-pH-000 / -075
(NH 4 -N, temp, Cl-, pH) max. 10 10 100 60
ammo::lyserTM IV eco+NO 3 -N+pH min. 0.1 0 4 0 E-532-eco-NO 3 -N-pH-000 / -075
(NH 4 -N, temp, NO 3 -N, pH) max. 10 100 10 60



municipal WWTP aeration
concentration ranges and sensor/probe type for this application
NH 4 -N[mg/l] NO 3 -N[mg/l] pH[pH] temperature[°C] part number
ammo::lyserTM II eco min. 0.3 0 E-532-eco-000 / -075
(NH 4 -N, temp) max. 30 60
ammo::lyserTM III eco+NO 3 -N min. 0.3 0 0 E-532-eco-NO 3 -N-000 / -075
(NH 4 -N, temp, NO 3 -N) max. 30 200 60
ammo_lyser_III_eco_pH min. 0.3 2 0 E-532-eco-pH-000 / -075
(NH 4 -N, Temp, pH) max. 30 12 60
ammo::lyserTM IV eco+NO 3 -N+pH min. 0.3 0 2 0 E-532-eco-NO 3 -N-pH-000 / -075
(NH 4 -N, temp, NO 3 -N, pH) max. 30 200 12 60
municipal WWTP effluent



municipal WWTP influent
concentration ranges and sensor/probe type for this application
NH 4 -N[mg/l] NO 3 -N[mg/l] pH[pH] Cl-[mg/l] temperature[°C] part number
ammo::lyserTM II eco min. 10 0 E-532-eco-000 / -075
(NH 4 -N, temp) max. 1000 60
ammo::lyserTM III eco+Cl- min. 10 0 0 E-532-eco-CL-000 / -075
(NH 4 -N, temp, Cl-) max. 1000 500 60
ammo::lyserTM III eco+NO 3 -N min. 10 0 0 E-532-eco-NO 3 -N-000 / -075
(NH 4 -N, temp, NO 3 -N) max. 1000 500 60
ammo::lyserTM III eco+pH min. 10 2 0 E-532-eco-pH-000 / -075
(NH 4 -N, temp, pH) max. 1000 12 60
ammo::lyserTM IV eco+Cl- min. 10 2 0 0 E-532-eco-CL-pH-000 / -075
(NH 4 -N, temp, Cl-, pH) max. 1000 12 500 60 © s::can Messtechnik GmbH
ammo::lyserTM IV eco+NO 3 -N+pH min. 10 0 2 0 E-532-eco-NO 3 -N-pH-000 / -075
(NH 4 -N, temp, NO 3 -N, pH) max. 1000 500 12 60
Clean Water Ammonium Factory Calibrations
surface water
concentration ranges and sensor/probe type for this application
NH 4 -N[mg/l] NO 3 -N[mg/l] pH[pH] Cl-[mg/l] temperature[°C] part number
ammo::lyserTM II eco min. 0.1 0 E-532-eco-000 / -075
(NH 4 -N, temp) max. 20 30
ammo::lyserTM III eco+Cl- min. 0.1 0.1 0 E-532-eco-CL-000 / -075
(NH 4 -N, temp, Cl-) max. 20 200 30
ammo::lyserTM III eco+NO 3 -N min. 0.1 0.1 0 E-532-eco-NO 3 -N-000 / -075
(NH 4 -N, temp, NO 3 -N) max. 20 200 30
ammo::lyserTM III eco+pH min. 0.1 4 0 E-532-eco-pH-000 / -075
(NH 4 -N, temp, pH) max. 20 10 30
ammo::lyserTM IV eco+Cl- min. 0.1 4 0.1 0 E-532-eco-CL-pH-000 / -075
(NH 4 -N, temp, Cl-, pH) max. 20 10 200 30
ammo::lyserTM IV eco+NO 3 -N+pH min. 0.1 0.1 4 0 E-532-eco-NO 3 -N-pH-000 / -075
(NH 4 -N, temp, NO 3 -N, pH) max. 20 200 10 30



drinking water
concentration ranges and sensor/probe type for this application
NH 4 -N[mg/l] NO 3 -N[mg/l] pH[pH] Cl-[mg/l] temperature[°C] part number
ammo::lyserTM II eco min. 0.02 0 E-532-eco-000 / -075
(NH 4 -N, temp) max. 2 30
ammo::lyserTM III eco+Cl- min. 0.02 0.1 0 E-532-eco-CL-000 / -075
(NH 4 -N, temp, Cl-) max. 2 100 30
ammo::lyserTM III eco+NO 3 -N min. 0.02 0.1 0 E-532-eco-NO 3 -N-000 / -075
(NH 4 -N, temp, NO 3 -N) max. 2 200 30
ammo::lyserTM III eco+pH min. 0.02 4 0 E-532-eco-pH-000 / -075
(NH 4 -N, temp, pH) max. 2 10 30
ammo::lyserTM IV eco+Cl- min. 0.02 4 0 0 E-532-eco-CL-pH-000 / -075
(NH 4 -N, temp, Cl-, pH) max. 2 10 100 30
ammo::lyserTM IV eco+NO 3 -N+pH min. 0.02 0.1 4 0 E-532-eco-NO 3 -N-pH-000 / -075
(NH 4 -N, temp, NO 3 -N, pH) max. 2 200 10 30

Brand

s::can

s-can logo s::can

Additional information

Options

ammo::lyser eco, 7,5 m cable, ammo::lyser eco, plug connection, ammo::lyser eco+pH, 7,5 m cable, ammo::lyser eco+pH, plug connection, ammo::lyser eco+NO3, 7,5 m cable, ammo::lyser eco+NO3, plug connection,, ammo::lyser eco+Chloride, plug connection, ammo::lyser eco+Chloride, 7,5 m cable, ammo::lyser eco+Chloride+pH,incl. 7,5 m cable, ammo::lyser eco+Chloride+pH, plug connection, ammo::lyser eco+NO3+pH, 7,5 m cable, ammo::lyser eco+NO3+pH, plug connection
