Overview of Drinking Water Quality Monitoring | Micro-Station.

Modular online monitoring station combines s::can instruments in a compact and versatile system for easy plug and play installation. The user only has to connect water supply and -discharge (“plug & measure”) in order to receive a previously unheard of parameters immediately. The s::can micro::station is designed for Online monitoring of water quality parameters, in particular a focus on Turbidity and Total Organic Carbons, Dissolved Organic Carbons in clean media, such as drinking water. The components depending on the station model could include a – spectro::lyser, s::can probes and controller  all factory assembled with required flow cells, mounting fittings and pipework on a compact panel. The micro::station is a s::can solution for water analysis- compact and easy like never before.

Can be used for process control with many applications utilizing a forward feed process control “predictive dosing”

Micro-station Water Quality Monitoring Features:

  • Plug and play setup.
  • No Reagents  or titration system
  • Minimal maintenance.
  • Event Detection
    • Event detection module
    • Online Validation
    • Spectral Alarm
  • Online Measurement of multiple Parameters
    • NTU/FTU – Turbidity
    • Color
    • UV254
    • TOC – Total Organic Carbons
    • DOC – Dissolved Organic Carbons
    • NO3
    • NO2
    • Temperature
    • NH4
    • pH
    • K
    • Conductivity
    • Free or Total Chlorine
    • H2O2
    • CLO2
    • PAA

Description

micro::station – Plug and Measure

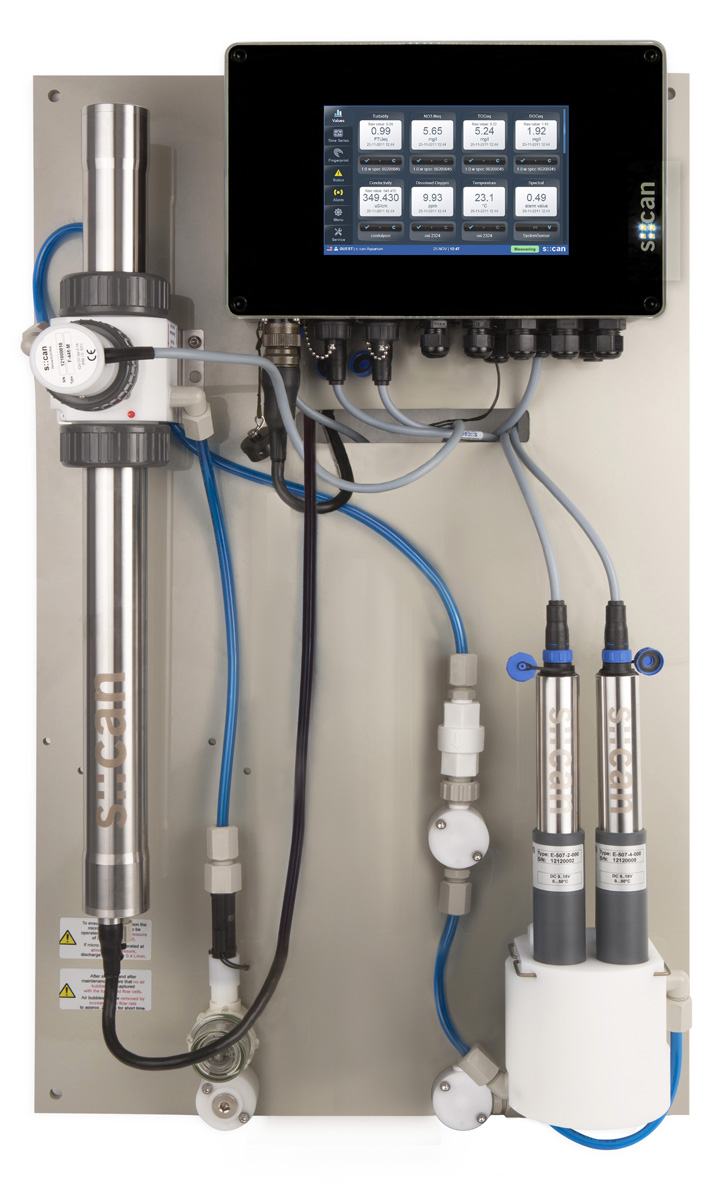

M-100-micro-s NTU/FTU, NO3, TOC, DOC, pH, EC, Temp, Alarms (2 free sensorspaces), mounted on panel with 2 FlowCells, AutoBrush, tubes and fittings completely assembled, flow-indicator, and con::cube terminal; event detection software included.
M-100-micro-m NTU/FTU, NO3, TOC, DOC, NH4, pH, Temp, Alarms, mounted on panel with 2 FlowCells, AutoBrush, tubes and fittings completely assembled, flow-indicator, and con::cube terminal; event detection software included.
M-100-micro-l NTU/FTU, NO3, TOC, DOC, pH, EC, Temp, one disinfection parameter (1 free sensorspace), Alarms, mounted on panel with 2 FlowCells, AutoBrush, tubes and fittings completely assembled, flow-indicator, and con::cube terminal; event detection software included.

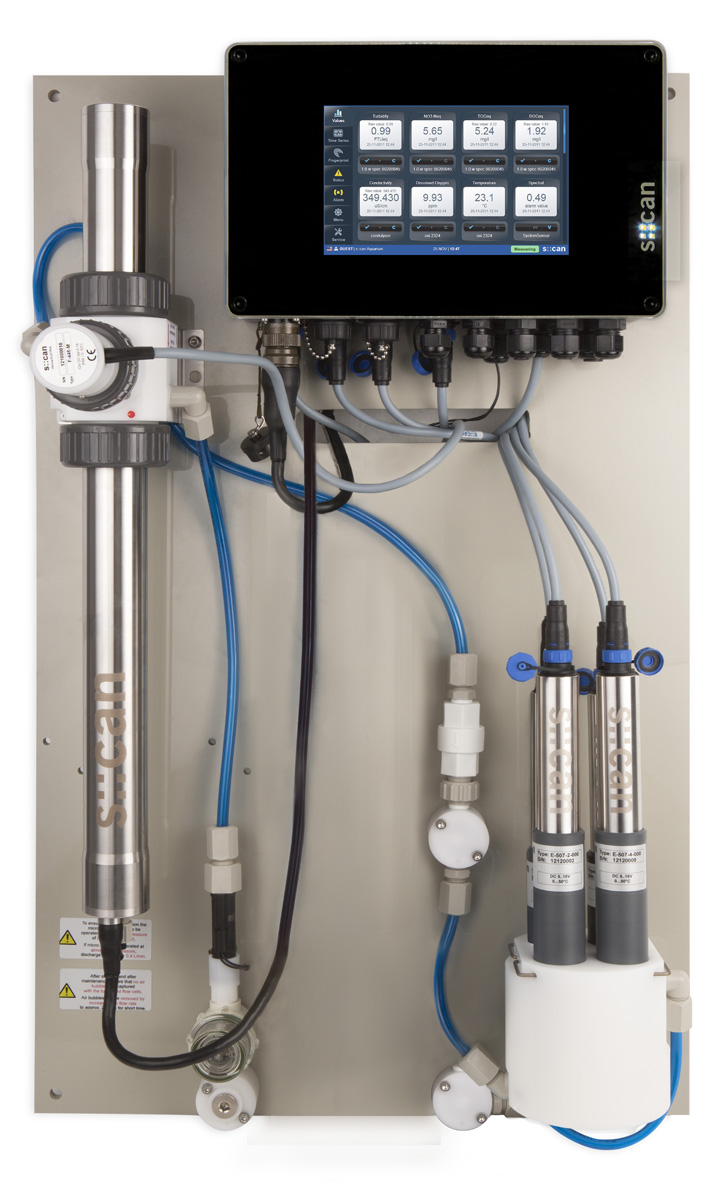

M-100-micro-xl NTU/FTU (est), NO3, NO2, TOC, DOC, pH, EC, 2 disinfection parameters, Temp., Alarms, mounted on panel with 2 FlowCells, AutoBrush, tubes and fittings completely assembled, flow-indicator, and con::cube terminal; event detection software included.

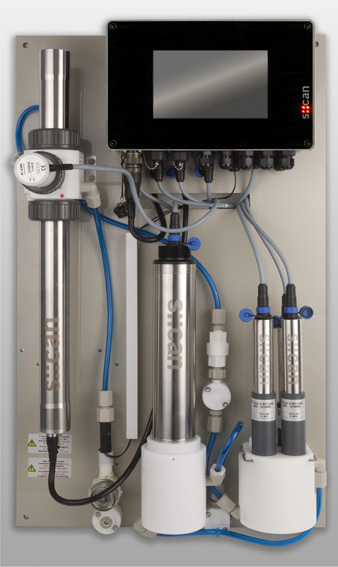

M-100-micro-xxl NTU/FTU (est), NO3, NO2, TOC, DOC, NH4, pH, EC, 2 diesinfection parameters, Temp., Alarms, mounted on panel with 3 FlowCells, AutoBrush, tubes and fittings completely assembled, flow-indicator, and con::cube terminal; event detection software included.



1 Terminal
con::cube
2 Spectrometer probe
spectro::lyser
3 Flow cell for spectrometer probe flow-cell (by-pass fitting), POM-C (for pathlengths from 1 mm to 35 mm)
flow-cell (by-pass fitting), POM-C (for pathlength 100 mm)
flow-cell (by-pass fitting) autobrush, POM-C (for pathlength 35 mm)
flow-cell (by-pass fitting) autobrush, POM-C (for pathlength 100 mm)
4 System tubing inside diameter 6 mm, outside diameter 8 mm
5 Flow detector flow detector
6 Inlet strainer inlet strainer
7 Pressure transmitter pressure transmitter for micro::station (optional)
8 Main panel system panel micro::station US
system panel micro::station EU
9 Flow restrictor unit automatic flow restrictor unit
flow adjustment valve
10 Physical probes
redo::lyser (ORP)
condu::lyser (EC)
chlori::lyser (Free or Total Chlorine)
peroxy::lyser (PAA)
hyper::lyser (H2O2)
chlodi::lyser (CLO2)
11 ISE Mulitparamgetr probe
ammo::lyser pro
ammo::lyser eco
fluor::lyser
12 Flow cell for physical probes flow-cell for up to 4 s::can physical probes, POM-C
s::can physical probe flow-cell (by-pass setup), POM-C
13 Flow cell for ISE probe or physical probe ammo::lyser flow-cell (by-pass setup), POM-C
oxi::lyser flow-cell



Name Specification Remark
Item-no. E-501-eco
Dimensions 750 x 450 x 193 mm H x W x D
Power supply max. 0.85 A at 230 V D-315-230
Power consumption 30 W (typical) / 60 W (max.) 10 W (typical) / 20 W (max.) 3 W (min.) fully equipped no display, no I/O ports no display, no I/O ports, no cleaning, with 15 min. measuring interval
Operating temperature limits 0 (non freezing) to 50°C (32 to 122°F) Medium temperature. Installed sensors determine operating temperature limits.
Operating humidity limits please observe limits for con::cube and / or installed sensors
Operating pressure limits 0.007 to 0.62 MPa (1 to 90 psi)
Storage temperature limits 0 to 50°C (32 to 122°F) determined by installed con::cube and sensors
Storage humidity limits please observe limits for con::cube and / or installed sensors
Process connection ¼” NPT Inlet and Outlet

Brand

s::can

s-can Logo

Additional information

Options

M-100-micro-s, M-100-micro-m, M-100-micro-l, M-100-micro-xl, M-100-micro-xxl
