Zinc Analyser – Overview

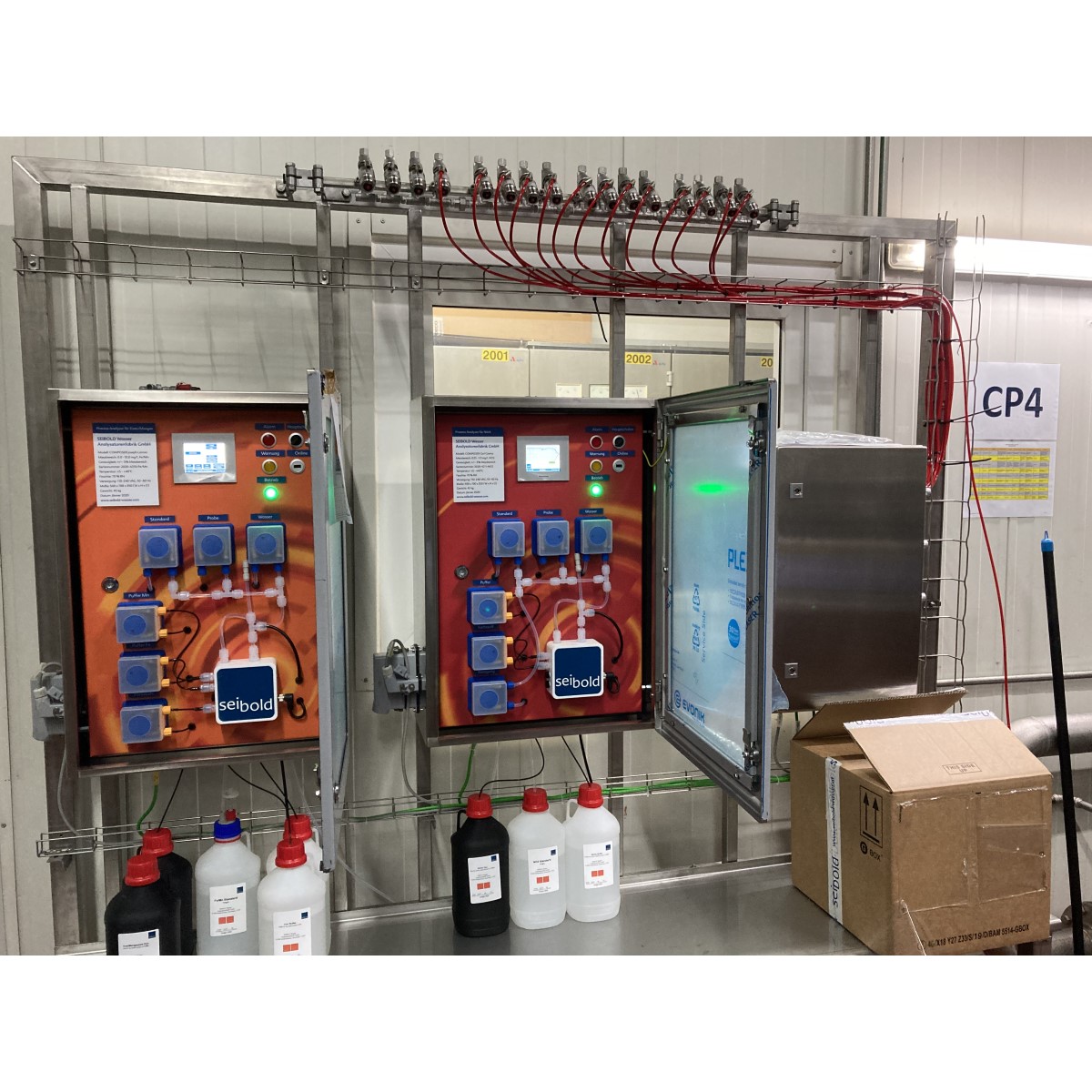

The Zinc Analyser can perform continuous analysis of heavy metals, such as Zinc (Zn), and many other parameters in water. Technologies employed are colorimetric (photometric) and ion-selective electrodes (ISE). Direct measurements, standard addition, and titration support the ideal measurement strategy. The robust design and high-quality parts of the Zinc Analyser guarantee a long lifespan and minimum maintenance. Low consumption of reagents and very high reagent stability ensures person-free operation. Automated calibration and cleaning.

Zinc Analyser – Features

  • Robust design
  • Minimal maintenance
  • Easy handling
  • High accuracy and precision
  • Suitable for mission critical applications
  • Automated cleaning and calibration

Datasheet

Description

Zinc Analyser | Johann G. Albrechtsberger

Technical Specifications

SYSTEM INFORMATION
Measurement variable Zinc (Zn)
Measurement application Drinking water | River Monitoring | Electroplating | Semiconducting industry
Measurement ranges 0.005 – 1.00 mg/L (ppm) other ranges possible upon request
Accuracy and Precision ± 3 % (based on full scale)
Resolution 0.005 mg/L
Calibration and cleaning Automated
Seibold Reagent kit Buffer and Dye Provided by Sigma Aldrich



MEASUREMENT INFORMATION

Measurement method

Spectrophotometric (LED, detector)

Measurement interval

Continuous; Discontinuous (programmable, external start)

Sample and Reagents consumption per measurement

Sample: ~ 75 – 200 ml
Seibold Buffer and Reagent: ~ 3 ml
ENVIRONMENTAL DATA
Ambient operating temperature, sample temperature: 5 to 40°C
Ambient operating humidity: Up to 95 % RH non-condensing (below the condensation limit)
ELECTRICAL DATA

Power supply

Supply voltage: 220 – 230 V AC, 50 – 60 Hz (110 V AC or 24 V DC, optional)
Power consumption: Approx 50 VA
Output signal: 4 – 20 mA

Screen

Color | TFT | Liquid Crystal Display (LCD) with built-in backlight and brightness adjustment.
MAINTENANCE
Maintenance interval: 3 months
