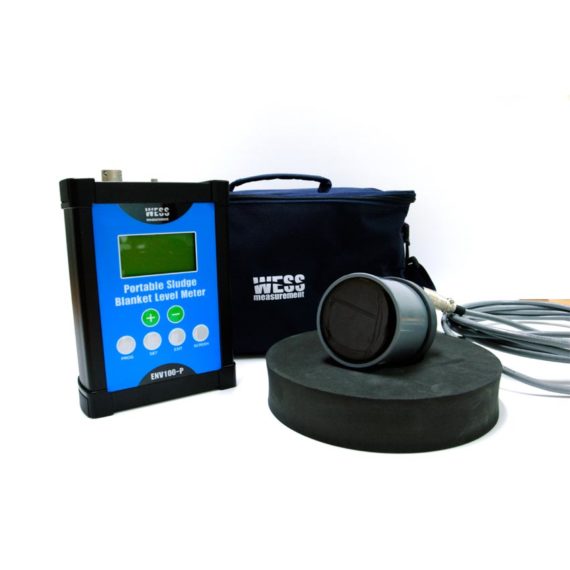

Portable Sludge Blanket Level Meter ENV100-P Overview

The ENV100P portable sludge blanket level meter is designed to offer economic operation where dozens of clarifies exist. User can suit the meter to their specific requirement and field conditions with respective internal data memory and get all measurement data throughout RS232 port after field measurements. Unlike optic measurement device, the user do not need to contact contaminated cable because the ultrasonic sensor is floating on the wastewater.

Portable Sludge Blanket Level Meter Features

  • Portable in-site Measurement
  • Field-adjustable
  • Measurement Result Outputs Through RS232 Port
  • No Need to Carry and Touch The Contaminated Cable

Description

Controller
Model C1P
Measuring Principle Ultrasonic Echo Flight Time
Measuring Range 0.35~10.00m(1~33ft)
Resolution 1cm(metric units), 0.1ft(UK units)
Accuracy +/- 1% of measured range or 1 inch, whichever is greater
Operational Temperature -20 ~ 70°C(-4~158°F)
Outputs Digital: RS232C
Power Supply 3EA X AA Lithium ion rechargeable battery
Enclosure Material Aluminum
Dimension 143(W) x 195(H) x 56(D)mm
Weight 1.5 kg
Certificate CE



SENSOR

Model S1P


Material

Probe body :Clean PVC

Ultrasonic Head :Epoxy

Cable Lengt 5m(17ft)
Operational Temperature -10 ~ 60°C(14 ~ 140°F)
Beam Angle 3 degree
Frequency 160/380kHz
Weight 1kg
IP Rating IP68
