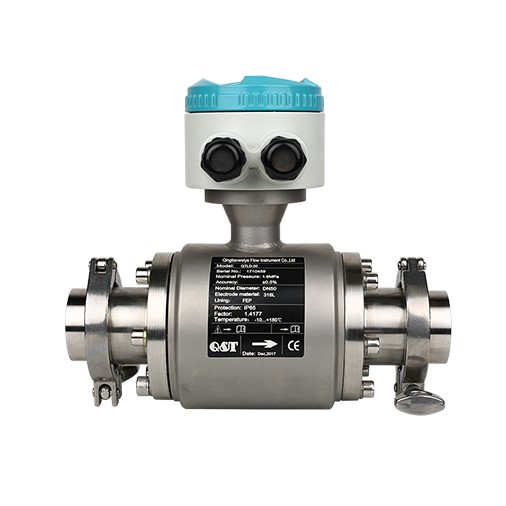

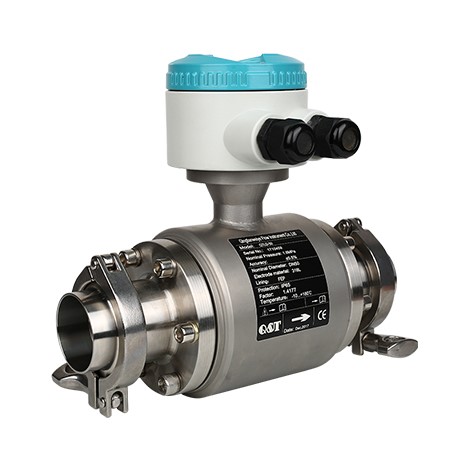

Tri-clamp Electromagnetic Flow Meter – Overview

The Tri-clamp Electromagnetic Flow Meter is a kind of volume flow meter. It is quick and easy to install. It is made of stainless steel, which can easily be disassembled and cleaned.  This prevents pollution during use, and the accumulation of measuring fluid residues in the measuring tube.  It is based on Faraday’s law of electromagnetic induction which is used to measure conductance greater than 20 μS/cm volume of conductive liquid flow. This measures the general volume of conductive liquid flow, but can also be used to measure strong acids, alkalis, strong corrosive liquids, mud, pulp, etc. The long-life Harmelss Food Grade Stainless Steel allows it to come into contact with food directly. It can withstand high temperature disinfection, making it ideal for use in dairy.  It has current output and pulse output for connecting with PLC or other devices and is RS485/HART/Profibus compatible.

The Tri-clamp Electromagnetic Flow Meter is suitable for use in drinking water, milk, groundwater, beer, wine, jam, juice and other food & drink industries. It is also widely used in paper pulp and gypsum slurry because it can be cleaned easily.

Tri-clamp Electromagnetic Flow Meter – Features

  • Size: DN15mm-DN200mm
  • Nominal Pressure: 1.6Mpa
  • Accuracy: ±0.5%(Standard)
  • Liner: FEP, PFA
  • Output Signal: 4-20mA pulse frequency relay



SKU: RWEM/T Category: Tags: , ,

Description

Tri-clamp Electromagnetic Flow Meter | RWEM/T

Table 1: Tri-clamp Electromagnetic Flow Meter Parameters

Size DN15mm-DN200mm
Nominal Pressure 1.6Mpa
Accuracy ±0.5%(Standard)
±0.3% or ±0.2%(Optional)
Liner FEP, PFA
Electrode SUS316L, Hastelloy B, Hastelloy C,
Titanium, Tantalum, Platinum-iridium
Structure Type Integral type, remote type, submersible type, ex-proof type
Medium Temperature -20~+60degC(Integral type)
Remote type(PFA/FEP) -10~+160degC
Ambient Temperature -20~+60degC
Ambient Humidity 5~90%RH(relative humidity)
Measuring Range Max 15m/s
Conductivity >5us/cm
Protection Class IP65(Standard); IP68(Optional for remote type)
Output Signal 4-20mA pulse frequency relay
Communication MODBUS RTU RS485, HART(Optional), GPRS/GSM(Optional)
Power Supply  AC220V(Can be used for AC85-250V)
DC24V(Can be used for DC20-36V)
DC12V(Optional),Battery Powered 3.6V(Optional)
Power Consumption <20W
Explosion Proof ATEX Exdll T6Gb

Table 2: Tri-clamp Electromagnetic Flow Meter Electrode Material Selection

Electrode material Applications
SUS316L Applicable in water, sewage and low corrosive mediums.
Widely used in industries of petrol, chemistry, carbamide,etc
Hastelloy B Having strong resistance to hydrochloric acid of any consistance which is below boiling point.
Resistable against vitriol, phosphate, hydrofluoricacid, organic acid etc which are oxidable acid, alkali and non-oxidable salt.
Hastelloy C Be resistant to oxidable acid such as nitric acid, mixed acid as well as oxidable salt such as Fe+++, Cu++and sea water.
Titanium Applicable in seawater, and kinds of chloride, hypochlorite salt, oxidable acid (including fuming nitric acid),
organic acid, alkali etc.
Not resistant to a pure reducing acid (such as sulphuric acid, hydrochloric acid) corrosion.
But if acid contains antioxidant(such as Fe+++, Cu++) is greatly reduces corrosion.
Tantalum Having strong resistance to corrosive mediums that is similar with glass.
Applicable to most chemical mediums.
Except for hydrofluoric acid, oleum and alkali.
Platinum-iridium Applicable to most chemical mediums except for ammonium salt.

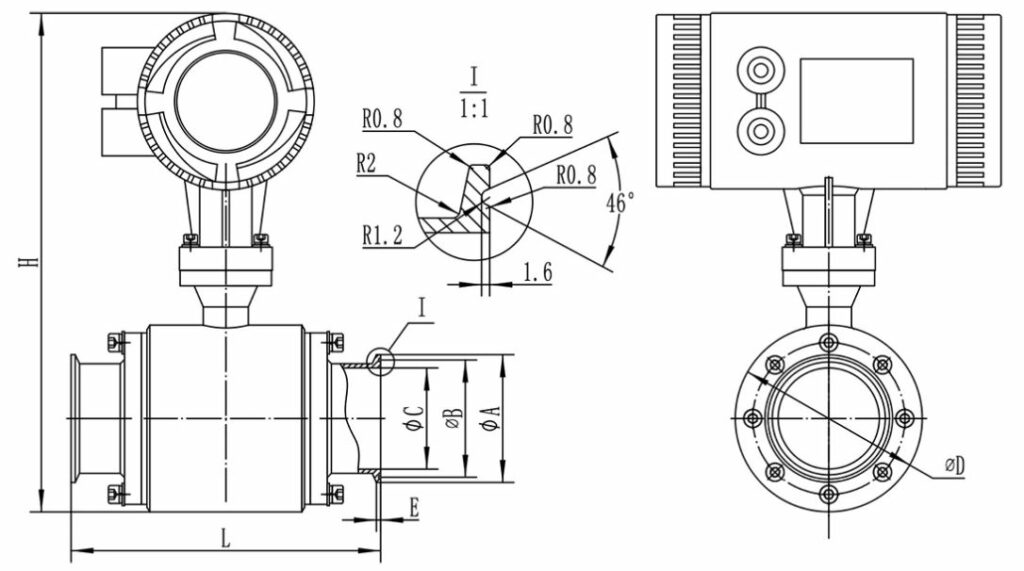

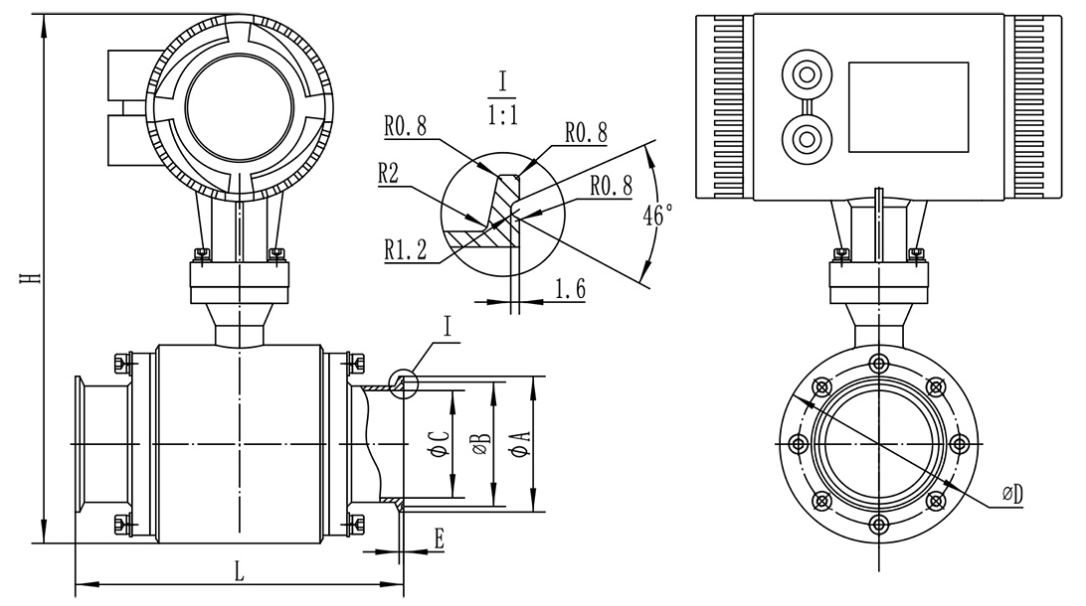

Table 3: Tri-clamp Electromagnetic Flow Meter Sizing Chart

Diameter φA(mm) φB(mm) φC(mm) φD(mm) φE(mm) H(mm) L(mm)
DN15 50.5 43.5 16 76 2.85 303 200
DN20 50.5 43.5 19 83 2.85 310 200
DN25 50.5 43.5 24 83 2.85 310 200
DN32 50.5 43.5 31 94 2.85 321 200
DN40 50.5 43.5 35 94 2.85 321 200
DN50 64 56.5 45 108 2.85 335 200
DN65 77.5 70.5 59 115 2.85 342 250
DN80 91 83.5 72 135 2.85 362 250
DN100 119 110 98 159 2.85 386 250
DN125 145 136 129 183 3.6 410 300
DN150 183 174 150 219 3.6 446 300
DN200 233.5 225 199 261 3.6 488 350

Table 4: Tri-clamp Electromagnetic Flow Meter Sizing Chart Flow Range ( Unit: m³/h )

Size Flow Range & Velocity Table
(mm) 0.1m/s 0.2m/s 0.5m/s 1m/s 4m/s 10m/s 12m/s 15m/s
15 0.064 0.127 0.318 0.636 2.543 6.359 7.630 9.538
20 0.113 0.226 0.565 1.130 4.522 11.304 13.56 16.956
25 0.177 0.353 0.883 1.766 7.065 17.663 21.2 26.494
32 0.289 0.579 1.447 2.894 11.575 28.938 34.73 43.407
40 0.452 0.904 2.261 4.522 18.086 45.216 54.26 67.824
50 0.707 1.413 3.533 7.065 28.260 70.650 84.78 105.98
65 1.19 2.39 5.97 11.94 47.76 119.40 143.3 179.10
80 1.81 3.62 9.04 18.09 72.35 180.86 217.0 271.30
100 2.83 5.65 14.13 28.26 113.04 282.60 339.1 423.90
125 4.42 8.83 22.08 44.16 176.63 441.56 529.9 662.34
150 6.36 12.72 31.79 63.59 254.34 635.85 763.0 953.78
200 11.3 22.61 56.52 113.04 452.16 1130.40 1356 1696
Suggested Velocity: 0.5m/s – 15m/s
