Peracetic Acid Sensor | Peroxy::lyser

Peracetic Acid Sensor | Peroxy::lyser

Call for price

Peracetic acid probe peroxy::lyser Overview

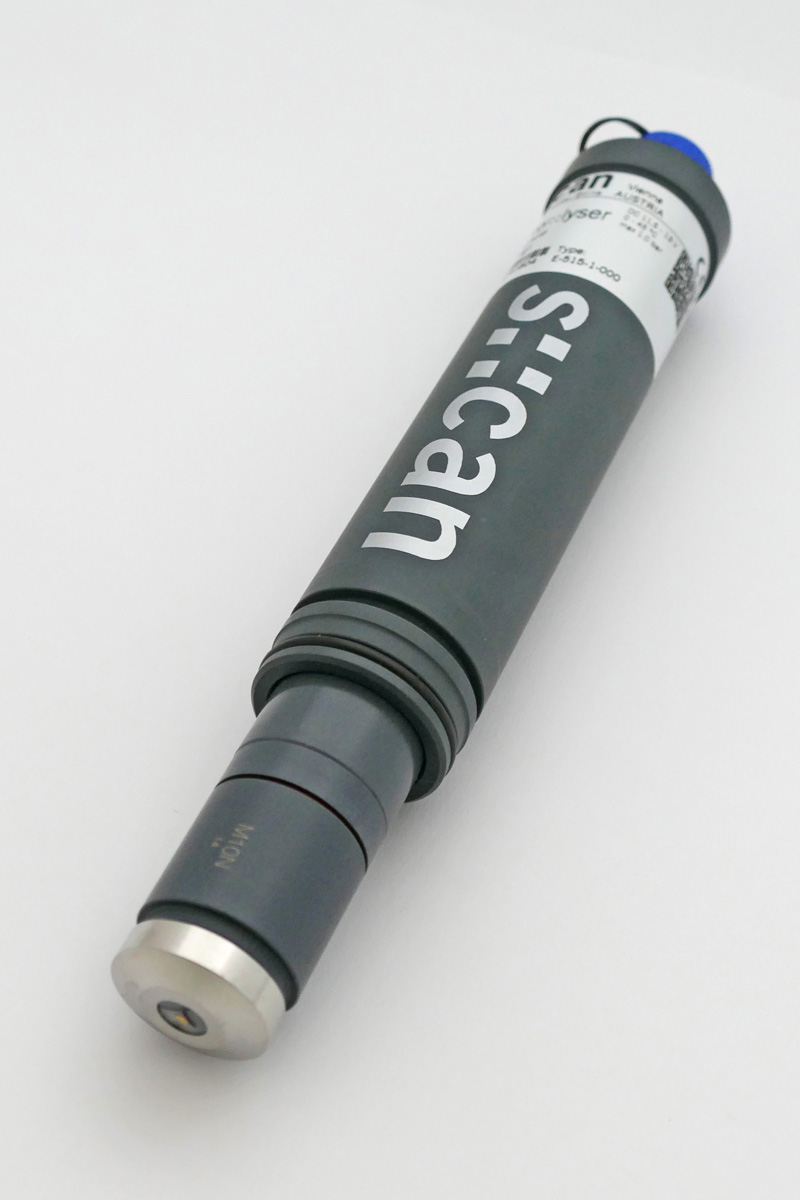

The peroxy::lyser is an amperometric sensor for monitoring peracetic acid. It is ideal for all kinds of water treatment and produces stable readings even at high fluctuations of pH, temperature and flow. Strong surfactants are tolerated and the peroxy::lyser is not cross sensitive to high concentrations of hydrogen peroxide.

Peracetic acid Probe peroxy::lyser Features

  • s::can plug & measure
  • not cross sensitive to high concentrations of hydrogen peroxide
  • measuring principle: amperometric (membrane covered)
  • readings stable even at high fluctuations of pH, temperature and flow
  • mounting and measurement in a flow cell
  • ideal for all kinds of water treatment
  • long term stable and low operational costs
  • replacement of membrane only once a year
  • strong surfactants are tolerated
  • factory pre-calibrated
  • operation via s::can terminals & s::can software
  • additionally also measures temperature

Description

Peroxy::lyser

Technical specification
measuring principle amperometric
measuring principle detail potentiostatic 2-electrode system,
membrane covered
resolution 0.1 mg/l
automatic compensation instrument temperature
response time 1.5 … 5 min.
integration via con::cube con::lyte con::nect
power supply 9 … 30 VDC
power consumption (typical) 0.5 W
power consumption (max.) 0.6 W
interface to s::can terminals sys plug (IP67), RS485
housing material PVC
Stainless steel 1.4571
weight (min.) 150 g
dimensions (Ø x l) 35 x 208 mm
operating temperature 0 … 45 °C
storage temperature 0 … 45 °C
operating pressure 0 … 1 bar
installation / mounting flow cell
process connection quick connect
recomended flow 30 … 100 l/h
pH range 1 … 6
conformity – EMC EN 61326-1
protection class (-000) IP67



concentration ranges and sensor/probe type for this application
PAA[mg/l] part number
peroxy::lyser min. 0.1 E-515-1-000
max. 200

Brand

s::can
