pH Probes Overview

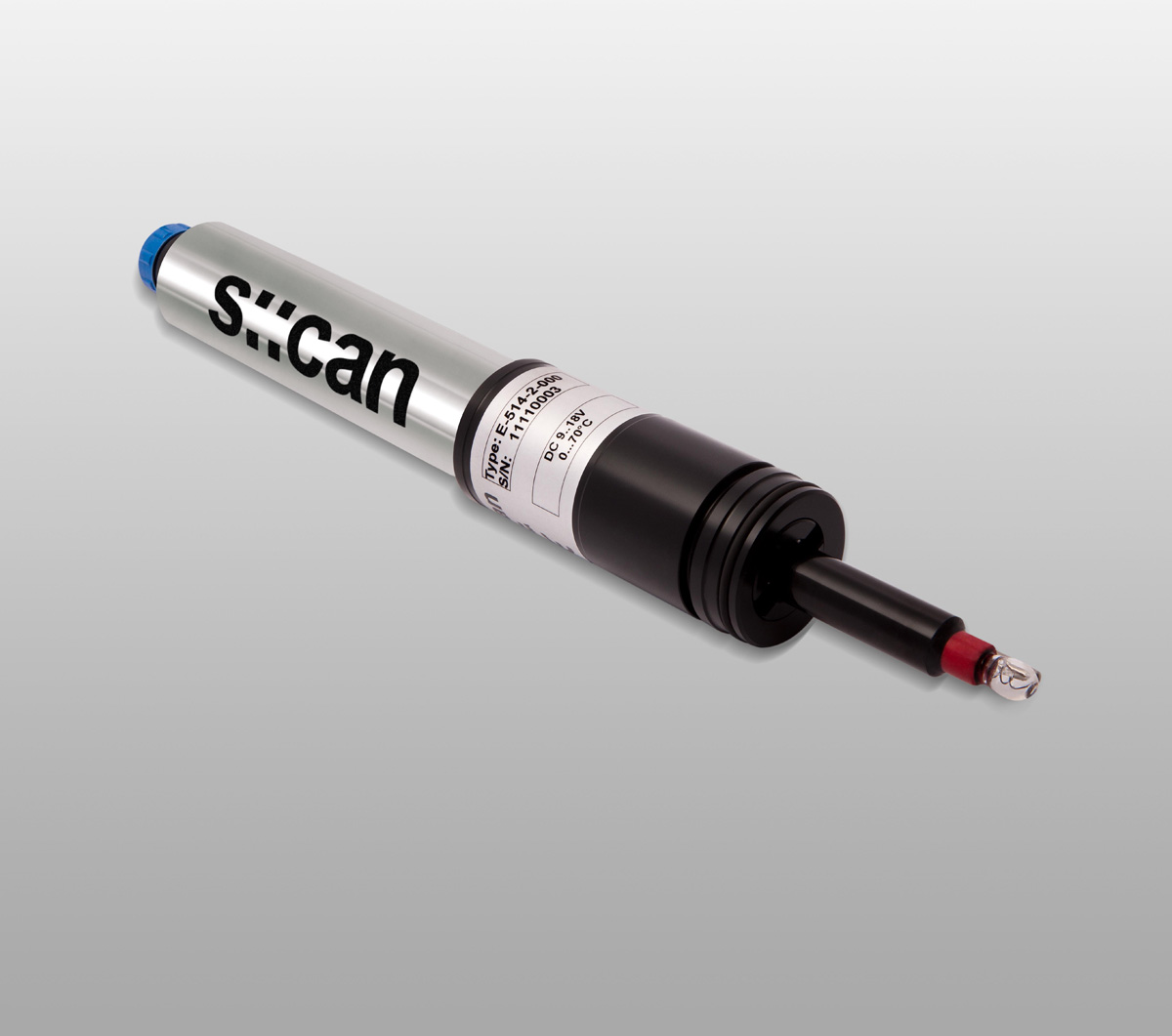

The pH::lyser is a low maintenance pH sensor for the real-time measurement of pH and temperature directly in the medium or in aby pass flow-cell. Even under tough conditions (up to 90°C) or in water with very low conductivity long term stability and precise measurement is ensured. The sensor is pre-calibrated ex works and immediately ready.

pH::lyser eco monitors pH & temperature
pH::lyser pro: high temperature and pH range

pH Probe Features

  • ideal for surface water, ground water, drinking water and waste water
  • s::can plug & measure
  • measuring principle: unique, non-porous / non-leaking combined reference electrode for technically unrivalled and consistent pH performance
  • multi-parameter sensor
  • long term stable and maintenance free in operation
  • factory pre-calibrated
  • mounting and measurement directly in the media (InSitu) or in flow cell
  • operation via s::can terminals & s::can software
  • optional: automatic cleaning with compressed air

Description

pH Probe Technical Specifications

technical specification
measuring principle potentiometric

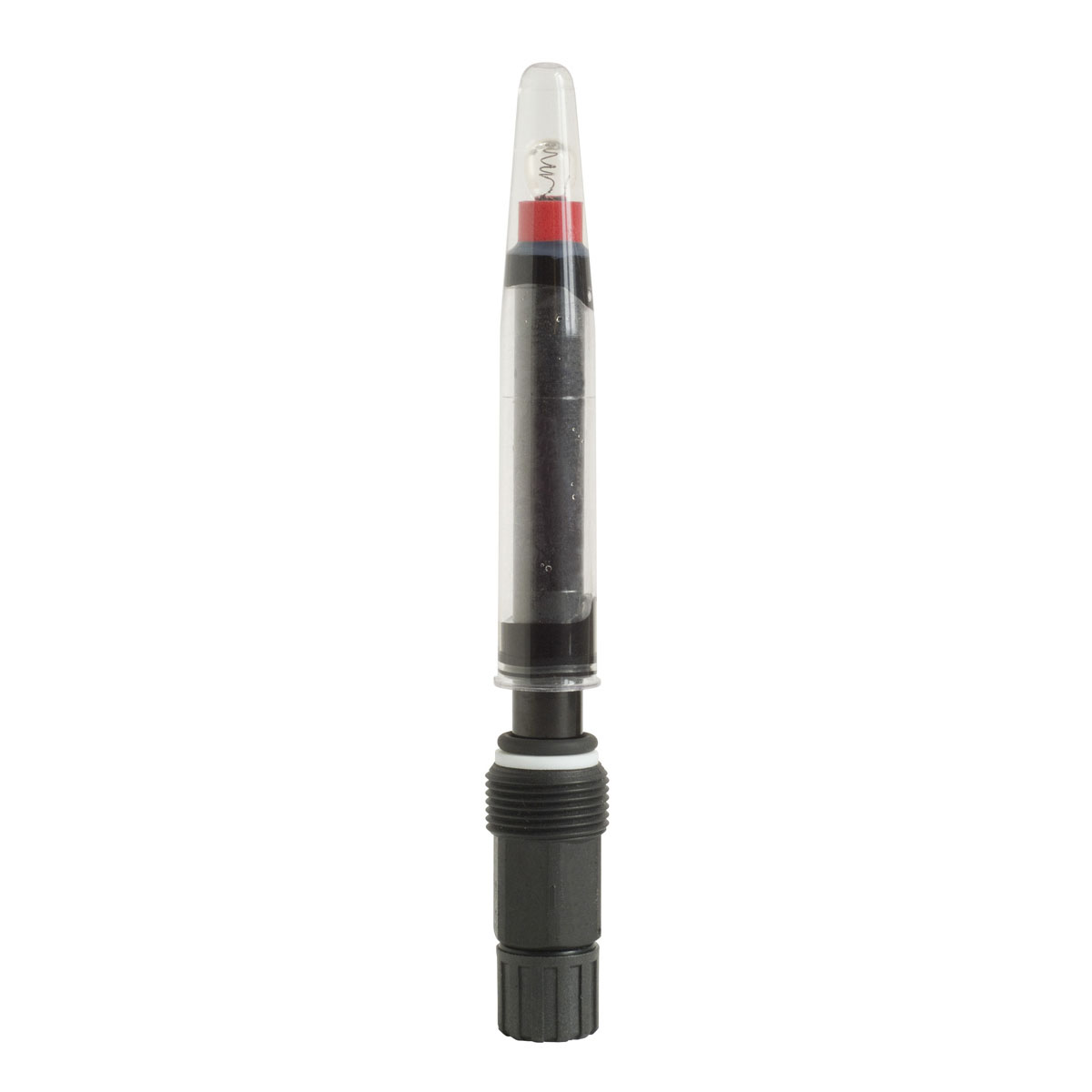

measuring principle detail combined, non-porous reference
electrode
measuring range application pro: 0 … 14 pH
eco: 2 .. 12 pH
resolution 0.01 pH
accuracy (standard solution) 0,1 pH
automatic compensation instrument temperature
response time 30 sec.
integrated temperature sensor 0 … 90 °C
integration via con::cube
con::lyte
con::nect
power supply 9 … 18 VDC
power consumption (typical) 0.8 W
power consumption (max.) 1 W
interface to s::can terminals sys plug (IP67), RS485

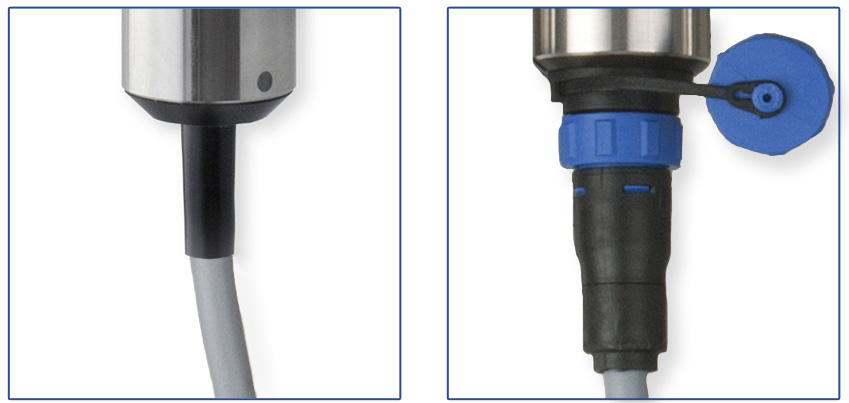

cable length 7.5 m fixed cable (-075) or
plug connection (-000)
cable type PU jacket
housing material stainless steel 1.4404/1.4401,
POM-C
weight (min.) 400 g
dimensions (Ø x l) 33 x 257 mm
operating pressure 0 … 10 bar
installation / mounting submersed or in a flow cell
process connection quick connect
flow velocity 3 m/s (max.)
0.01 m/s (min.)
automatic cleaning media: compressed air
permissible pressure: 3 … 6 bar
cleaning interval: depending on application
conformity – EMC EN 61326-1
conformity – safety EN 61010-1
operating temperature (eco) 0 … 70 °C
operating temperature (pro) 0 … 90 °C
storage temperature (electrode) -5 … 30 °C
storage temperature (sensor) -10 … 60 °C
protection class (-000) IP67
protection class (-075) IP68



surface water
concentration ranges and sensor/probe type for this application
pH[pH] temperature[°C] part number
pH::lyser eco min. 4 0 E-514-2-000 / -075
(pH, temp) max. 10 50



drinking water
concentration ranges and sensor/probe type for this application
pH[pH] temperature[°C] part number
pH::lyser eco min. 5 0 E-514-2-000 / -075
(pH, temp) max. 9 50



municipal WWTP influent
concentration ranges and sensor/probe type for this application
pH[pH] temperature[°C] part number
pH::lyser pro min. 0 0 E-514-3-000 / -075
(pH, temp) max. 14 70



municipal WWTP aeration
concentration ranges and sensor/probe type for this application
pH[pH] temperature[°C] part number
pH::lyser pro min. 0 0 E-514-3-000 / -075
(pH, temp) max. 14 70



municipal WWTP effluent
concentration ranges and sensor/probe type for this application
pH[pH] temperature[°C] part number
pH::lyser eco min. 2 0 E-514-2-000 / -075
(pH, temp) max. 12 60

Additional information

Options

pH::lyser eco, incl. 7,5 m fixed cable, pH::lyser eco, with plug connection, pH::lyser pro, with plug connection, pH::lyser pro, incl. 7,5 m fixed cable, PVC version
