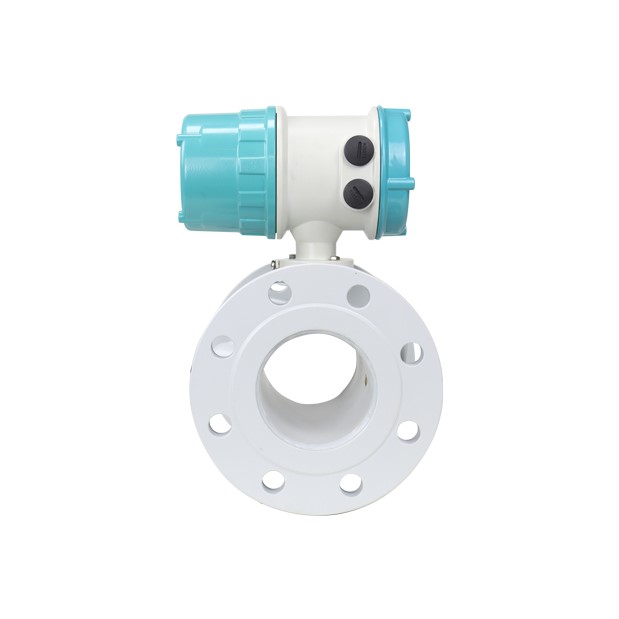

Integral Display Flange Ultrasonic Flow Meter – Overview

This flow meter is an economical liquid flow meter. It measures various pure liquids such as clean water, seawater, drinking water, river water, alcohol etc. It is suitable for continuous flow measurement of clean and uniform liquids without a large concentration of suspended particles or gases in an industrial environment. The flow meter is able to connect to a temperature sensor to become a calorimeter which is widely used in the Food industry, Oil and gas industry, Chemical industry, Water treatment industry, and Power industry.

Integral Display Flange Ultrasonic Flow Meter – Features

  • Accuracy better than ±1.0%
  • High reliability
  • High performance
  • Low price
  • Bi-directional flow measurement
  • No moving parts, no wear, no pressure loss, virtually maintenance-free
  • Measures conductive & non-conductive liquid
  • Display instantaneous flow, Total flow, Temp, Positive flow, Negative flow
  • High-precision machined pipe sections
Category: Tags: , , ,

Description

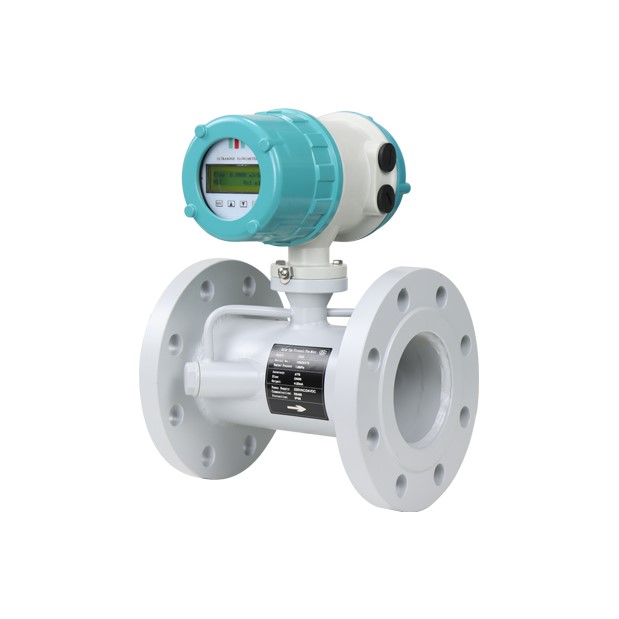

Integral Display Flange Ultrasonic Flow Meter | RWTT IDF

Table 1: Integral Display Flange Ultrasonic Flow Meter Main Performances Parameters

Description Specifications
Size DN15~DN6000
Accuracy Better than ±1.0%
Velocity range 0~±10m/s
Liquid temperature 0~160℃
Liquid Type Water, seawater, wastewater, alcohol, beer, various kinds of oil etc which
can conduct ultrasound single uniform liquid
Pipe material Steel, stainless steel, cast iron, copper, PVC, aluminium, FRP etc, all kinds
Of dense pipeline, can be lined inside
Output signal 1 channel 4-20mA output, impedance 0-1K ;
1 channel OCT pulse output, pulse width 6-1000ms, (default is 200ms);
1 channel relay output
Input Signal 4-20mA input
Connect with three wire PT100, can achieve heat measurement
Communication RS485 MODBUS RTU
Power supply DC8-36V or  AC85-264V
Protection IP65
Power Consumption 1.5W

Table 2: Water temperature and sound speed table

Temperature (℃ ) Sound speed (m/s) Temperature (℃) Sound speed (m/s)
0 1403 50 1541
5 1427 55 1546.5
10 1447 60 1552
15 1464 65 1553.5
20 1481 70 1555
25 1494 75 1555
30 1507 80 1555
35 1516.5 85 1552.5
40 1526 90 1550
45 1533.5 95 1547
100 1543

Table 3: Ultrasonic flow meter model selection

Size DN15~DN6000 15~6000
Body Material Carbon steel C
SS304 S0
SS316 S1
Pressure Rate 0.6 Mpa P1
1.0 MPa P2
1.6 MPa P3
2.5 MPa P4
Other special P5
Output 4-20mA, Pulse, OCT, RS485 O
Structure Integral I
Remote R
Connection Thread T
Flange F
