Ultrasonic Flow Transmitters

Ultrasonic Flow Transmitters operate together with flow meters. The flow meters alternately transmit and receive a burst of sound waves between two transducers, measuring the transit time that it takes for sound to travel between the two transducers in both directions. The transmitter processes these signals from the flow meters to determine the flow rate.

QUICK VIEW
Wall Mount Ultrasonic Flow Meters | RWTT
Price range: R3,241.00 through R18,728.00
Wall Mount Ultrasonic flow meters - Overview

Ultrasonic flow meters operate by alternately transmitting and receiving a frequency between two transducers and measuring the time that it takes for sound to travel between the two. The difference in the transit time is directly and accurately related to the velocity of the liquid in the pipe. This wall mount ultrasonic flow meter is designed for use in a closed conduit. The transducers are clamp-on types, which in turn makes for easy installation and operation.

Wall Mount Ultrasonic flow meters - Features
- Stable and accurate measurement
- Accuracy: ±1% of reading at rates >0.2 mps
- High precision
- One flow meter for all applications
- Pipe Size: DN15mm-DN6000mm
- Easy maintenance
- Highest process safety
- Repeatability: 0.2%
- Velocity: ±32m/s
https://www.youtube.com/watch?v=eHHde2VPqoc

Select options
1
QUICK VIEW
Clamp-on Ultrasonic Flow Meter | RWTT811
Price range: R12,712.00 through R18,728.00
Clamp-on Ultrasonic Flow Meter - Overview

Quick and easy installation and operation. It only takes a few minutes, from the start of the installation to actual data readings. The QT811 boasts a new external clamp design, which measures the flow rate without being in direct contact with medium. Compared to traditional flow meters, this measurement method eliminates pressure loss, production loss and media contamination. This in turn saves costs in installation and labor. A variety of modes are available for setting and flexibility. Suitable for all pipe sizes in the measuring range, as well as various kinds of metal and resin pipes. It has a 256*128 LCD display and shows a wide range of information.

It can operate as an ultrasonic cooling (heat) meter/ btu meter/ energy meter to monitor and measure energy (optional).

Clamp-on Ultrasonic Flow Meter - Features
- Immediate flow rate reading on device
- Quick and easy installation
- Saves on installation and labor costs
- 256*128 LCD Display
- Suitable for metal or resin piping
- No medium contamination
- No production lost during installation
Select options
QUICK VIEW
Wall Mount Ultrasonic Flow Meter | RWTT502
R18,675.00
Wall Mount Ultrasonic Flow Meter - Overview

The QT502 consists of a wall mount transmitter and is used in conjunction with either clamp-on or insertion type transducers. Ultrasonic sound waves measure the flow of water through a pipe. Designed using an FPGA chip and low-voltage broadband pulse transmission. The 240*128 backlit LCD screen with 4 line menu display is clear and user-friendly. The simple menu and 7-digit display selections make the flow meter even easier to use. It has daily, monthly, and yearly totalised flow; parallel operation of positive, negative, and net flow totalizer with scale factor. The option of adding RTD temperature sensors allows it to become an energy meter for the monitoring of energy use, helping you save energy and money.

Wall Mount Ultrasonic Flow Meter - Features
- 240*128 backlit LCD screen
- 4-line menu display
- 7-digit display
- Optional temperature sensors enable energy measurement
Select options
QUICK VIEW
Clamp-On Ultrasonic Flow Meter | FLO100

Clamp-On Ultrasonic Flow Meter - Overview

WESS FLO100 Series is the fixed type ultrasonic transit-time flow meter for long-term flow measurement. The flow meter measures the flow rate of liquid in a closed pipe by using a pair of clamp-on sensors. WESS use its own patented technologies such as advanced signal processing and low-voltage operation to achieve high accuracy and reliable performance. The product provides versatile output interfaces, analogue and digital, which can be easily used by a PLC or a flow controller.

Clamp-On Ultrasonic Flow Meter - Features
- Positive / Negative / Net flow totalizer
- Proprietary Low-Voltage Transmission and Self-Adaptation Technologies
- No pipe Cutting or Process Interruption by Using Clamp-On Technology
- Able to Measure Electrically Conductive and Non-Conductive Liquids
Read more
QUICK VIEW
Ultrasonic Flow Transmitter | RISONIC COMPACT

Ultrasonic Flow Transmitter - Overview

RISONIC Compact uses non-intrusive transducers, providing reliable, precision measurements. A drift-free flow measurement solution. The system measures and determines the path velocities and computes the flow rate and volume in two directions. Costs for installation are low and no operation outage is required.

Ultrasonic Flow Transmitter - Features
- No drift
- No re-calibration
- No de-watering
- No pipe-cutting
- Price/performance ratio
- Precise, robust flow measurement
- Quick installation
- Easy commissioning
- Pre-set path configurations
- Web interface and wizard
- 2 paths and pipes
- Flexible pipe-materials
- Latest IT- and Cyber security
- Integration into plant systems
- Data logger feature
- Remote access control/monitoring
- IoT and Rittmeyer RITUNE® capable
Read more
QUICK VIEW

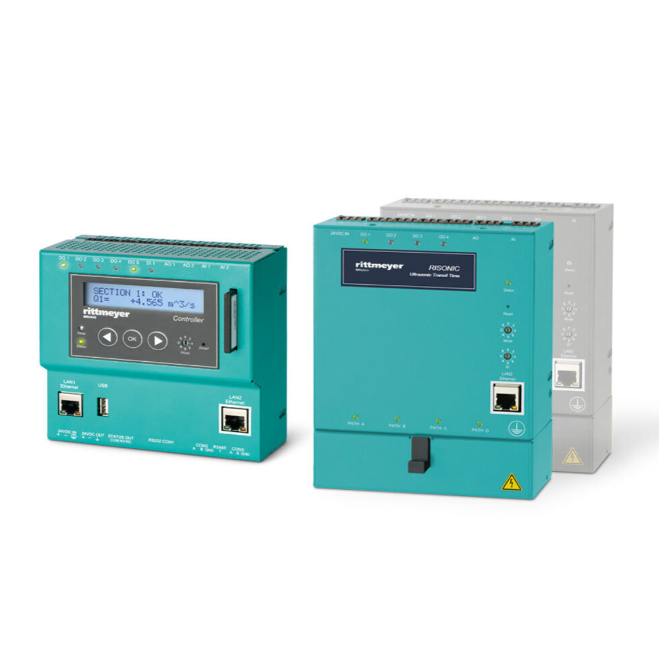

Ultrasonic Flow Transmitter | RISONIC Modular

Ultrasonic Flow Transmitter - Overview

The RISONIC modular system consists of three components:
- The Controller: Integrated data logger, limited value monitoring, volume counter, Individually galvanically isolated I/O's, SMS alarm via external GSM / GPRS modem
- Up to five RISONIC Ultrasonic Transit Time Modules: prepare and process the sensor signals, which then get sent to the controller
- Various ultrasonic sensors that are mounted internally or externally, or non-invasively to the outside of the pipe
This modular measurement system for hydroengineering applications was developed for ultrasonic flow measurements in open channels and filled and partially filled pipes. The modular design makes it suitable for a broad spectrum of applications, whether for turbine and pump efficiency measurements, penstock leak detection, or flow measurements in water supplies or irrigation systems. The system is user-friendly and intuitive, so it requires minimal training. It can be remotely serviced with a variety of diagnostic functions to pinpoint malfunctions quickly, reducing downtimes. Suitable for use in hydropower plants, water supplies, irrigation systems, and water cooling circuits.

Ultrasonic Flow Transmitter - Features
- Excellent long-term stability, no need for recalibration
- Easy commissioning and signal analysis
- Wide range of ultrasonic transducers for pipes and channels
- High measuring accuracy of up to 0.5% of measured value displayed
- Up to 4 measurement sections per Controller (incl. multi-pipe, multi-channel)
- Flow measurement in both directions (pump storage power plant)
- 1 ... 5 ultrasonic modules for a maximum of 20 measurement paths (5 x 4)
- Modular concept of ultrasonic modules reduces cost for lower path sections
- Controller with built-in web server for easy configuration
- IEC 60870-5-104 and Modbus RTU/TCP communication
Read more
