Flow Sensors – Overview

Used in water management, leak detection, and irrigation. These ultrasonic sensors measure the flow velocity of water and calculate the volume and flow information. The average water flow is measured by emitting and receiving ultrasonic signals. The more ultrasonic paths one uses, the higher the system accuracy.

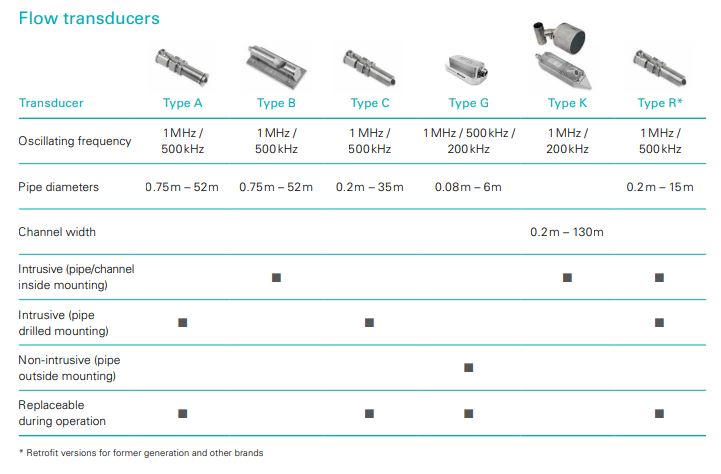

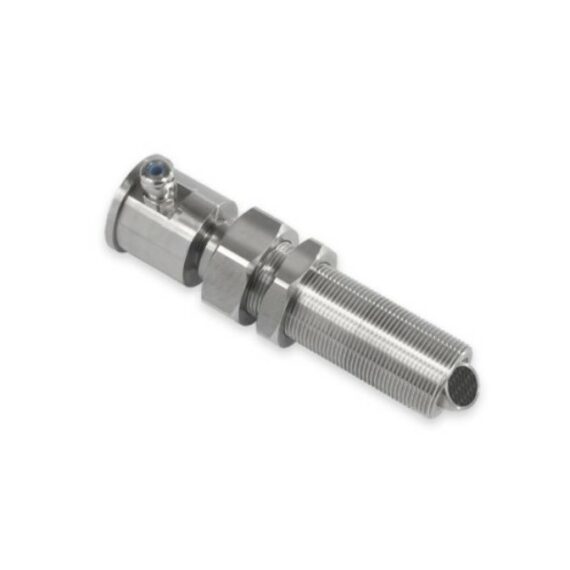

Type A for filled or partially filled pipes with a 0.75–35 m diameter.

Type B for open channels & filled or partially filled pipes with a 0.75–35m diameter.

Type C for filled or partially filled pipes with a 0.20 – 35 m diameter.

Type K sensors for applications in open channels

Type G externally mounted clamp-on sensors

Flow Sensors – Features

• Wide range of open channel widths of up to 130 meters
• Wide range of pipe diameters of up to 52 meters
• Up to 20 paths per measurement section
• High accuracy of up to 0.5% in the field & 0.2% under ideal conditions
• High flexibility for configurations such as crossed/non-crossed setups
• Easy to retrofit into existing, even third-party installations
• Drift-free and long-term stability
• No moving parts
