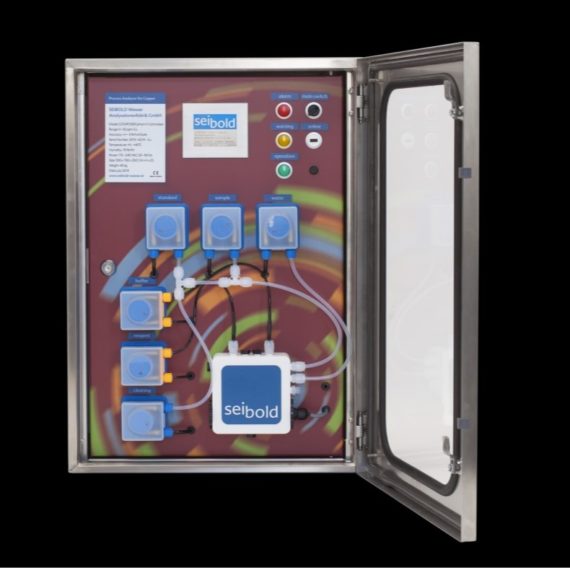

Calcium and Magnesium Analyser – Antojn Bruckner Overview

The Calcium and Magnesium Analyser – Antojn Bruckner can perform continuous analysis of heavy metals,  Calcium (Ca) and Magnesium (Mg), and many other parameters in water. Technologies employed are colorimetric (photometric) and ion-selective electrodes (ISE). Direct measurements, standard addition, and titration support the ideal measurement strategy. The robust design and high-quality parts of the Calcium and Magnesium Analyzer guarantee a long lifetime and minimum maintenance efforts. Low consumption of reagents and very high reagent stability ensures person-free operation. Automated calibration and cleaning steps support this goal.

Sources
To prevent membrane poisoning, new membrane technology in Chlor-alkali cells requires feed brine that is relatively free of alkaline earth metals. Membrane manufacturers recommend that saturated brines be purified to a total hardness below 50 µg/L (ppb) to extend membrane life and ensure electrical current efficiency in the cell. Industrial laboratories have been concerned with the determination of calcium and magnesium in brine for a number of years.

Method
Calcium and Magnesium are measured in sum and separate by the HNB/EDTA volumetric method. The SEIBOLD titrator Johann N. Hummel is an online titration unit for equilibrium and endpoint detection. By defining the concentration of the titrator the resolution can be adjusted to specific needs and measurement ranges. The titration works in flow-through mode and can work real continuously. The consumption of chemical solutions could be minimized because of using SEIBOLD’s unique measurement chain memory.

Calcium and Magnesium Analyser Features

  • Robust design.
  • Minimal maintenance.
  • Easy handling and long-living.
  • Highest accuracy of measurement and high precision.
  • Suitable for mission-critical applications.
  • Automated cleaning and calibration and dilution.
  • Can perform complex control tasks via analog and digital communication.

Description

Calcium and Magnesium Analyser – Antojn Bruckner Technical Specifications

SYSTEM INFORMATION

Measurement variable Calcium and Magnesium
Measurement application Drinking water | Industrial Water
Measurement ranges 0-100 mmol
Accuracy and Precision < 3 % (based on full scale)
Resolution Same as precision values
Calibration and cleaning Automated
Seibold Reagent kit HNB/EDTA.



MEASUREMENT INFORMATION

Measurement method
Spectro-Photometer. Peak at 570nm.
Measurement interval
Continuous; Discontinuous (programmable, external start)
Sample and Reagents consumption per measurement
Sample: ~ 75 – 200 ml
Reagent: ~ 3 ml

ENVIRONMENTAL DATA

Ambient operating temperature, sample temperature: 5 to 40°C
Ambient operating humidity: Up to 95 % RH non-condensing (below the condensation limit)

ELECTRICAL DATA

Power supply
Supply voltage: 220 – 230 V AC, 50 – 60 Hz (110 V AC or 24 V DC, optional)
Power consumption: Approx 50 VA
Output signal: 4 – 20 mA
Screen
Color | TFT | Liquid Crystal Display (LCD) with built-in backlight and brightness adjustment.

MAINTENANCE

Maintenance interval: 3 months

Brand

Seibold
