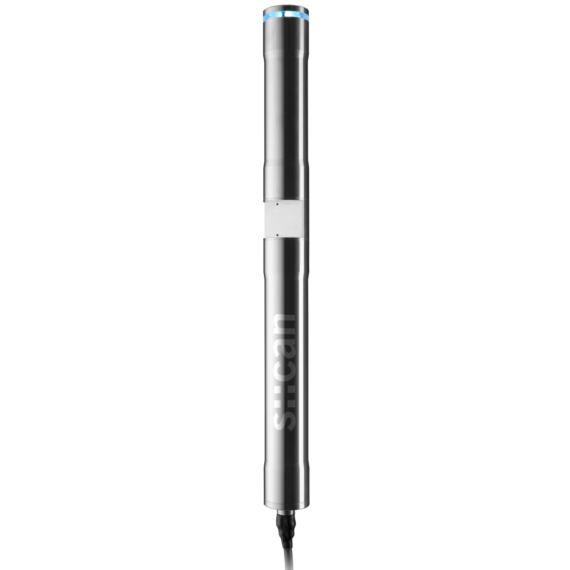

Online UV-Vis Spectrometer  Spectro::lyser V3 Overview

The Spectro::lyser V3 is a next-generation high-performance online water quality monitoring. With the aid of extensive research on industry needs and using the latest technology, the Spectro::lyser V3 was innovatively designed. The Spectro::lyser™ UV-Vis monitors depending on the application an individual selection of TSS, TS, turbidity, color, TOC, DOC, BOD, COD, NO3-N, NO3, chloramine, HS-, O3, CLD, Chl-a, BTX, UV254, fingerprints, spectral alarms, and temperature.

Online UV-Vis Spectrometer Features

  • Measuring principle: UV-V is spectrometry over the total range (190-750 nm)
  • Webserver onboard – IoT enabled
  • No user software is needed to configure the probe
  • Communicates directly with your mobile device via WLAN
  • Unlimited number of parameters possible
  • 8 GB onboard memory – capacity for logging data for many years
  • Improved optical performance – revolutionary precision
  • Fast measurement interval – 10 seconds
  • Extremely power efficient – sleep mode for low energy consumption
  • Multiparameter probe with 1 mm, 5 mm, or 35 mm optical path length, ideal for wastewater, surface water, and drinking water
  • Long term stable and maintenance-free in operation
  • Factory precalibrated, local multi-point calibration possible
  • Automatic cleaning with compressed air or brush/ruck::sack

Waste-Water Datasheet
Drinking-Water Datasheet

Description

Spectro::lyser V3 Technical Specification

Measuring principle UV-V is spectrometry 190 – 750 nm
Measuring principle detail Xenon flash lamp
Pixel Array Detector
Measurement interval 10 sec (configurable)
Automatic cross sensitivities Turbidity | Solids | Organic substances
Precalibrated ex-works All parameters
Accuracy standard solution (>1 mg/l) NO3-N : +/- 2% +1/OPL [mg/l]*
COD-KHP : +/-2% +10/OPL [mg/l]*
(* OPL – Optical Path Length in mm)
Access to raw signals Access to spectral information
Reference standard Distilled Water
Integrated Temperature Sensor 0 – 45 °C
Temperature Sensor Resolution 0.1 °C
Integration via Con::cube V3
Con::nect V3
Con::lyte V5 (D-320-pro2)
Adapter cable (C-32-V3)
Power supply 10 – 18 VDC
Power consumption (typical) 3 W
Power consumption (sleep mode) 60 mW
Power consumption (max.) 20 W
Interface to s::can terminals M12 RSTS 8Y | IP67
RS485

Ethernet
Interface to third party terminals Con::nect V3 incl. Modbus RTU
REST API
Modbus TCP|IP
Digital interface (for cleaning devices) 1 digital in
1 digital out
Network connection 100 Base-T Ethernet | WLAN
Status information RGB LED ring

Additional Specifications

Internal sensors Supply voltage sensor
Tilt sensor
Rotation sensor
Cable length 1 m fixed cable (-010) |
7.5 m fixed cable (-075)
15 m fixed cable (-150)
Cable type PU jacket
Housing material Stainless steel 1.4404
Window material OPL 5 and 1 mm: sapphire
OPL 35 mm: fused silica (UV-grade)
Weight (min.) 3.4 kg (incl. cable)
Dimensions (Ø x l) OPL 35 mm :
44 x 473 mm | 517.5 mm
OPL 5 mm :
44 x 457 mm | 501.5 mm
OPL 1 mm:
44 x 453 mm | 497.5 mm
Operating temperature 0 – 45 °C
Operating pressure 0 – 3 bar
High-pressure specification 10 bar
Installation / mounting Submersed | in a flow cell
Flow velocity 3 m/s (max.)
Mechanical stability 30 Nm
Ingress protection class IP68
Automatic cleaning Media: compressed air |
auto brush
Permissible pressure : 3 – 6 bar
Storage temperature -10 – 65 °C
Conformity – environmental testing EN 60721-3
Conformity – EMC EN 61326-1
Conformity – RoHS 2 EN 50581
Standard warranty 2 years
Extended warranty (optional) 3 years

Drinking-Water Specification

Groundwater
parameter
turbidity [NTU/FTU] color (app) [Hazen] color (tru) [Hazen] TOC
[mg/l]
DOC
[mg/l]
NO3
[mg/l]
UV254
[Abs/m]
UV254 f
[Abs/m]
BTX
[mg/l]
H2S
[mg/l]
part number
spectro::lyserTM V3
(35 mm OPL, UV-Vis)
min. 0 0 0 0 0 0 0 0 0 0 SP3-1-35-NO-xxx
max. 170 500 300 20 15 88 71 60 51 5



Surface water
parameter
TSS
[mg/l]
turbidity [NTU/FTU] color (app) [Hazen] color (tru) [Hazen] TOC
[mg/l]
DOC
[mg/l]
BOD
[mg/l]
COD
[mg/l]
COD f
[mg/l]
NO3
[mg/l]
HS-
[mg/l]
Chl-a [µg/l] UV254
[Abs/m]
UV254 f
[Abs/m]
BTX
[mg/l]
part number
spectro::lyserTM V3
(35 mm OPL, UV-Vis)
min. 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 SP3-1-35-NO-xxx
max. 170 200 500 300 30 25 42 71 42 66 5 100 71 60 51
spectro::lyserTM V3
(5 mm OPL, UV-Vis)
min. 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 SP3-1-05-NO-xxx
max. 1200 1400 3500 2100 210 180 300 500 300 460 35 700 500 420 360



Drinking water
parameter
turbidity [NTU/FTU] color (app) [Hazen] color (tru) [Hazen] TOC
[mg/l]
DOC
[mg/l]
NO3
[mg/l]
chloramine [mg/l] O3
[mg/l]
CLD
[mg/l]
UV254
[Abs/m]
UV254 f
[Abs/m]
part number
spectro::lyserTM V3
(35 mm OPL, UV-Vis)
min. 0 0 0 0 0 0 0 0 0 0 0 SP3-1-35-NO-xxx
max. 170 500 300 22 17 88 42 25 22 71 60

Waste-Water Specification


Municipal WWTP influent & sewer
parameter
TSS
[mg/l]
color (app) [Hazen] color (tru) [Hazen] TOC
[mg/l]
DOC
[mg/l]
BOD
[mg/l]
COD
[mg/l]
COD f
[mg/l]
NO3-N
[mg/l]
HS-
[mg/l]
UV254
[Abs/m]
UV254 f
[Abs/m]
part number
spectro::lyserTM V3
(1 mm OPL, UV-Vis)
min. 0 0 0 0 0 0 0 0 0 0 0 0 SP3-1-01-NO-xxx
max. 8000 23000 14000 3300 2600 5300 10000 5300 100 80 3300 2800
spectro::lyserTM V3
(5 mm OPL, UV-Vis)
min. 0 0 0 0 0 0 0 0 0 0 0 0 SP3-1-05-NO-xxx
max. 1200 3500 2100 500 400 800 1500 800 16 12 500 420



Municipal WWTP aeration
parameter
TS
[g/l]
COD f
[mg/l]
NO3-N
[mg/l]
UV254
[Abs/m]
UV254 f
[Abs/m]
part number
spectro::lyserTM V3
(1 mm OPL, UV-Vis)
min. 0 0 0 0 0 SP3-1-01-NO-xxx
max. 20 530 26 3300 2800



Municipal WWTP influent
parameter
TSS
[mg/l]
turbidity [NTU/ FTU] color (app) [Hazen] color (tru) [Hazen] TOC
[mg/l]
DOC
[mg/l]
BOD
[mg/l]
COD
[mg/l]
COD f
[mg/l]
NO3-N
[mg/l]
O3
[mg/l]
UV254
[Abs/m]
UV254
f [Abs/m]
part number
spectro::lyserTM V3
(1 mm OPL, UV-Vis)
min. 0 0 0 0 0 0 0 0 0 0 0 0 0 SP3-1-01-NO-xxx
max. 4000 8000 23000 14000 2600 2000 2000 3300 2000 300 1200 3300 2800
spectro::lyserTM V3
(5 mm OPL, UV-Vis)
min. 0 0 0 0 0 0 0 0 0 0 0 0 0 SP3-1-05-NO-xxx
max. 600 1200 3500 2100 400 300 300 500 300 45 180 500 420



Paper mill WWTP influent
parameter
TSS
[mg/l]
COD
[mg/l]
COD f
[mg/l]
NO3-N
[mg/l]
UV254
[Abs/m]
UV254 f
[Abs/m]
part number
spectro::lyserTM V3
(1 mm OPL, UV-Vis)
min. 0 0 0 0 0 0 SP3-1-01-NO-xxx
max. 8000 13000 11000 100 3300 2800
spectro::lyserTM V3
(5 mm OPL, UV-Vis)
min. 0 0 0 0 0 0 SP3-1-05-NO-xxx
max. 1200 2000 1700 16 500 420



Paper mill WWTP effluent
parameter
TSS
[mg/l]
COD
[mg/l]
COD f
[mg/l]
NO3-N
[mg/l]
UV254
[Abs/m]
UV254 f
[Abs/m]
part number
spectro::lyserTM V3
(1 mm OPL, UV-Vis)
min. 0 0 0 0 0 0 SP3-1-01-NO-xxx
max. 4000 5300 3300 100 3300 2800
spectro::lyserTM V3
(5 mm OPL, UV-Vis)
min. 0 0 0 0 0 0 SP3-1-05-NO-xxx
max. 600 790 490 16 500 420



Brewery WWTP influent
parameter
TSS
[mg/l]
COD
[mg/l]
COD f
[mg/l]
NO3-N
[mg/l]
UV254
[Abs/m]
UV254 f
[Abs/m]
part number
spectro::lyserTM V3
(1 mm OPL, UV-Vis)
min. 0 0 0 0 0 0 SP3-1-01-NO-xxx
max. 13000 60000 53000 100 3300 2800
spectro::lyserTM V3
(5 mm OPL, UV-Vis)
min. 0 0 0 0 0 0 SP3-1-05-NO-xxx
max. 2000 9000 7900 16 500 420



Dairy WWTP influent
parameter
TSS
[mg/l]
COD
[mg/l]
COD f
[mg/l]
NO3-N
[mg/l]
UV254
[Abs/m]
UV254 f
[Abs/m]
part number
spectro::lyserTM V3
(1 mm OPL, UV-Vis)
min. 0 0 0 0 0 0 SP3-1-01-NO-xxx
max. 8000 33000 16000 210 3300 2800
