Handheld Ultrasonic Flow Meter Overview

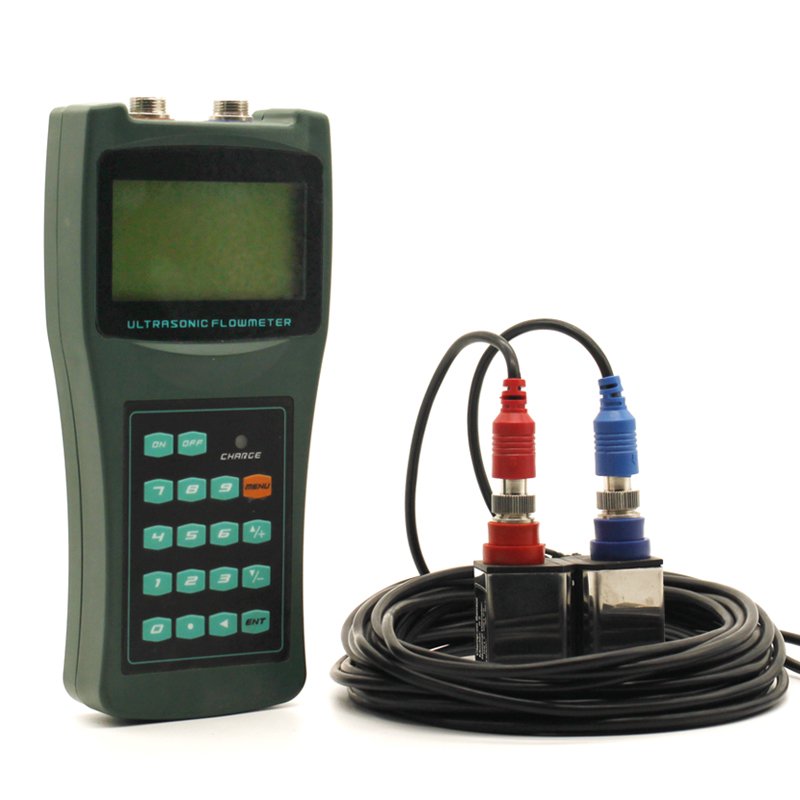

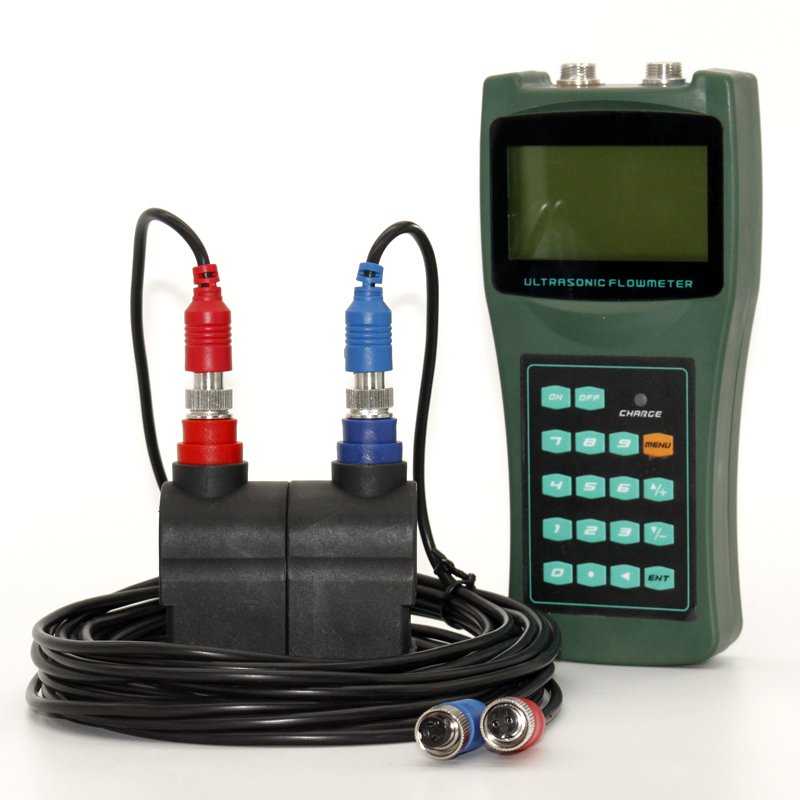

The Handheld Ultrasonic Flow Meter QTFM realizes non-contact measurement of liquid flow, simply install the sensor on the outer wall of the pipeline to complete the flow measurement. The instrument has characteristics of being small-sized, making it convenient carrying and it gives out an accurate measurement.
Handheld Ultrasonic Flowmeter Principle Working: The time-transit measurement principle is adopted, the signal transmitted by one flow meter transducer passes through the pipe wall, the medium, and the other side pipe wall, and is received by another flow meter transducer. At the same time, the second transducer also transmits the signal received by the first transducer. With the influence of the medium flow rate, there is a time difference, and then the flow value Q can be obtained.

Handheld Ultrasonic Flow Meter Applications

This flow meter is widely used in tap water, heating, water conservancy, metallurgy chemical, machinery,  energy, and other industries. It can be used for production monitoring, flow verification, temporary detection, flow inspection, water meter balance debugging, heating network balance debugging,energy-saving monitoring, and it is a necessary tool and meter for timely flow detection.

Description

Handheld Ultrasonic Flow Meter Technical Specifications

Linearity 0.5%


Repeatability 0.2%


Accuracy ±1% of reading at rates > 0.2 mps


Response Time 0-999 secs


Velocity ±32 m/s


Pipe Size DN15mm-6000mm


Rate Units Meter | Feet | CubicMeter | Liter
Cubic Feet | USA Gallon | Imperial Gallon
Oil Barrel | USA Liquid Barrel | Imperial Liquid Barrel
Million USA Gallons


Totalizer 7-digit totals for net Positive and Negative flow respectively


Liquid Types Virtually all liquids


Security Setup values Modification Lockout
Access code needs unlocking


Display 4×8 Chinese characters
4×16 English letters


Communication Interface RS-232C | Baud-rate: from 75 to 57600.


Transducers Model M1 for standard
Other 3 models for optional


Transducer Cord Length Standard 2×5 meters
Optional 2x 10 meters


Power Supply 3 AAA Ni-H built-in batteries.
Over 10 hours of operation.
100V-240VAC for the charger


Data Logger Built-in data logger can store over 2000 lines of data


Manual Totalizer 7-digit press-key-to-go totalizer for calibration


Housing Material ABS


Case Size 100 x 66 x 20mm


Handset Weight 514g (1.2 lbs) with batteries


Handheld Ultrasonic Flow Meter Transducers

Type Specification Measuring range Temperature range
Clamp-on type Small-size DN20mm~DN100mm -30℃ ~ 90℃
Middle- size DN50mm~DN700mm -30℃ ~ 90℃
High-temperature
Clamp-on type
Small-size DN20mm~DN100mm -30℃ ~ 160℃
Middle- size DN50mm~DN700mm -30℃ ~ 160℃

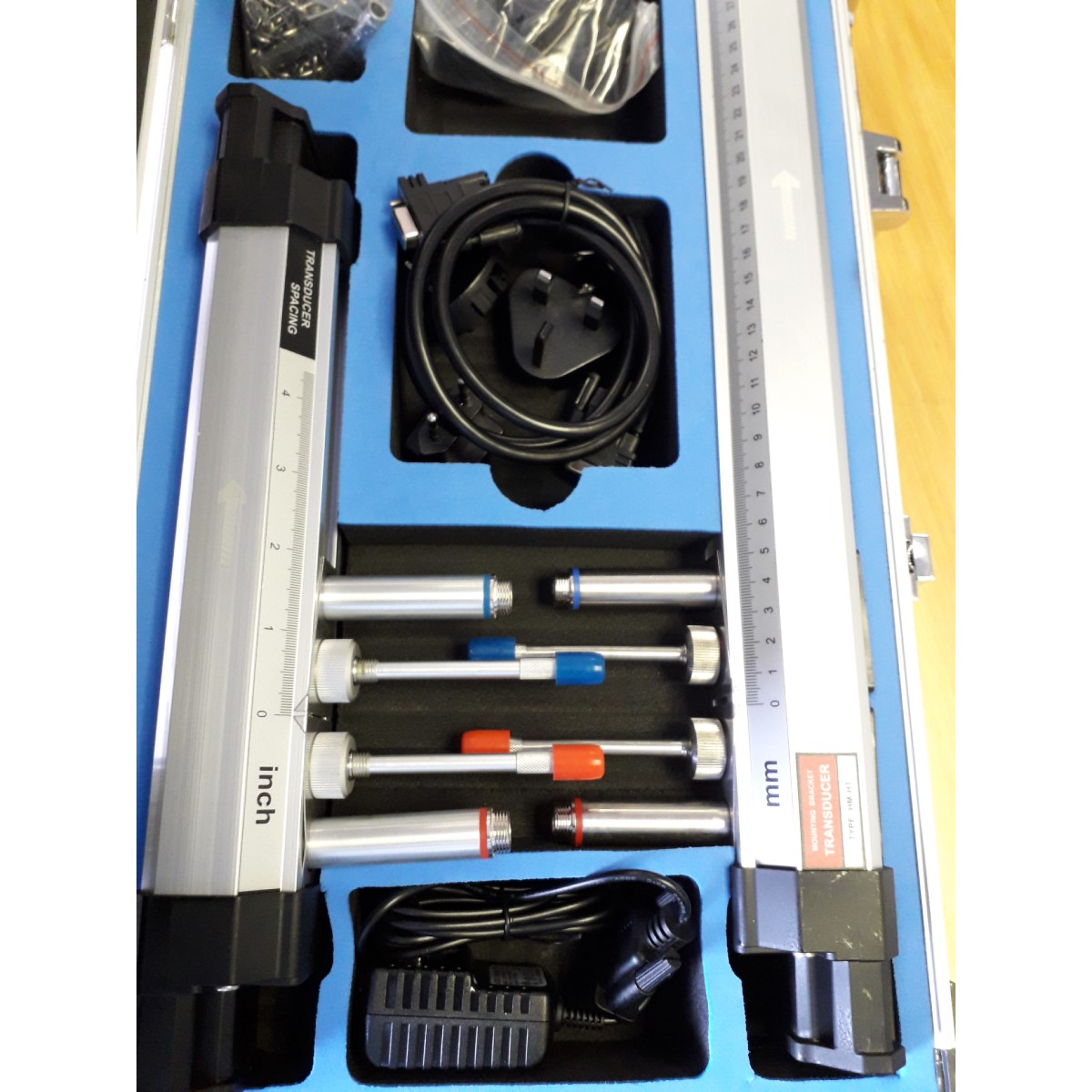

Mounting Bracket
Clamp-On
Small-size DN20mm~DN100mm -30℃ ~ 90℃
Middle- size DN50mm~DN300mm -30℃ ~ 90℃

Brand

Q&T Instrument

Additional information

Options

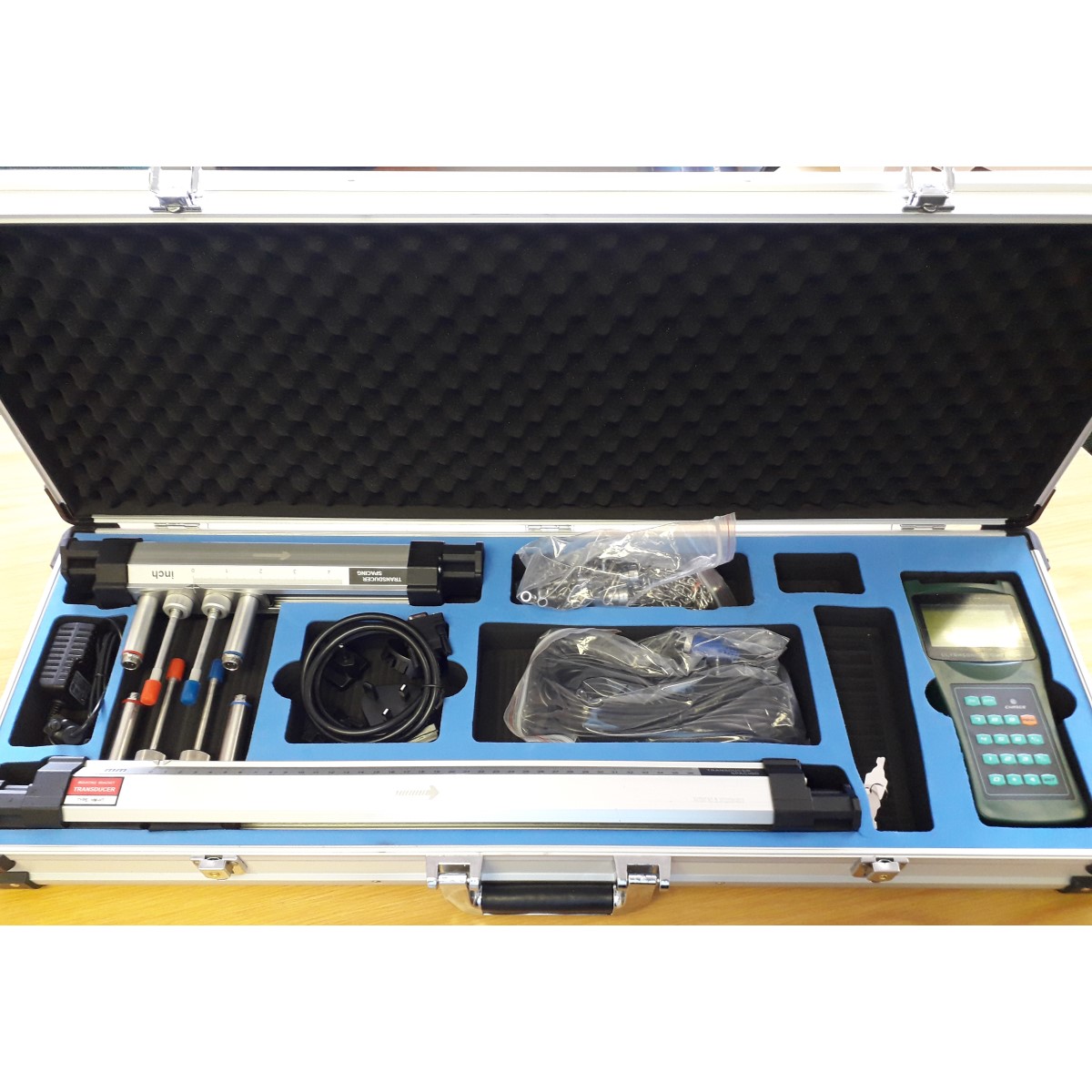

Ultrasonic Flow Meter Only, With Medium size Brackets, With Small size Brackets, Both Small and Medium size Brackets
