Turbine Flow Sensor – Overview

The Turbine Flow Sensor is engineered specifically for small pipe diameters. It provides accurate readings in : 0.3 to 3.8 lpm and 3 to 38 lpm. The injection-molded PVDF body and ceramic bearings provide excellent chemical compatibility and long service. Union piping and tubing connections along with removable NEMA 4X electronics allow for easy assembly and field replaceability. It can be used with DN8, DN10 , DN15 tubing, or DN15 piping for simple installation. End connections are available in PVDF for hose barbs, fusion socket or IR/butt fusion, and in PVC for socket or NPT thread.

Turbine Flow Sensor – Features

• Operating range of 0.38 to 38 lpm (0.10 to 10 U.S. gpm)
• Easy assembly
• Easy field replaceability
• Non-magnetic turbine
• Union ends for various connector types
• End connector kits for rigid or flexible tubing or DN15 pipe
• Superior chemical compatibility -PVDF & ceramic wetted parts
• For both clear and opaque fluids
• Small and compact design
• 4.6 m cable

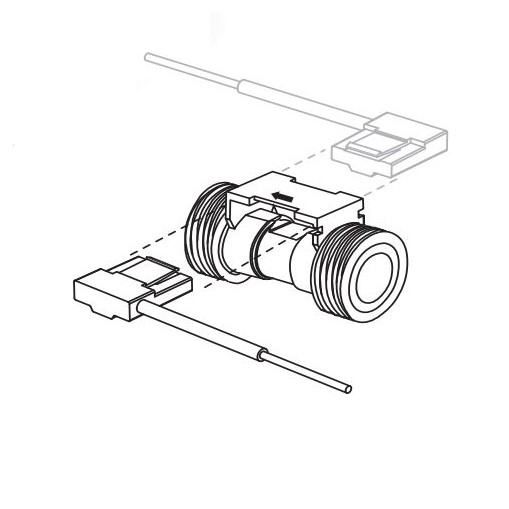

• Removable electronics that install from either side of the sensor
