ORP Sensor | redo::lyser

ORP Sensor redo::lyser

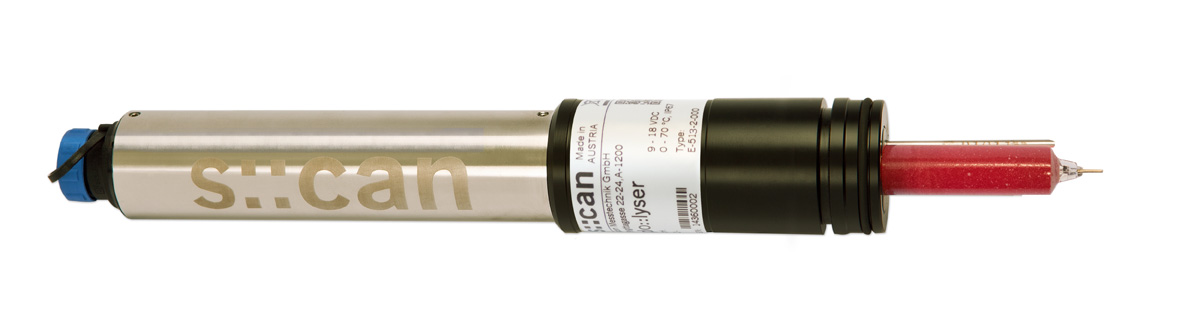

s:can ORP sensors horizontal image

ORP Sensor | redo::lyser

Price range: R24,399.00 through R36,940.00

ORP Sensor Overview | redo::lyser

The redo::lyser is a stable and virtually maintenance-free ORP sensor for online measuring of the redox potential immersed in the medium or in a flow cell. Thanks to ground-breaking reference electrodes, high precision is guaranteed in virtually any medium under the harshest conditions. It is pre-calibrated ex-works and is immediately ready for use.

redo::lyser eco monitors ORP & temperature
redo::lyser pro: high-temperature range

ORP Sensor Features

  • s::can plug & measure
  • factory pre-calibrated
  • unique, non-porous / non-leaking combined reference electrode
  • multi-parameter sensor
  • maintenance free in operation
  • long term stability
  • mounting and measurement directly in the media (InSitu) or in Bypass
  • operation via s::can terminals & s::can software

Datasheet Drinking Water

Datasheet Waste Water

Clear
SKU: N/A Category: Tags: , , , ,

Description

ORP Sensor | redo::lyser

technical specification
measuring principle potentiometric
measuring principle detail combined, non-porous reference electrode
measuring range application -2000 mV … +2000 mV
resolution 1 mV
accuracy (standard solution) =+/– 10 mV
response time 30 … 0 sec.
integrated temperature sensor 0 … 90 °C
integration via con::cube con::lyte con::nect
power supply 9 – 18 VDC
power consumption (typical) 0.8 W
power consumption (max.) 1 W
interface to s::can terminals sys plug (IP67), RS485
cable length 7.5 m fixed cable (-075) or plug connection (-000)
housing material stainless steel 1.4404/1.4401, POM-C
weight (min.) 400 g
dimensions (Ø x l) 33 x 257 mm
operating pressure 0 … 10 bar
installation / mounting submersed or in a flow cell
process connection quick connect
flow velocity 0.01 m/s (min.) 3 m/s (max.)
automatic cleaning media: compressed air permissible pressure: 3 … 6 bar cleaning interval: depending on application
conformity – EMC EN 61326-1
conformity – safety EN 61010-1
operating temperature (eco) 0 … 70 °C
operating temperature (pro) 0 … 90 °C
storage temperature (electrode) -5 … 30 °C
storage temperature (sensor) -10 … 60 °C
protection class (-000) IP67
protection class (-075) IP68



municipal WWTP influent
concentration ranges and sensor/probe type for this application
redox [mV] temperature
[°C]		 part number
redo::lyser pro (ORP, temp) min. -2000 0 E-513-3-000 / -075
max. 2000 80



municipal WWTP aeration
concentration ranges and sensor/probe type for this application
redox [mV] temperature
[°C]		 part number
redo::lyser pro (ORP, temp) min. -2000 0 E-513-3-000 / -075
max. 2000 80



municipal WWTP effluent
concentration ranges and sensor/probe type for this application
redox [mV] temperature
[°C]		 part number
redo::lyser eco (ORP, temp) min. -1000 0 E-513-2-000 / -075
max. 1000 60



drinking water
concentration ranges and sensor/probe type for this application
Redox[mV] temperature[°C] part number
redo::lyser eco min. -500 0 E-513-2-000 / -075
(ORP, temp) max. 500 50



surface water
concentration ranges and sensor/probe type for this application
Redox[mV] temperature[°C] part number
redo::lyser eco min. -1000 0 E-513-2-000 / -075
(ORP, temp) max. 1000 60

ORP Sensor | redo::lyser

Additional information

Options

redo::lyser eco, incl. 7,5 m fixed cable, redo::lyser eco, with plug connection, redo::lyser pro, incl. 7,5 m fixed cable, redo::lyser pro, with plug connection

Brand

s::can
