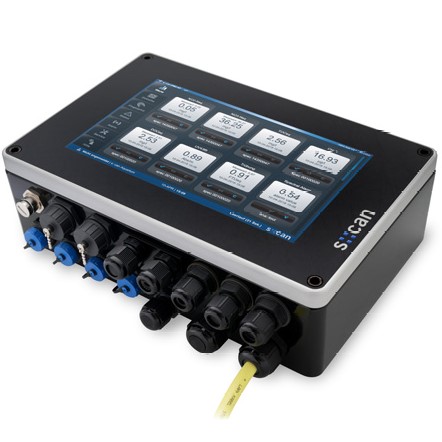

Con::cube VS3 – Overview

The Con::cube VS3 has the newest processor technology. It’s a compact, versatile terminal for data acquisition and station control. It has very flexible options for interfacing with SCADA or any central database systems,  making the Con::cube together with moni::tool a powerful terminal for compact station control.

Con::cube VS3 – Features

• High-end IoT (Internet of Things) terminal based on an industrial PC, IP65
• Widescreen 9″ colour graphic display and touchscreen
• Highly intuitive use, informative visualisation & easy operation
• Sensor and station management of up to 64 parameters
• Easy data transfer via USB-stick
• Low power operation with less than 3 watts -@ 15 min. intervals
• Wide range AC and DC variants available
• IoT (Internet of Things) and M2M (Machine to Machine) connectivity: 100 Mb/s Ethernet, 300 Mb/s WLAN, and optional worldwide WCDMA 4G interface, remote control (HTTP), and data transfer into “Cloud” via FTP, SSH, and TML
• Process interface to SCADA via Modbus RTU/TCP, SDI-12, Profibus DP, analogue 0/4-20 mA, and relay outputs (state)
• Integration of third-party sensors via analogue 0/4-20 mA and digital (solid-state) inputs, Modbus RTU/TCP
• Easily extendable
• All moni::tool features available:
  • 8 slots to customize I/Os
  • moni::tool software pre-installed
  • Additional features like online data validation and event detection optional
