High Pressure Liquid Flow Meter – Overview

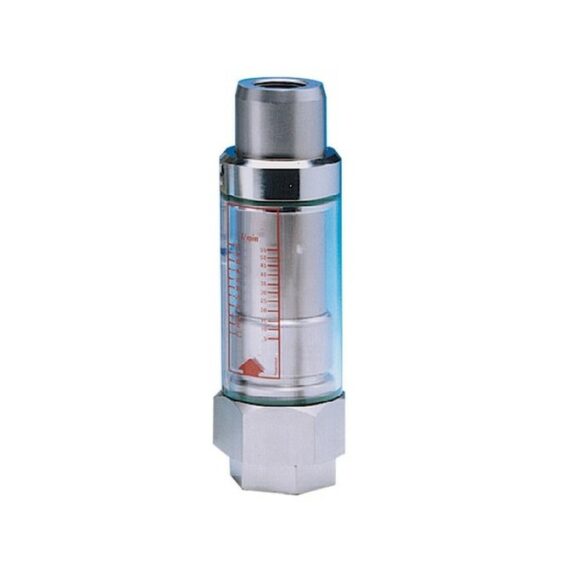

This metal-bodied flow meter functions using a spring-loaded orifice moving over a tapered cone, creating a variable area flow meter. The flow is indicated by a magnetic follower ring under a scale on an external glass tube. The flow reading is independent of viscosity up to 200 cs. Suitable for water or oil.

High Pressure Liquid Flow Meter – Features

• Works in any orientation
• Pressure up to 350 bar (5000 psi)
• Accuracy ±5% FSD
• Repeatability ±1% FSD
• Direct reading
• Relatively insensitive to viscosity changes
• Oil or water calibrated
