Domestic Brass Multi-jet Water Meter | Hot

Domestic Brass Multi-jet Water Meter Hot

Domestic Brass Multi-jet Water Meter | Hot

Domestic Brass Multi-jet Water Meter – Overview

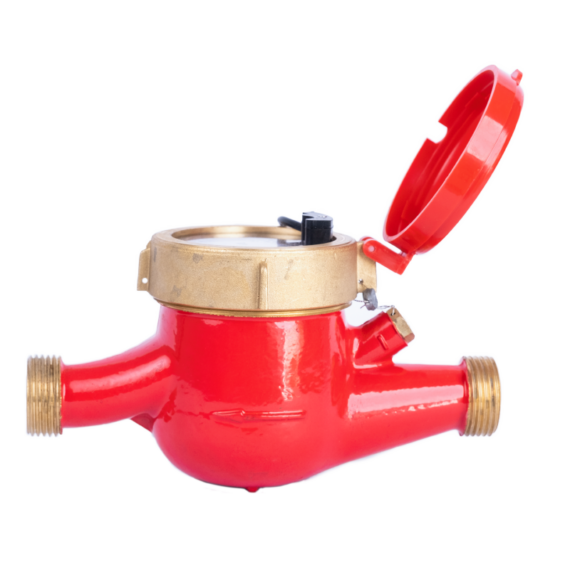

The Domestic Brass Hot Water Meter comes in 15mm and 20mm. It is 165mm long and is fitted with a removable strainer. It has a sealed dry dial counter registering in m³. The meter is pulse ready (1 pulse per 10 litres). Temperature rating up to 90 deg C. Conforms with Class B requirements and specifications (SANS 1529-1: 2019).

Domestic Brass Multi-jet Water Meter  – Features

  • 15mm or 20mm
  • up to 90 deg. C
  • Removable strainer
  • Dry Dial Counter
  • Pulse Ready
  • Conforms to Class B requirements
SKU: Domestic Brass Multi-jet Water Meter Hot Category: Tag:

Description

Domestic Brass Multi-jet Water Meter | Hot

METER SIZE 15 20
Maximum Flowrate qs ± 2% (m³/h) 3 5
Nominal Flowrate qp ± 2% (m³/h) 1.5 2.5
Transitional Flowrate qt ± 2% (ℓ/h) 120 200
Minimum Flowrate q min ± 5% (ℓ/h) 30 50
Maximum Working Pressure (kPa) 1600 1600
Maximum Test Pressure (kPa) 4800 4800
Body Length (mm) 165 165
Pulse Output (ℓ) 1 or 10 or 100 or 1000
1 or 10 or 100 or 1000

Domestic Brass Multi-jet Water Meter | Hot

Brand

Royce Water Systems
