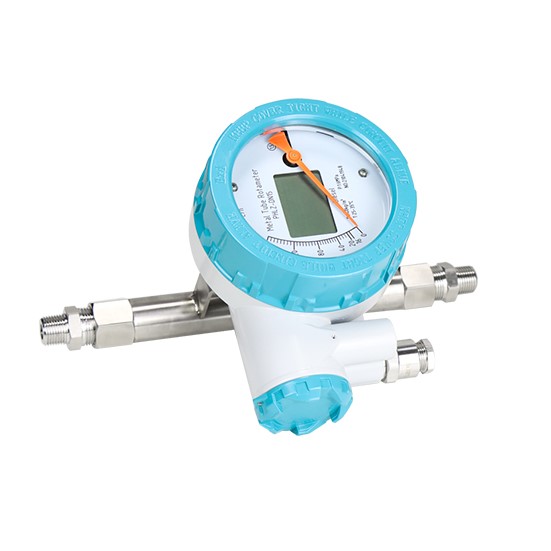

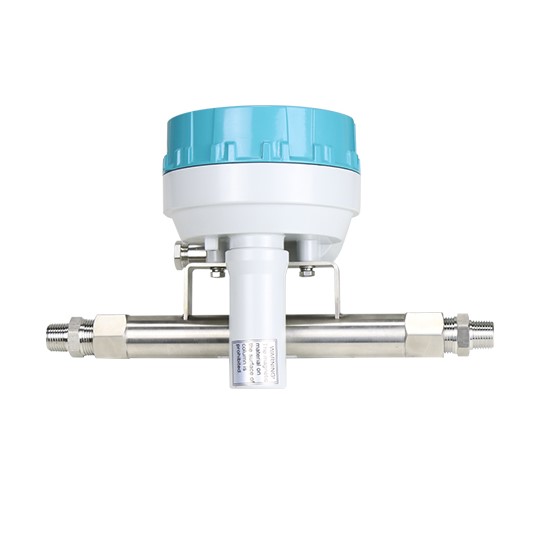

Digital Vertical Metal Tube Rotameter – Overview

This Rotameter is a variable area flow measuring instrument. The 16-bit microprocessor and high-quality components in the instrument ensure excellent performance of the flowmeter in various kinds of applications. The 304/316 stainless steel structure can be used to measure the flow of liquid, gas, and steam. It is especially suitable for measurement of low flow rate, microflow range, high temperature, high pressure, corrosive, conductive or non-conductive mediums. Applications include petrochemicals, chemicals, food and bev, water treatment and other industries.

Digital Vertical Metal Tube Rotameter – Features

  • Range ratio: 10:1(Special type 20:1)
  • Accuracy class: 2.5(Special type 1.5% or 1.0%)
  • Working pressure: DN15~DN50 PN16 (Special type 2.5MPa)
  • Medium temperature: Normalized type -80℃~+220℃
  • Ambient temperature: -40℃~+120℃(Remote display without LCD≤85℃)
  • Double indication system
  • Separation of magnetic coupling and magnetic signals
  • Double-line liquid crystal digital display
  • Bore diameter of the measuring tube of the flowmeter is complete
  • Resistance to high temperature and high pressure
  • Good protection and explosion-proofing performance
  • Full series of installation pattern
  • Various kinds of power supply patterns
  • Highly integrated circuit
  • Systematical software function and standard Hart communication pattern







SKU: QTLZ Male Thread Category: Tags: , ,

Description

Digital Vertical Metal Tube Rotameter | QT Male Thread

Table 1: Vertical Display Variable Area Flowmeter Data Sheet

Measuring range  Water (20℃)                  16~150000 l/h

Air(0.1013MPa 20℃)       0.5~4000 m3/h
 Range ratio  10:1(Special type 20:1)
 Accuracy class  2.5(Special type 1.5% or 1.0%)
 Working pressure  DN15~DN50 PN16 (Special type 2.5MPa)

DN80~DN150 PN10 (Special type 1.6MPa)

Pressure rating of jacket 1.6MPa
 Medium temperature  Normalized type -80℃~+220℃

High-temperature type 300℃   Lined with FEP type ≤85℃
 Ambient temperature  -40℃~+120℃(Remote display without LCD≤85℃)

(Remote display with LCD≤70℃)
 Dielectric viscosity  1/4” NPT, 3/8” NPT 1/2” NPT≤5mPa.s

3/4” NPT,1” NPT ≤250mPa.s
 Output  Standard signal: two-wire system 4 ~ 20mA (with HART communication)

Standard signal: three-wire system 0 ~ 10mA

Alarm signal:

1. Two-way relay output

2. One-way or two-approach switches

Pulse signal output: 0-1KHz isolated output
 Process connection  Standard type:24VDC±20%

AC type:220VAC(85~265VAC) (optional)
 Connection mode  Flange

Thread

Tri-clamp
 Levels of protection  IP65/IP67
 Ex-mark  Intrinsically safe: ExiaIICT3~6    Exd type: ExdIICT4~6

Table 2: Vertical Display Variable Area Flowmeter Flow Range

Calibre

(mm)

 Work number Flow range Pressure loss kpa
Water L/h Air m3/h Water Kpa Air
Normal type Anti-corrosion type Normal type
Anti-corrosion type		 Normal type Anti-corrosion type
15 1A 2.5~25 — 0.07~0.7 6.5 – 7.1
1B 4.0~40 2.5~25 0.11~1.1 6.5 5.5 7.2
1C 6.3~63 4.0~40 0.18~1.8 6.6 5.5 7.3
1D 10~100 6.3~63 0.28~2.8 6.6 5.6 7.5
1E 16~160 10~100 0.48~4.8 6.8 5.6 8.0
1F 25~250 16~160 0.7~7.0 7.0 5.8 10.8
1G 40~400 25~250 1.0~10 8.6 6.1 10.0
1H 63~630 40~400 1.6~16 11.1 7.3 14.0
25 2A 100~1000 63~630 3~30 7.0 5.9 7.7
2B 160~1600 100~1000 4.5~45 8.0 6.0 8.8
2C 250~2500 160~1600 7~70 10.8 6.8 12.0
2D 400~4000 250~2500 11~110 15.8 9.2 19.0
40 4A 500~5000 300~3000 12~120 10.8 8.6 9.8
4B 600~6000 350~3500 16~160 12.6 10.4 16.5
50 5A 630~6300 400~4000 18~180 8.1 6.8 8.6
5B 1000~10000 630~6300 25~250 11.0 9.4 10.4
5C 1600~16000 1000~10000 40~400 17.0 14.5 15.5
80 8A 2500~25000 1600~16000 60~600 8.1 6.9 12.9
8B 4000~40000 2500~25000 80~800 9.5 8.0 18.5
100 10A 6300~63000 4000~40000 100~1000 15.0 8.5 19.2
150 15A 20000~100000 — 600~3000 19.2 — 20.

Table 3: Vertical Display Variable Area Flowmeter Model Selection

QTLZ X X X X X X X X X
Indicator Code
Local indicator Z
LCD indicator with output D
Nominal diameter Code
DN15 -15
DN20 -20
DN25 -25
DN40 -40
DN50 -50
DN80 -80
DN100 -100
DN150 -150
Structure Code
Bottom-top /
Left-right (horizontal) H1
Right-left (horizontal) H2
Side-side AA
Bottom -side LA
Thread connection S
Tri-clamp M
Body material Code
304SS R4
316LSS R6L
Hastelloy C Hc4
Titanium Ti
Liner F46(PTFE) F
Monel M
Indicator type Code
Iinear indicator(pointer indication) M7
Nonlinear indicator(LCD Display) M9
Combination function(only for LCD display) Code
24VDC with 4~20mA output S
24VDC with HART communication Z
Battery power D
Additional function Code
Measuring tube with thermal preservation/heat insulation jacket T
Measure medium temperature higher than 120.C HT
Ex-proof: Code
With W
Without N
Alarm Code
One alarm K1
Two alarm K2
None N
