Precession Vortex Flowmeter | LUGB

Precession Vortex Flowmeter - Overview

This flowmeter is able to measure gas flow at low pressure, has multi-signal output and hyposensitivity flow disturbance technology. It combines the functions of gathering flow, temperature and pressure testing, and can carry out the temperature, pressure and compression factor compensation automatically. This is widely used in the measurement of natural gas, coal gasification, liquid gas, light hydrocarbon gas etc. The microprocessor has high reliability and operational precision. This leads to superior performance of flow monitoring in an inline gas pipe measurement.

Precession Vortex Flowmeter - Features
- Accuracy: 1.0~1.5%
- Repeatability: Less than 1/3 of basic error absolute value
- Working Power: 24VDC+3.6V battery power, can remove the battery
- Output Signal: 4-20mA, pulse, RS485, alarm
- Applicable Medium: All gases (except steam)
- Integrates flow probe, microprocessor, pressure and temperature sensor
- 16-bit computer chip, high integration, small volume, good performance, strong machine function
- New signal processing amplifier & unique filtration technology
- Dual-detection tech, improves detection signal strength, suppresses vibration
- LCD display - temp, pressure, instantaneous flow & accumulative flow
Read more
QUICK VIEW
Portable Ultrasonic Flow Meter | RWTT621
Price range: R33,567.00 through R38,105.00
Portable Ultrasonic Flow Meter - Overview

This full-function portable ultrasonic flow meter enables the verification of flow readings of other meters and is great for logging flow system data values over an extended period. The innovative design includes matched precision transducers and signal processing circuitry to accurately measure the flow of most liquids over a wide range of velocities. Clamp-on transducers create no wear, zero pressure loss, and do not require process interruptions to install them since they are attached to the outside of the pipe. The meter is easily transported and installed on different pipes and sites. Its portability makes it an excellent choice for measuring flows throughout the plumbing infrastructure to verify sensor pump and valve performance.

Portable Ultrasonic Flow Meter - Features
- Easy to install
- Reduced installation time and cost
- No pressure head loss
- No moving parts to maintain or replace
- BTU function is an option
- Could be used as a portable ultrasonic energy meter
- Powerful data storage
- Supports the datasheet analysis software
https://www.youtube.com/watch?v=_dzKgiFettI&t=17s

Select options
1
QUICK VIEW
Clamp-on Ultrasonic Flow Meter | RWTT811
Price range: R12,712.00 through R18,728.00
Clamp-on Ultrasonic Flow Meter - Overview

Quick and easy installation and operation. It only takes a few minutes, from the start of the installation to actual data readings. The QT811 boasts a new external clamp design, which measures the flow rate without being in direct contact with medium. Compared to traditional flow meters, this measurement method eliminates pressure loss, production loss and media contamination. This in turn saves costs in installation and labor. A variety of modes are available for setting and flexibility. Suitable for all pipe sizes in the measuring range, as well as various kinds of metal and resin pipes. It has a 256*128 LCD display and shows a wide range of information.

It can operate as an ultrasonic cooling (heat) meter/ btu meter/ energy meter to monitor and measure energy (optional).

Clamp-on Ultrasonic Flow Meter - Features
- Immediate flow rate reading on device
- Quick and easy installation
- Saves on installation and labor costs
- 256*128 LCD Display
- Suitable for metal or resin piping
- No medium contamination
- No production lost during installation
Select options
QUICK VIEW
Oil and Water Flow Meter | DS1226

Oil and Water Flow Meter- Overview

This spring-loaded variable orifice meter can be mounted in any orientation. Oil or water flow moves the orifice along a scale printed on the borosilicate glass tube, to indicate the flow rate. Independent of viscosity changes up to 200 cs. The meter body is in polyester with standard 1" BSP threads. Used for flow visualisation.

Oil and Water Flow Meter - Features
- Works in any orientation
- Oil and water calibrated
- Pressures up to 10 bar
- Flows 1 to 150 L/min
- Accuracy ±5% FSD
- Repeatability ±1% FSD
- Switches - fully adjustable flow rate signalling
Read more
QUICK VIEW

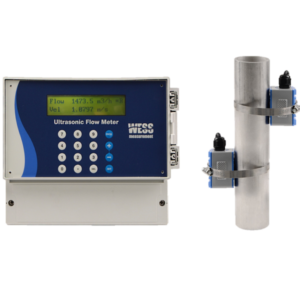

Clamp-On Ultrasonic Flow Meter | FLO100

Clamp-On Ultrasonic Flow Meter - Overview

WESS FLO100 Series is the fixed type ultrasonic transit-time flow meter for long-term flow measurement. The flow meter measures the flow rate of liquid in a closed pipe by using a pair of clamp-on sensors. WESS use its own patented technologies such as advanced signal processing and low-voltage operation to achieve high accuracy and reliable performance. The product provides versatile output interfaces, analogue and digital, which can be easily used by a PLC or a flow controller.

Clamp-On Ultrasonic Flow Meter - Features
- Positive / Negative / Net flow totalizer
- Proprietary Low-Voltage Transmission and Self-Adaptation Technologies
- No pipe Cutting or Process Interruption by Using Clamp-On Technology
- Able to Measure Electrically Conductive and Non-Conductive Liquids
Read more
