Valves

1
QUICK VIEW
Metering Ball Valve | 523

Metering Ball Valve - Overview

The advantage of this valve is the exact dosing of small quantities of media. It is suitable for small volumes in which a linear flow is required and a sudden increase in flow is not. The Metering Ball Valve Type 523 can reliably control flow even at very low flow rates for neutral and aggressive media containing a small number of particles/solids. The easy-to-read indicator and uniquely notched ball make precisely controlling media possible. Suitable for chemical processing, microelectronics, measurement and control, and water treatment.

Metering Ball Valve - Features
- 180° scale for fine adjustment
- V-notch ball specifically designed for flow control
- Easy installation and removal
- Handle with integrated tool for seat carrier adjustment and removal
Read more
QUICK VIEW
Water Park Butterfly Valve | 563

Water Park Butterfly Valve - Overview

The butterfly valve type 563 has been specially designed to fulfill aquatic and water park requirements where outstanding quality and economic valves are demanded. Wafer-style, intermediate installation butterfly valve type 563 PVC-U. With hand lever/Flange standard metric/ANSI/BS/JIS.

Water Park Butterfly Valve - Features
- Overall length according to EN 558, ISO 5752
- Connecting dimension: ISO 7005 PN 10, EN 1092 PN 10, DIN 2501 PN 10, ANSI/ASME B 16.5
- Class 150, BS 1560: 1989, BS 4504, JIS B 2220
- DN250 and DN300 only 6 bar maximum system pressure for the hand lever version
Read more
QUICK VIEW

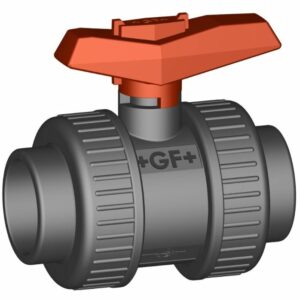

Water Treatment Ball Valve | 375

Water Treatment Ball Valve - Overview

This valve is used primarily for open/close functions and also for throttling services in water treatment and liquids with non-critical elements. The Ball Valve Type 375 is an affordable manual ball valve. Its construction ensures simple maintenance and hence a long service life. Its compact construction makes installation simple into and from the piping system. The ball valve uses a rotating ball with a hole through it that allows straight-through flow in the open position and shuts off flow when the ball is rotated 90º to block the flow passage.

Water Treatment Ball Valve - Features
- Manual valve for water applications and non-critical media
- Ergonomic hand lever
- Integrated tool for removing/adjusting the union bushing
- Simple maintenance
- Long service life
- Simple installation and removal
- Compact construction
- PTFE ball seat
- Double o-ring on the stem
- Very compact "Z" dimension
- Wide range from 16mm to 110mm and from 1/2" to 4"
Read more
QUICK VIEW
2-Way Diaphragm Valve | Type 514-519

2-way Diaphragm Valve - Overview

Diaphragm valves are used for regulating, controlling, closing, and monitoring volume flows. This is especially useful when transporting contaminated, aggressive or abrasive media. This type of valve has distinctive advantages due to its simple function and optimised design. Only the valve body and diaphragm come into contact with the medium. The valve is suitable for use with gases and liquids and can be used in any location and drained completely. Unlike other Valve Types, no pressure surges can be caused by closing the diaphragm valve. This Valve Type comes as a manually operated valve or an automatic valve.

2-way Diaphragm Valve - Features
- Complete plastic valve - no metal screws
- No corrosion in aggressive media/environment
- Constant leak-tightness
- No need to re-tighten
- Highly stable connection of upper part and valve body using buttress thread
- Maximum flow and linear characteristic curves for easier control
- Free of dead space, sealing web lies close to the pipe wall
- Durable
- Lockable
- Position Indicator
- Can be fitted with an actuator or electrical feedback unit
https://www.youtube.com/watch?v=yYOwYXnohfQ

Read more
QUICK VIEW
3-way Diaphragm Valve | Type 519

3-way Diaphragm Valve - Overview

Diaphragm valves are used for regulating, controlling, closing, and monitoring volume flows. This is especially useful when transporting contaminated, aggressive or abrasive media. This type of valve has distinctive advantages due to its simple function and optimised design. Only the valve body and diaphragm come into contact with the medium. The valve is suitable for use with gases and liquids and can be used in any location and drained completely. Unlike other valve types, no pressure surges can be caused by closing the diaphragm valve. This valve comes as a manually operated valve or an automatic valve.

3-way Diaphragm Valve - Features
- Complete plastic valve - no metal screws
- No corrosion in aggressive media/environment
- Constant leak-tightness
- No need to re-tighten
- Highly stable connection of upper part and valve body using buttress thread
- Maximum flow and linear characteristic curves for easier control
- Free of dead space, sealing web lies close to the pipe wall
- Durable
- Lockable
- Position Indicator
- Can be fitted with an actuator or electrical feedback unit
https://www.youtube.com/watch?v=yYOwYXnohfQ

Read more
1
QUICK VIEW

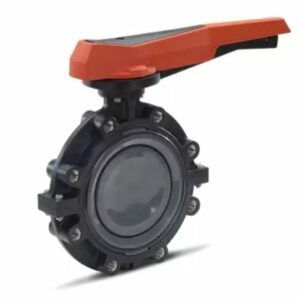

Lug Style Butterfly Valve | 578

Lug Style Butterfly Valve - Overview

The Lug style butterfly valve has all-plastic housing which combines quality and durability. Through the use of fibreglass-reinforced polypropylene, the valve's weight is greatly reduced. This simplifies not only the installation of the valve but also saves on the storage cost. The valve can be used reliably in highly corrosive applications and is excellent for use with aggressive media. The system allows the exchange of individual system components at any time - quickly and easily, without much effort. Since the actuation torque is strongly dependent on the internal pressure, type 578 is optimally designed in this area. The maximum nominal pressure is 10 bar on both sides at 20 °C. A further benefit of this is the long life span since the valve is less exposed to wear and tear.

Lug Style Butterfly Valve - Features
- Corrosion resistant
- Stable and Reliable
- Easy maintenance
- Long life span
- Minimal operation torque
- Can be fitted with an actuator (optional)
- Lever positioning clearly marked
- Can be used with electric position indicators (optional)
- Use as lugged valve with threaded bushes integrated into the housing
- Lower weight than metallic butterfly valves
- Low wear and tear: up to 50 % lower operating torque than centric valves
- Leak-tightness within and without: double, internal axis gasket on both sides
- Lockable hand lever
https://www.youtube.com/watch?v=zxaAQxm3Ycg

Read more
QUICK VIEW
Wafer Check Valve | 369

Wafer Check Valve - Overview

The type 369 Wafer Check Valve is designed especially for large installations. It requires little maintenance and is extremely compact. The design is optimised for installations between ISO/DIN as well as ANSI/BS connections. The flap traps can be installed either horizontally or vertically. When the medium flows, it opens up the plate of the flap trap, allowing the medium to flow through. The flap closes again if the medium pressure falls below a certain threshold. The flap traps of Type 369 are intended to prevent media from flowing back within the allowable pressure and temperature range. The flap traps are available with or without a return spring made of V4A or Hastelloy. This is suitable for use in water treatment and the chemical process industry.

Wafer Check Valve - Features
- Self-closing check valve
- Horizontal or vertical installation (water column/gravity / optional spring)
- Installation between both ISO/DIN and ANSI/BS connecting elements
- Simple installation
- Highly resistant materials
- Robust design
- Virtually maintenance free
- Parts that come into contact with media are highly resistant plastics and elastomers
- Optimised flange gasket made of EPDM/FKM installed in the valve housing. Suited for fluted connecting elements
- Disc seals available in EPDM/FKM and are installed in plates
- For pulsating flow, flap traps with reset spring (stainless steel V4A/Hastelloy C) available. Reduces noise development
Read more
QUICK VIEW
Flow Wet-Tap Valve | Signet 3519

Flow Wet-Tap Valve - Overview

This Valve provides a quick method of removing a sensor from the pipe under specified operating pressures. The PVC and stainless steel design of the Wet-Tap makes it resistant to corrosion and chemical attack by acids, alkalies, salt, and a number of other harsh chemicals. It mounts directly onto standard Signet installation fittings. It consists of a flange and support plate that threads onto the pipe fitting insert, and a PVC ball valve through which an extended length sensor is inserted into the pipe.

Flow Wet-Tap Valve - Features
- Highly versatile
- Chemically compatible with many liquid process applications
- Corrosion and chemical attack-resistant
- Quick solution to remove/ insert sensor
Read more
QUICK VIEW
Manual Plastic Ball Valve | 542

Manual Plastic Ball Valve - Overview

The high-quality Manual Plastic Ball Valve type 542 is available in various materials and connection options. It is ideal for use in everything from simple water applications to manual applications in demanding processes. The ball valve uses a rotating ball, with a hole through it, that allows straight-through flow in the open position and shuts off flow when the ball is rotated 90º manually to block the flow passage. This valve is primarily used for open/close functions and throttling services. Suitable for neutral or aggressive media with a small number of particles/solids. Chemically resistant.

Manual Plastic Ball Valve - Features
- Ball seats: PTFE (red lever) / PE (blue lever)
- High flow rate
- Possibility of attaching a valve marking
- Same installation length as Ball Valve Type 546 Pro
Read more
QUICK VIEW
Non-critical Water Ball Valve | 374

Non-critical Water Ball Valve - Overview

The Ball Valve Type 374 is an affordable and high quality manual valve that was developed specially for use in non-critical water applications. Its construction ensures simple maintenance and a long service life. Its compact construction is an advantage for use in confined spaces such as filtering modules. suitable for use in swimming pools, fountains, irrigation, fish farming and leisure parks.

Non-critical Water Ball Valve - Features
- Simple maintenance and long service life
- Double union for easy installation and removal
- Ergonomic hand lever with integrated tool for removing/adjusting the union bushing
- Simple installation and removal due to compact construction
- Low torque opening and closing
- Double O-ring sealing on the stem
- Very compact "Z" dimension
- Wide range from 16mm to 110mm and from 1/2" to 4"
Read more
QUICK VIEW
Plastic Manual Ball Type Valve | 543

Plastic Manual Ball Type Valve- Overview

The Plastic Manual Ball Valve 543 is the perfect valve for all diverting and mixing processes. It is available in a horizontal design (with L or T-ball) and a vertical design (with L or tripod ball). It can be used for diverting, mixing, distributing, and even shutting off a medium. It is suitable for neutral and aggressive media with small amounts of particles or solids. The chemical resistance depends on the valve material selected. Applications include the chemical process industry, microelectronics, and water processing industry.

Plastic Manual Ball Type Valve - Features
- Ideal for diverting and mixing fitting
- Dimension range DN10 – DN50
- Ball with L-port / T-port
- Lever material made of fiberglass-reinforced polypropylene
- Tool integrated into lever
- 90° end stop standard, 180° end stop on request
- Excellent flow properties
- Long-lasting
- Automation with electrical or pneumatic actuator possible
Read more
QUICK VIEW
Water Applications Butterfly Valve | 565

Water Applications Butterfly Valve - Overview

The new Butterfly Valve 565 is the best choice for optimising piping systems built for water and a wide range of other applications. It comes at a significantly lower initial cost, due to its lower weight in terms of storage and transportation. Installation is quick and easy. It is extremely durable, ensuring minimal maintenance and a long life span. The valve comes in the same installation length as metal solutions so exchanging your metal valves for plastic ones will not require any additional work on the pipes or new designs. Thanks to its low weight, a single person can lift and install a valve in just a few minutes. It's low weight therefore significantly reduces the need for costly transportation and personnel. High-performance thermoplastics protect it from abrasion and corrosion, even under harsh conditions such as water hammers. The results are a reduction of both maintenance costs and production stops. In cooling applications, the plastic solution has a clear advantage in that its condensation is much lower. With its standard interface, the valve can be upgraded with various modules, such as the smart actuator. This allows for automation and digitisation of your systems, making them even more cost-effective and efficient.

Water Applications Butterfly Valve - Features
- Up to 16 bar
- from -10℃ to +80℃
- More frost resistant
- Optional electric position indicator
- Lockable ergonomic lever
- Data-Matrix-Code
- EPDM or FKM sleeve
- Interface for flexible automation (ISO 5211)
- Standard 5° ratchet setting
- PVDF disc
- Short installation length
- Fiber reinforced housing and inner disc
- Wafer design
- 60% lighter than the metal butterfly valves
https://www.youtube.com/watch?v=qbpM28aIJSY

Read more
QUICK VIEW
Laboratory Ball Valve | 522

Laboratory Ball Valve - Overview

Suitable for laboratory applications, dosing and sample taking for neutral or aggressive media with small amounts of particles/solids in it. It is available in diameter DN6 in the materials PVC-U and PVDF, as well as with BSP or NPT thread. The various connection options and other accessories are supplied as standard. The ball valve uses a rotating ball with a hole through it that allows straight-through flow in the open position and shuts off flow when the ball is rotated 90º to block the flow passage. This valve is mainly used for open/close functions and for regulating services.

Laboratory Ball Valve - Features
- For laboratory applications
- Lock and metering ring for protection of sampling ball valve from accidental opening
- Lock and metering ring for adjustment of ball opening angles
- Sampling ball valve can be 100% opened by removing the lock and metering ring
- Compact design
- Low weight
- Corrosion resistant
- PVDF Sampling ball valve is Oil & Silicone-free
Read more
QUICK VIEW
Linear Ball Valve | 546 Linear

Linear Ball Valve - Overview

The linear ball valve type 546 offers significant control of your applications. This ball valve features all the familiar details of the 546 series but has a specially shaped ball. The carefully engineered ball enables a linear flow, even when minimal flow rates are desired. The flow characteristic is linear for the entire opening angle and can be combined with an electric actuator, making it the perfect valve for use in demanding control loops. This is particularly suitable for use as a control valve. Thanks to its linear flow characteristics, it enables uncomplicated control, even in complex processes. Its application areas are unlimited due to the variety of available materials such as PVC-U, PVC-C, PP-H, ABS and PVDF.

Linear Ball Valve - Features
- Materials: PVC-U, PVC-C, PP-H, ABS, PVDF
- Spacers maintain a constant level in the piping system
- Easier installation
- Minimal dead spaces
- Ideal control valve
- Dimension range DN15 to DN50 (½“ - 2“)
- Tool integrated into the lever
- Virtually no maintenance required
- Special ball design enables high flow values with linearly increasing flow performance
- Opening angle in percent imprinted on multi-functional module
- Automation with electric or pneumatic actuator possible
Read more
QUICK VIEW
Cone Check Valve | 561-562

Cone Check Valve - Overview

The check valve is a component that allows the flow in one direction only. The check valve design combines increased safety and efficiency with easy handling. Check valves 561 and 562 easily fit in all piping systems. The self-closing function and the silent operation of the valve support safety and comfort.

Cone Check Valve - Features
- Safe, simple and efficient
- Type 561- 100 % leak-proof at a water column of 2 m
- Type 562 guarantees 100 % leak-tightness when the valve is in idle mode
- Gasket always in fixed position. Prevents slipping, bending or washing out
- Corrosion-resistant
- Autonomous self-closing mechanism without additional energy source
- Self-cleaning design – virtually no maintenance
- Optimised flow design
- Corrosion-resistant and high-pressure rating
- Wide range of materials for optimum chemical resistance
- Self-closing
- Valve permit a far higher flow rate than standard check valves with a ball
Read more
