Description

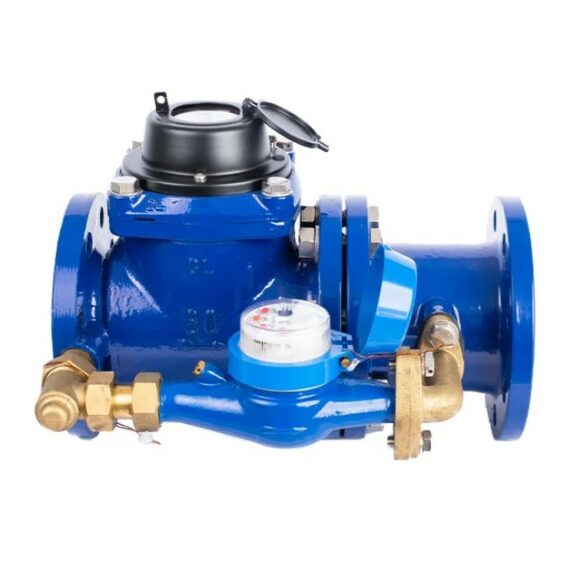

Combination Meter | WMC 50mm – 200mm
| METER SIZE (mm) |
50 X 20 |
80 X 20 |
100 X 20 |
150 X 40 |
| Max. Flowrate qs ± 2% (m³/h) |
30 |
80 |
120 |
300 |
| Permanent Flowrate qp ± 2% (m³/h) |
15 |
40 |
60 |
150 |
| Transitional Flowrate qt ± 2% (m³/h) |
0.12 |
0.2 |
0.2 |
0.8 |
| Minimum Flowrate q min ± 5% (m³/h) |
0.03 |
0.5 |
0.5 |
0.2 |
| Starting Flow (m³/h) |
|
|
|
|
| Maximum Working Pressure (kPa) |
1600 |
1600 |
1600 |
1600 |
| Body Length (mm) |
280 |
370 |
370 |
500 |
In addition, the meters offered must comply with the following: –
- Epoxy-coated cast iron body. By-pass meter must have a DZR brass body
- The main meter must be of the Woltmann WP helical vane inferential velocity type
- Meter must have the following features to facilitate convenience of on-site replacement:
(a) Pre-calibrated replaceable internal mechanisms.
(b) In Meter sizes 50 mm to 150 mm, the Helical vane to be fitted in a fully shrouded cartridge designed to direct the entire volume of water through the measuring element to ensure the body impact is negligible on the meter accuracy.
- Suitable for use with water temperatures up to 50°C and maximum working pressure of 1 600 kPa
- All internal plastic components to be constructed of virgin materials
- The meter must perform within the legal Class B accuracy specification with a straight length of pipe 10 X the diameter of the meter fitted upstream of the meter and 5 X the diameter fitted downstream of the meter
Combination Meter | WMC 50mm – 200mm
Brand
Royce Water Systems
